Removing and installing keyless go antenna - AR82.62-P-8000R

MODEL 230.4 up to 28.2.06 with CODE (889) Keyless Go

Left and right door

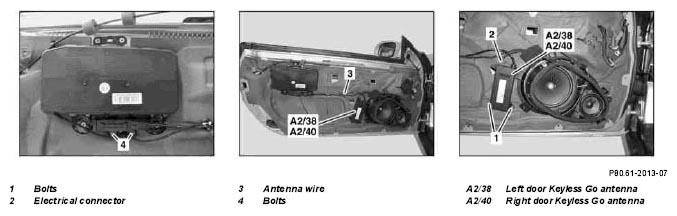

Fig 1: Identifying Keyless Go Antenna Components (Left And Right Door)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of fire and explosion caused by machining/treating magnesium components	Keep away from ignition sources and open flames.	AS60.00-Z-0006-01R
	Information on machining/treating magnesium components		AH60.00-P-0023-01R
1	Switch off the ignition and remove the transmitter key from the EIS control unit	Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (min. 2 m).
2	Remove door lining from left or right front door		AR72.10-P-1000R
3	Remove bolts (1)
4	Disconnect electrical connector (2)
5	Detach antenna line (3) from inner door panel	Installation:  Install new tie straps.
6	Remove screws (4) and remove left door Keyless Go antenna (A2/38) or right door Keyless Go antenna (A2/40)
7	Install in the reverse order
