Remove and install bracket for portable CTEL - AR82.70-P-8918RA
MODEL 230.4 as of 15.1.04 with CODE (852) Complete portable CTEL pre-installation on console with CODE (854) MB portable CTEL

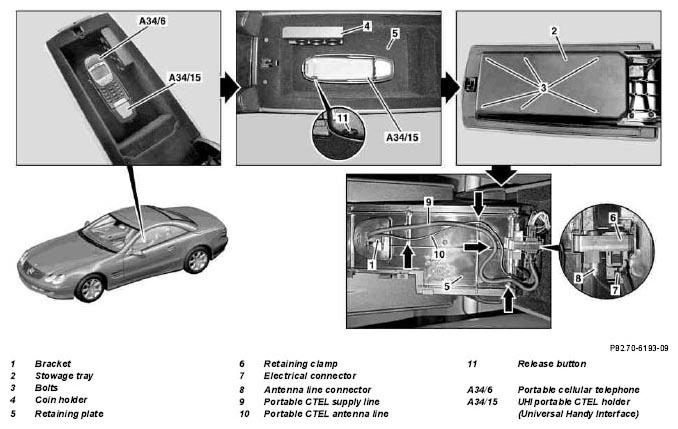

Fig 1: Identifying Portable CTEL Telephone Bracket Components (Complete Portable CTEL Pre-installation On Console)
| Remove/install | |||
|---|---|---|---|
| 1 | Remove portable CTEL (A34/6) out of UPCI (UHI) portable CTEL holder (Universal Handy Interface) (A34/15) | ||
| 2 | Press release button (11) and remove UPCI (UHI) portable CTEL holder (Universal Handy Interface) (A34/15) out of bracket (1) | ||
| 3 | Open stowage tray (2) and remove screws (3) | ||
| 4 | Remove coin holder (4) | ||
| 5 | Remove retaining plate (5) together with bracket (1) upward out of stowage tray (2) until retaining clamp (6) is accessible | ||
| 6 | Detach retaining clamp (6), remove electrical connector (7) and antenna line connector (8) from retaining plate (5) | ||
| 7 | Disconnect electrical connector (7) and antenna line connector (8) | ||
| 8 | Detach portable CTEL supply line (9) and portable CTEL antenna line (10) from catches (arrows) | ||
| 9 | Unclip bracket (1) and remove with portable CTEL supply line (9) and portable CTEL antenna line (10) from retaining plate (5) | ||
| 10 | Install in the reverse order |
