Separate rear center section - AR64.20-P-1050-01R

Fig 1: Identifying Weld Spot Miller (201 589 00 51 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Protective Mat (230 589 00 98 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Welding Bead Trap (230 589 01 98 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Expose spot welds (areas A and B).
Cut spot welds out with spot weld cutter (areas A and B).

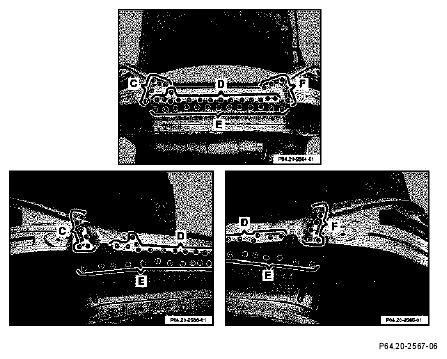

Fig 4: Identifying Welding Spots Areas
Courtesy of MERCEDES-BENZ USA
Expose spot welds (areas C, D, E and F).
Cut spot welds out with spot weld cutter (areas C, D, E and F).
Remove bottom rear center section.

Fig 5: Identifying Welding Spots Areas
Courtesy of MERCEDES-BENZ USA
Grind connection surfaces down to bare metal in shaded areas.
Grind spot welding flange down to bare metal on both sides.
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Coat inside of spot welding flanges and rivet connections with zinc dust.

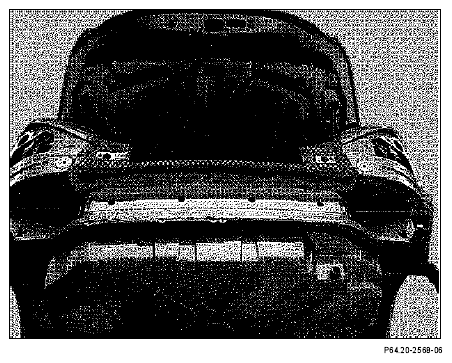

Fig 6: Identifying Shaded Areas
Courtesy of MERCEDES-BENZ USA
