Remove/install paneling on Vario roof rear section - AR68.30-P-4380R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by body parts being trapped or crushed when working on partially open Vario roof (stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | AS77.50-Z-0001-01A | |
| 1 | Move Vario roof to intermediate position and secure. | AR77.50-P-3000-01R | |

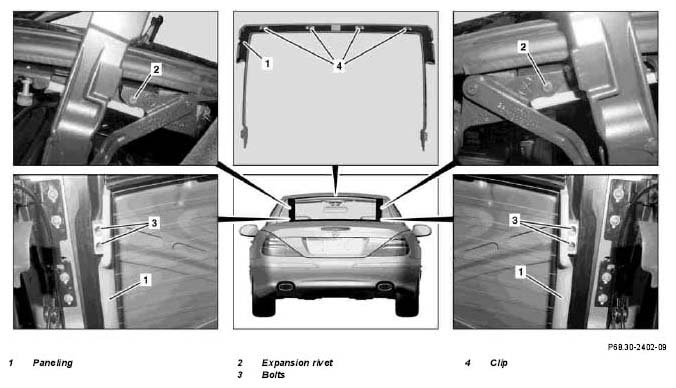

| Figure | |||
| 2 | Remove bolts (3) | ||
| 3 | Remove expansion rivets (2) | ||
| 4 | Unclip paneling (1) with door paneling release lever and remove | ||
| *WH58.30-Z-1004-19A | |||
| 5 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1004-19A | Door panel release lever |
