Remove/install fender liner in front fender - AR88.10-P-1300RBS (Black Series)
MODEL 230.4 with CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

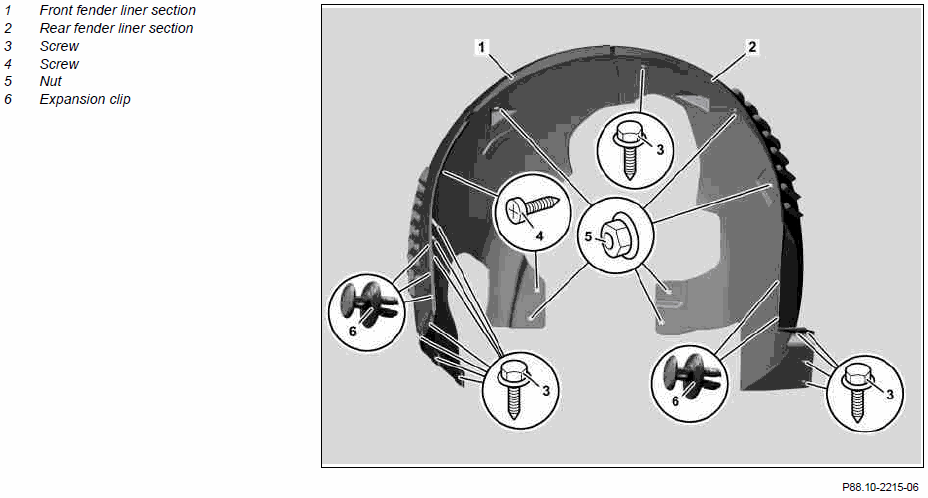

| Front fender liner section (1) | |||
| 2 | Unscrew bolts (3, 4) from front fender liner section (1) | ||
| 3 | Unscrew nuts (5) from front fender liner section (1) | ||
| 4 | Remove expansion clips (6) from front bumper | ||
| 5 | Remove fender liner front section (1) | ||
| Rear fender liner section (2) | |||
| 6 | Remove front wheel | AP40.10-P-4050Z | |
| 7 | Unscrew bolts (3) from rear fender liner section (2) | ||
| 8 | Unscrew nuts (5) from rear fender liner section (2) | ||
| 9 | Remove expansion clips (6) from longitudinal member paneling | ||
| 10 | Remove rear fender liner section (2) | ||
| 11 | Install in the reverse order |
