Keyless Go antenna component description - GF82.62-P-4099RA
MODEL 230 as of 1.3.06 with CODE (889) Keyless Go

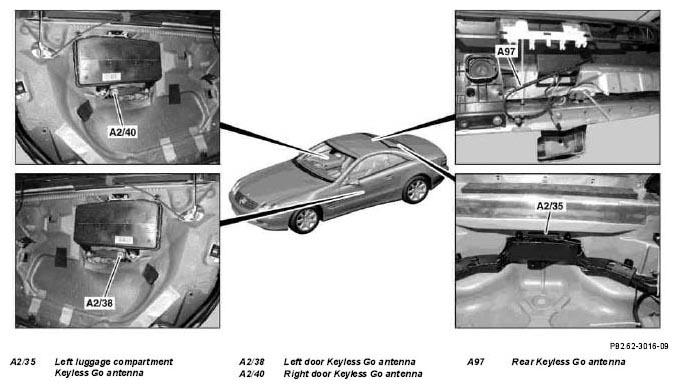

Location
The left luggage compartment Keyless Go antenna is located on the cable duct in the luggage compartment.
The left and right door Keyless Go antenna are located behind the door trim under the sidebags.
The rear Keyless Go antenna is located in the bracket in the roll bar.
Tasks
The left luggage compartment Keyless Go antenna and the left and right door Keyless Go antenna are used to transmit wake-up and localization signals for position finding and for drive authorization data exchange to the transmitter key (A8/1).
The rear Keyless Go antenna receives the wake-up and localization signals for position finding and for drive authorization data exchange and forwards them to the Keyless Go control unit (N69/5).
