E-call control unit, location/task/design - GF82.95-P-4200R: Notes

MODEL 230 with CODE (349) E-Call emergency call system with CODE (498) Japan version

MODEL 230 up to 30.6.04 with CODE (349) E-Call emergency call system with CODE (494) USA version

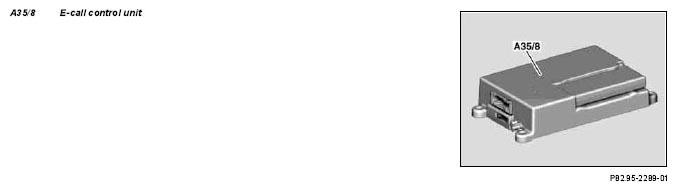

Fig 1: Identifying E-Call Control Unit
G05076352
  E-CALL control unit, location   GF82.95-P-4200-01R
  E-CALL control unit, purpose
  • EMERGENCY CALL central control
  • Calculation of vehicle position
  • Detecting a vehicle roll-over
 GF82.95-P-4200-02R
  E-call control unit design
  • Stable metal housing with 4-hole mount
  • integrated gyro sensor
  • Integrated roll-over sensor
  • Integrated GPS control unit
