EMERGENCY CALL pushbutton switch, location - GF82.95-P-4201-01R

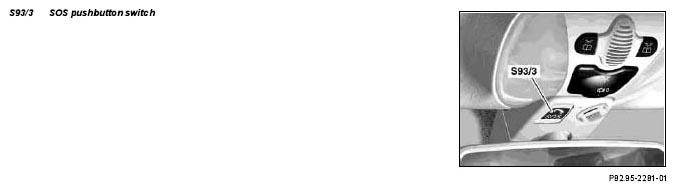

Fig 1: Identifying SOS Pushbutton Switch Location

G05076353
