CD player with changer, location/task/design/function - GF82.64-P-3113RB: Notes

MODEL 230 up to 30.6.04 with CODE (352a) COMAND operating and display system with CODE (491) U.S. version with CODE (819) 6-disk CD changer

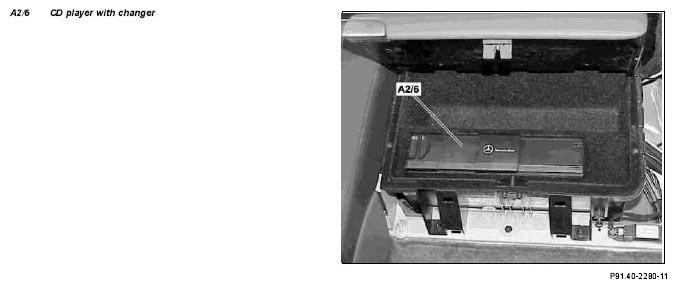

Fig 1: Identifying CD Player With Changer Location
G05075636
  CD player with changer, location The CD player with changer (A2/6) is located in the rear box behind the driver's seat
  CD player with changer, task
  • Playing audio compact discs (CD)
  • Changing CDs contained in the magazine

  CD player with changer, design
  • CD changer magazine for 6 CD's
  • Digital Data Bus (D2B) interface
  • Wake-up line

The ex-factory installation position for the CD changer is a vertical one, although it is possible to use other installation positions if the springs are adapted.
  CD player with changer, function   GF82.64-P-3113-02RB
