Remove/install loudspeaker in front footwell - AR82.62-P-7853RB
MODEL 230.4## 1# with CODE (855) TELE AID

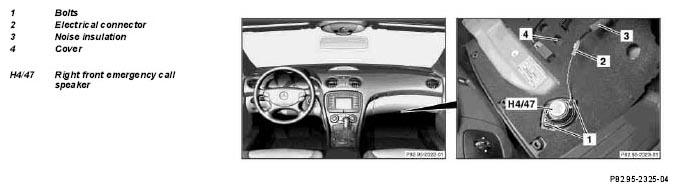

Right emergency call system speaker
| Remove/install | |||
|---|---|---|---|
| 1 | Remove right-hand cover (4) under instrument panel | AR68.10-P-1520R | |
| 2 | Carefully slide soundproofing material (3) off electrical connector (2) | ||
| 3 | Disconnect electrical connector (2) | ||
| 4 | Remove bolts (1) | ||
| 5 | Remove right front emergency call speaker (H4/47) from cover (4) under instrument panel | ||
| 6 | Install in the reverse order |
