Remove/install license plate lamps - AR82.10-P-5161RBS (Black Series)

MODEL 230.4 with CODE (P99) "AMG Black Series" special model

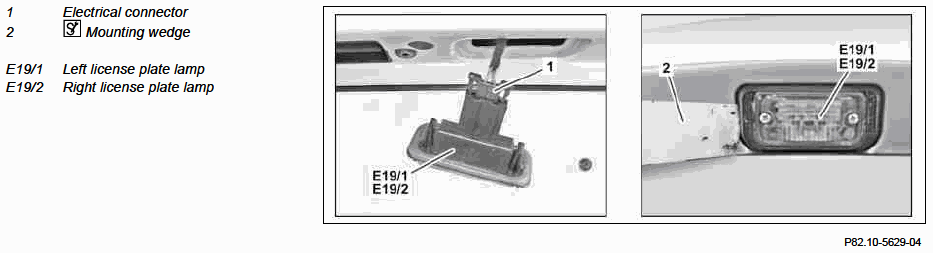

Fig 1: Removing/Installing License Plate Lamps - Black Series

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from trunk lid using assembly wedge (2)		Fig 2
2	Disconnect electrical connector (1) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2)
3	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
