Remove/install hands-free system microphone - AR82.70-P-8969R
MODEL 230.4
- with CODE (813) Voice control system (VCS [SBS])
- with CODE (852) Complete portable CTEL pre-installation on console
- with CODE (853) MB standard telephone
- with CODE (854) MB portable CTEL
- with CODE (855) TELE AID
| Remove/install | |||
|---|---|---|---|
| 1 | Remove overhead control panel control unit | AR82.20-P-1000R | |

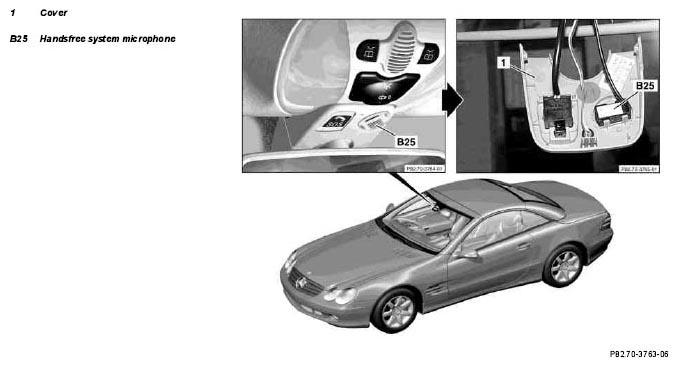

| 2 | Unclip covering (1) | ||
| 3 | Disconnect hands-free microphone connector | ||
| 4 | Unclip hands-free system microphone (B25) out of cover (1) and remove | ||
| 5 | Install in the reverse order |
