Remove/install additional turn signal lamp - AR82.25-P-4726RA

MODEL 230.4## ## as of 064521

except CODE (803) Model year 2003

except CODE (809) Model year 2009

Illustrated on left outside rearview mirror

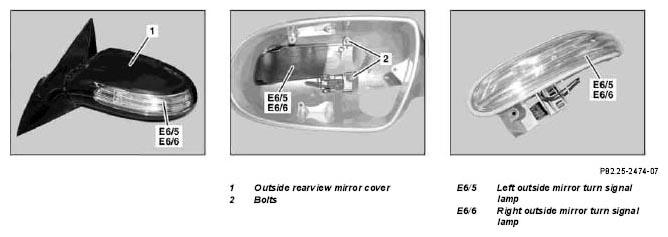

Fig 1: Identifying Additional Turn Signal Lamp Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right outside mirror trim (1)		AR88.70-P-9040RA
2	Remove bolts (2)
3	Remove the left outside mirror turn signal lamp (E6/5) or the right outside mirror turn signal lamp (E6/6) from the outside rearview mirror cover (1)
4	Install in the reverse order
