Remove/install TV tuner - AR82.85-P-7366RA
MODEL 230.4 as of 15.1.04
- with CODE (860) TV tuner
- with CODE (863) Digital/analog TV tuner
- except CODE (498) Japan version
- except CODE (P99) Special model "AMG Black Series"
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of TV tuner (A2/42) or TV combination tuner (analog/digital) (A90/1) in Star Diagnosis | When replacing TV tuner (A2/42) or TV combination tuner (analog/digital) (A90/1). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Remove side rear side paneling | AR68.30-P-4780R | |
| 3 | Switch off the ignition and remove the transmitter key from the EIS control unit | In vehicles with code (889) Keyless-Go, press the Keyless-Go start/stop button repeatedly until the ignition is switched off. Remove Keyless-Go chip card or transmitter key from vehicle and store beyond the range of the transmitter (at least 2 m). | |

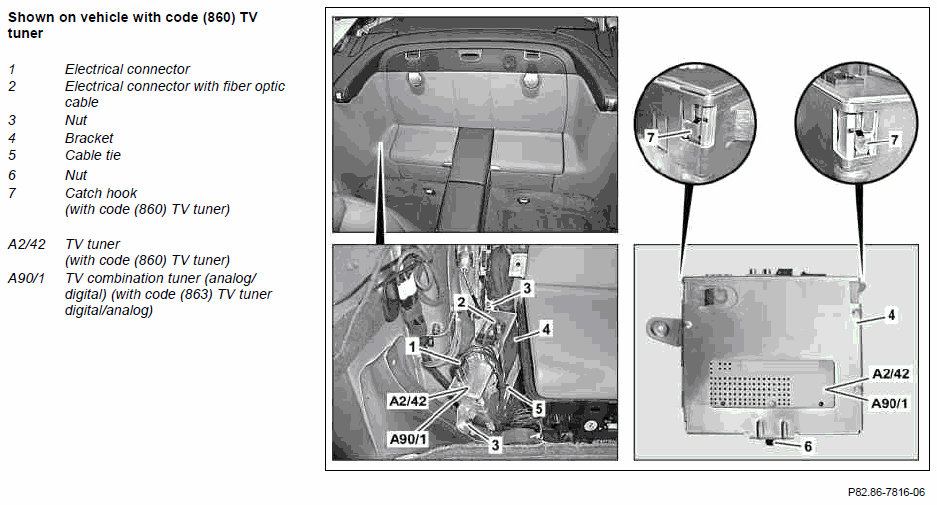

| 4 | Unscrew nuts (3) | ||
| 5 | Remove bracket (4) together with TV tuner (A2/42) or TV combination tuner (analog/ digital) (A90/1) upwards | ||
| 6 | Unscrew nut (6) | When replacing TV tuner (A2/42) or TV combination tuner (analog/digital) (A90/1). | |
| 7 | Expose electrical lines and disconnect | ||
| 8 | Disconnect electrical connector with fiber optic cable (2) | To avoid damaging them, do not kink fiber optic cables, route over sharp edges or bend in radii smaller than 25 mm. | |
| 9 | Cover electrical connector with fiber optic cable (2) and device connector on TV tuner (A2/42) or TV combination tuner (analog/ digital) (A90/1) | AR82.95-P-0005-01A | |
| 10.1 | Simultaneously press in catch hooks (7) on left and right side of bracket (4) and remove TV tuner (A2/42) from bracket (4) | When replacing TV tuner (A2/42) with code (860) TV tuner. | |
| 10.2 | Remove TV combination tuner (analog/digital) (A90/1) from bracke4t (4) | When replacing TV combination tuner (analog/digital) (A90/1) with code (863) Digital/analog TV tuner. | |
| 11 | Install in the reverse order |
