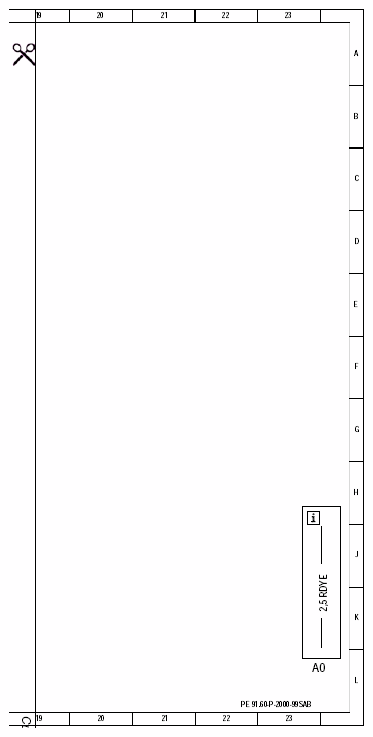

| A0 |
Explanation of color codes |
15 L |

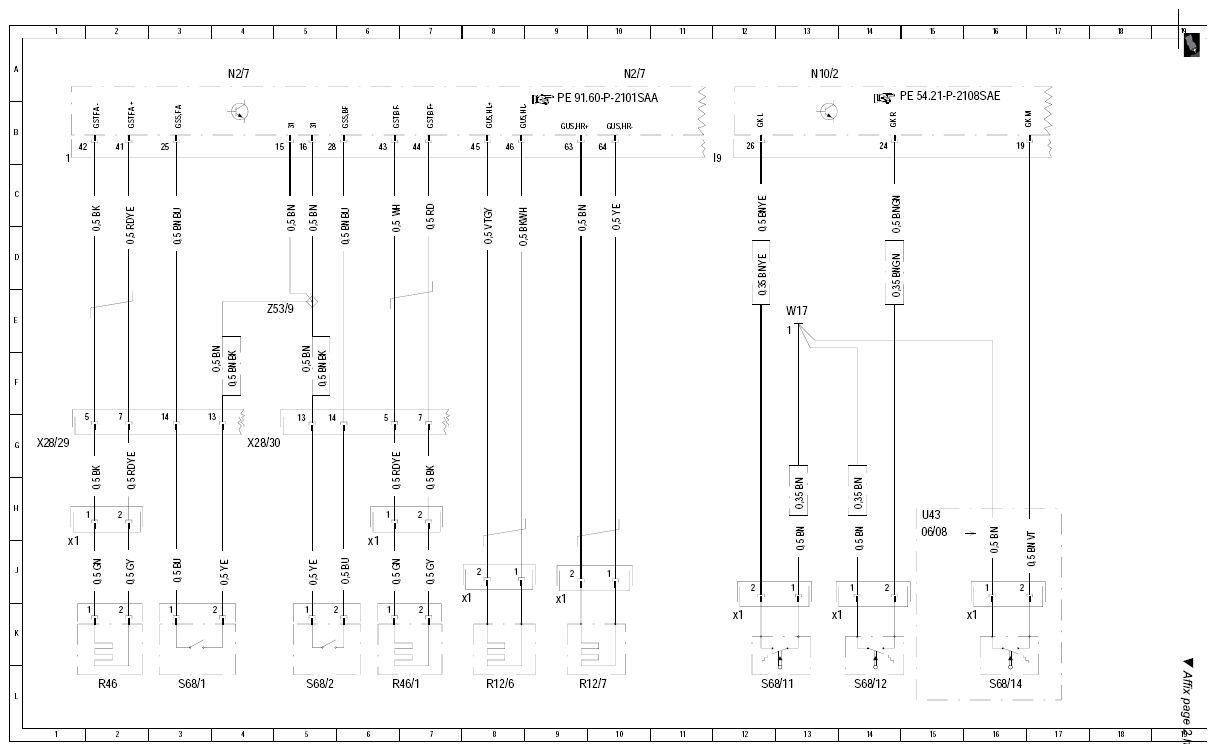

| N10/2 |
Rear SAM control module with fuse and relay module |
13 A |
| N2/7 |
Restraint systems control module |
4 A |
| N2/7 |
Restraint systems control module |
10 A |
| R12/6 |
Left rear ETR ignition squib |
8 L |
| R12/6x1 |
Left rear ETR squib connector |
7 K |
| R12/7 |
Right rear ETR ignition squib |
9 L |
| R12/7x1 |
Right rear ETR squib connector |
9 K |
| R46 |
Driver buckle ETR squib |
2 L |
| R46/1 |
Front passenger buckle ETR squib |
6 L |
| R46/1x1 |
Front passenger buckle emergency tensioning retractor squib connector |
6 J |
| R46x1 |
Driver buckle emergency tensioning retractor squib connector |
1 J |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
3 L |
| S68/11 |
Left rear seat belt buckle switch |
12 L |
| S68/11x1 |
Left rear seat belt buckle switch connector |
12 K |
| S68/12 |
Right rear seat belt buckle switch |
14 L |
| S68/12x1 |
Right rear seat belt buckle switch connector |
13 K |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
5 L |
| W17 |
Ground (right rear seat) |
13 G |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
1 G |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
4 G |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
4 E |
