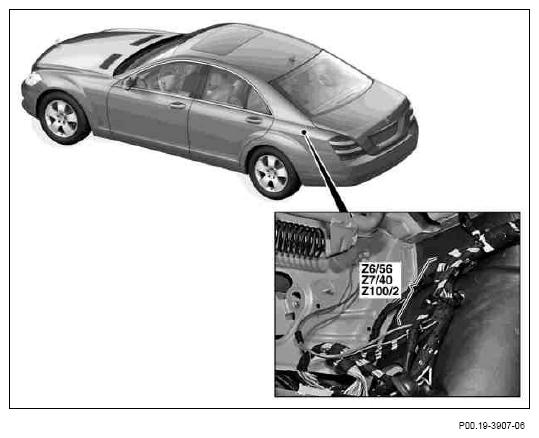

Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left - GF00.19-P-3000-06SAA
Model 221
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z6/56 | Circuit 31 connector sleeve | |||
| Up to 05/09 | ← W6 | Ground (left wheel well in luggage compartment) | ||
| as of 06/09, up to 08/10 | ← W43 | Ground (reference, image transmission systems) | ||
| Valid for |
→ A28/2 | Portable CTEL antenna amplifier | 1.2 | |
| Valid for all (except |
→ A28/3 | E-net compensator | 1.2 | |
| as of 06/09, ECE | → A34/7 | Front mobile phone cradle | 1.2 | |
| Valid for rear telephone | → A34/13 | Rear portable CTEL bracket | 1.1 | |
| as of 06/09, up to 08/10 | → A40/5 | Left rear display | 1.1 | |
| 1.5 | ||||
| Up to 05/09 | → N96 | Frequency switchover control unit | 1.1 | |
| Up to 05/09 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) | 1.3 | |
| control unit | 1.4 | |||
| Z7/40 | Tml. 30 connector sleeve | |||
| ← N10/2 | Rear SAM control unit with fuse and relay module | |||
| Up to 05/08 | 148 | |||
| As of 06/08 | I1.7 | |||
| Valid for |
→ A28/2 | Portable CTEL antenna amplifier | 1.1 | |
| Valid for all (except |
→ A28/3 | E-net compensator | 1.1 | |
| as of 06/09, ECE | → A34/7 | Front mobile phone cradle | 1.1 | |
| Up to 05/08 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) | 1.20 | |
| control unit | 1.21 | |||
| Z100/2 | Wake-up signal connector sleeve | ← N93/1 | Audio tuner control unit | 1A.3 |
| AMG sound | → A2/69 | Digital sound processor | 2.20 | |
| USA | → A40/3 | COMAND control unit | 1A.9 | |
| USA, up to 05/09 | → N41/3 | Voice control system (VCS [SBS]) control unit | 1.18 | |
| USA, up to 05/09 | → N87/5 | SDAR control unit | 3.3 | |
| USA, as of 06/09 | → N87/8 | High-definition tuner control unit | 3.3 | |
| USA, up to 05/09 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 1.24 | |
| As of 06/09 | → N125/1 | Media interface control unit | B.5 |
