Carry out distance and comparison measurements on rear axle - AR40.30-P-0402-02SX
MODEL 216, 221.0 /1
| 18.7.07 | Dimension, see picture | Model 216 | *BE40.30-P-1001-05H |
| Number | Designation | Model 216 except 4MATIC | Model 216 with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1765 (± 2) | 1769 (± 2) |
| H2 | mm | 2311 (± 2) | 2314 (± 2) | ||
| H3 | mm | 1208 (± 2) | 1208 (± 2) | ||
| H4 | mm | 1026 (± 2) | 1026 (± 2) | ||
| H5 | mm | 1096 (± 2) | 1096 (± 2) | ||
| See picture | AR40.30-P-0402-02SX | AR40.30-P-0402-02S X | |||
| Number | Designation | Type 221.0 | Type 221.1 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-05H | Dimension | H1 | mm | 1839 (± 2) | 1964 (± 2) |
| H2 | mm | 2399 (± 2) | 2522 (± 2) | ||
| H3 | mm | 1208 (± 2) | 1208 (± 2) | ||
| H4 | mm | 1026 (± 2) | 1026 (± 2) | ||
| H5 | mm | 1096 (± 2) | 1096 (± 2) | ||
| See picture | AR40.30-P-0402-02SX | AR40.30-P-0402-02S X | |||
The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.
The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/07/10 = 168 589 07 63 02 (support stud)
168 589 07 63 07 (extension)
168 589 07 63 10 (measuring tip)
| Clearance | Measuring bolt configuration | Telescopic measuring rod |
|---|---|---|
| H1 | 02/07/05/socket wrench bit | 124 589 02 19 00 |
| H2 | Model 216: 02/08/05/socket Model 221: 02/07/05/socket |
124 589 02 19 00 |
| H3 | 02/07/05/socket wrench bit | 124 589 02 19 00 |
| H4 | 02/07/05/socket wrench bit | 124 589 02 19 00 |
| H5 | 02/07/05/socket wrench bit | 124 589 02 19 00 |

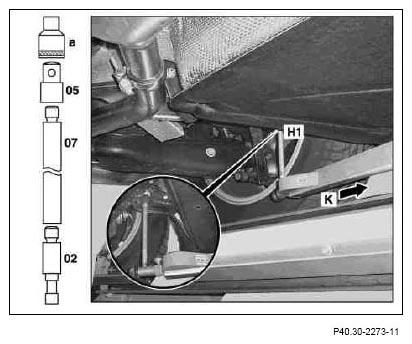

- Measure distance dimension (H1) from check point (K) to center of Torx bolt head of front mount of rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in Torx bolts and check for deformation.
shown on model 221
- 2.1 Model 216

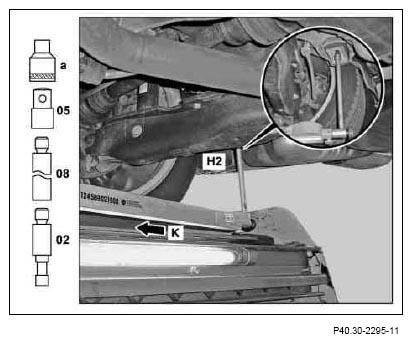

: Measure distance dimension (H2) from check point (K) to center of Torx bolt head of rear mount of rear axle carrier. Measure on the left and right side in each case.
- 2.2 Model 221:

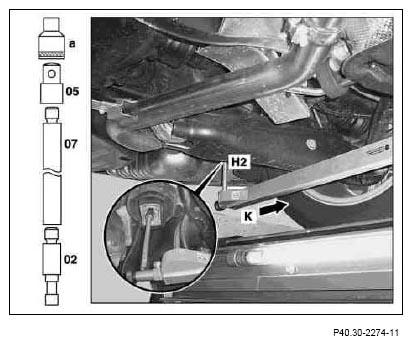

Measure distance dimension (H2) from check point (K) to center of Torx bolt head of rear mount of rear axle carrier. Measure on the left and right side in each case.

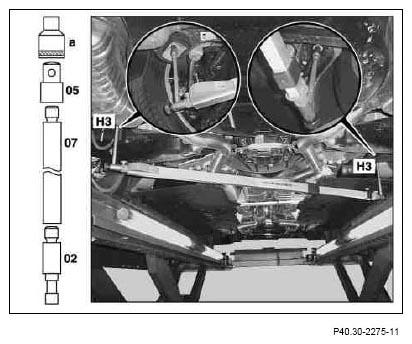

- 3 Measure distance dimension (H3) diagonally from the centering point of the Torx bolt heads between the front and rear bearing of the rear axle carrier. Measure on the left and right side in each case.
shown on model 221

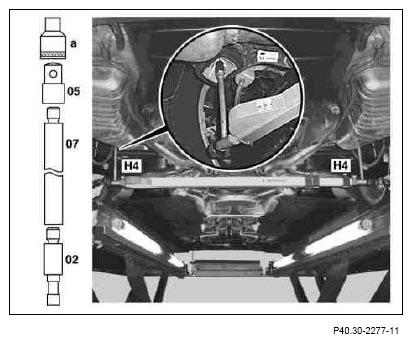

- 4 Measure distance dimension (H4) from the centering point of the Torx bolt heads between the rear bearings of the rear axle carrier.
shown on model 221

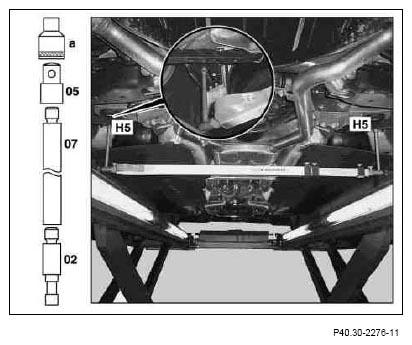

- 5 Measure distance dimension (H5) from the centering point of the Torx bolt heads between the front bearings of the rear axle carrier.
shown on model 221
