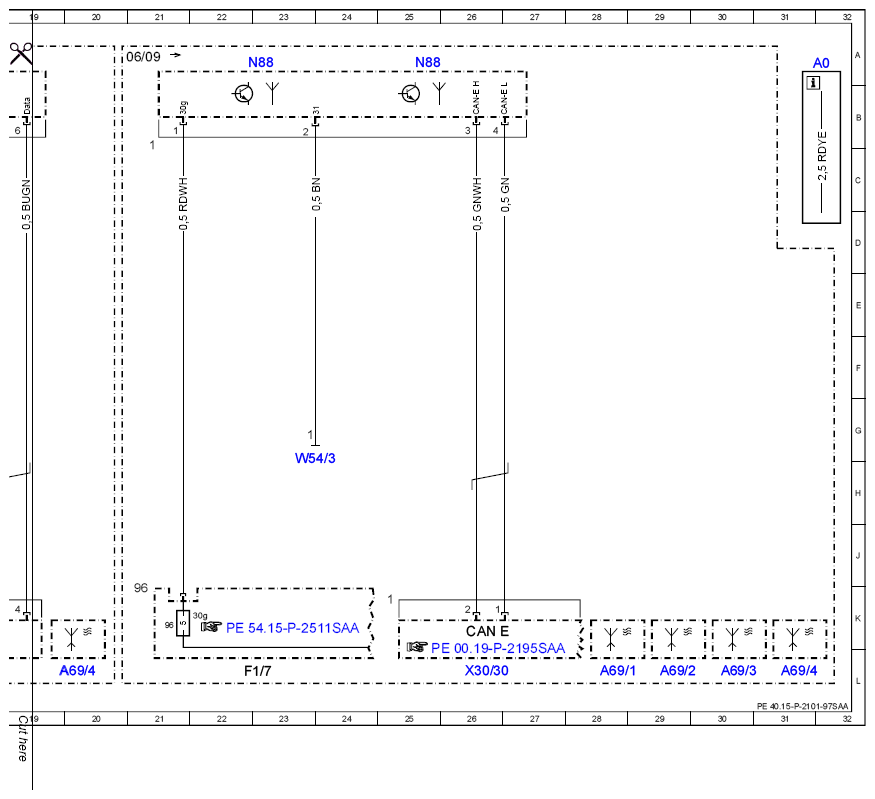

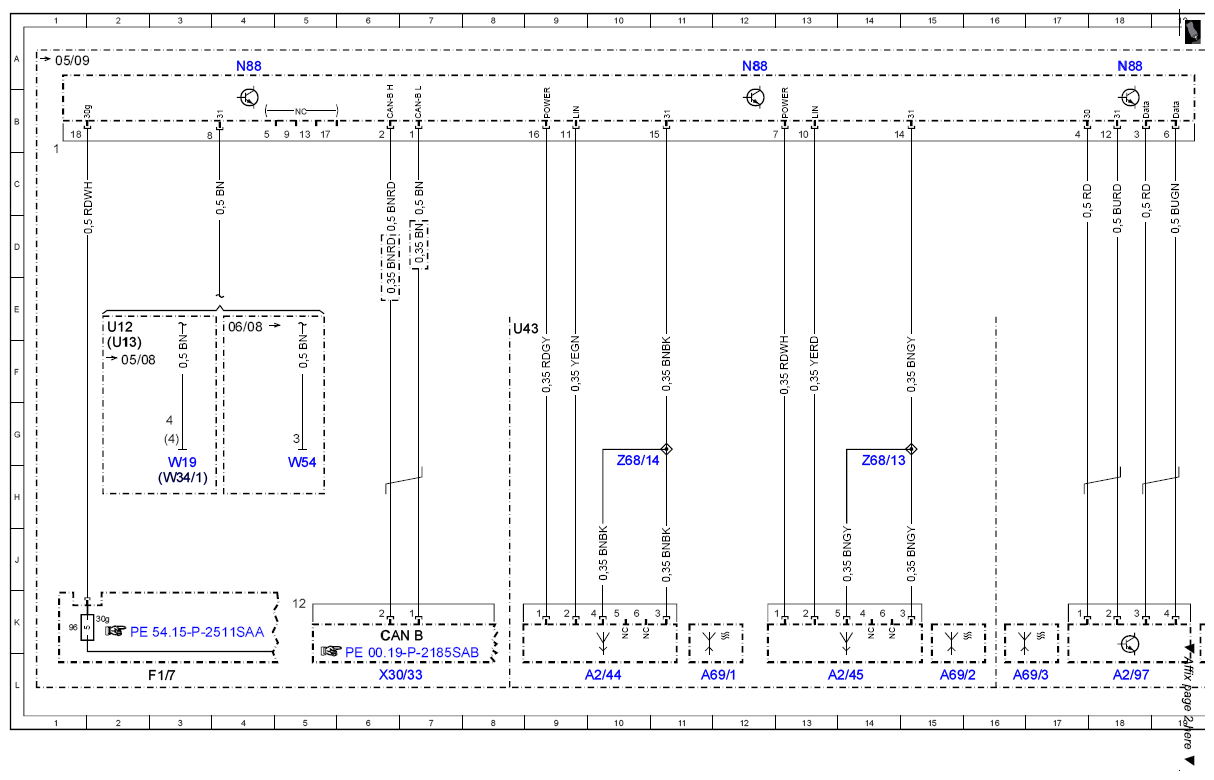

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-97SAA
MODEL 221.0 /1 with CODE (494) USA version control unit N88
MODEL 221.0 /1 with CODE (475) Tire pressure monitor (premium) control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32A |
| A2/44 | Left front TPM [RDK] wheel antenna | 10L |
| A2/45 | Right front TPM [RDK] wheel antenna | 13L |
| A2/97 | Central TPM [RDK] antenna | 18L |
| A69/1 | Left front TPM [RDK] wheel sensor | 11L |
| A69/1 | Left front TPM [RDK] wheel sensor | 28L |
| A69/2 | Right front TPM [RDK] wheel sensor | 15L |
| A69/2 | Right front TPM [RDK] wheel sensor | 29L |
| A69/3 | Left rear TPM [RDK] wheel sensor | 16L |
| A69/3 | Left rear TPM [RDK] wheel sensor | 30L |
| A69/4 | Right rear TPM [RDK] wheel sensor | 31L |
| A69/4 | Right rear TPM [RDK] wheel sensor | 20L |
| CAN B | Interior CAN | 6K |
| CAN E | Chassis CAN | 26K |
| F1/7 | Left instrument panel fuse box | 3L |
| F1/7 | Left instrument panel fuse box | 23L |
| F1/7f96 | Fuse 96 | 1K |
| F1/7f96 | Fuse 96 | 21K |
| N88 | TPM [RDK] control unit | 4A |
| N88 | TPM [RDK] control unit | 12A |
| N88 | TPM [RDK] control unit | 18A |
| N88 | TPM [RDK] control unit | 23A |
| N88 | TPM [RDK] control unit | 25A |
| U12 | Valid for left-hand drive vehicles | 2E |
| U13 | Valid for right-hand drive vehicles | 2F |
| U43 | Valid for ECE | 8E |
| W19 | Ground (right front seat crossmember) | 3H |
| W34/1 | Ground (electronics - left footwell) | 3H |
| W54 | Ground (right rear wheelhouse) | 5H |
| W54/3 | Ground (left rear wheelhouse) | 23H |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 26L |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 6L |
| Z68/13 | TPM [RDK] LIN bus ground connector sleeve | 14G |
| Z68/14 | TPM [RDK] LIN bus ground connector sleeve | 10G |
