Remove/install rear suspension strut - AR32.25-P-1016SY

MODEL 216, 221.0 /1 with CODE (487) Active Body Control (ABC)

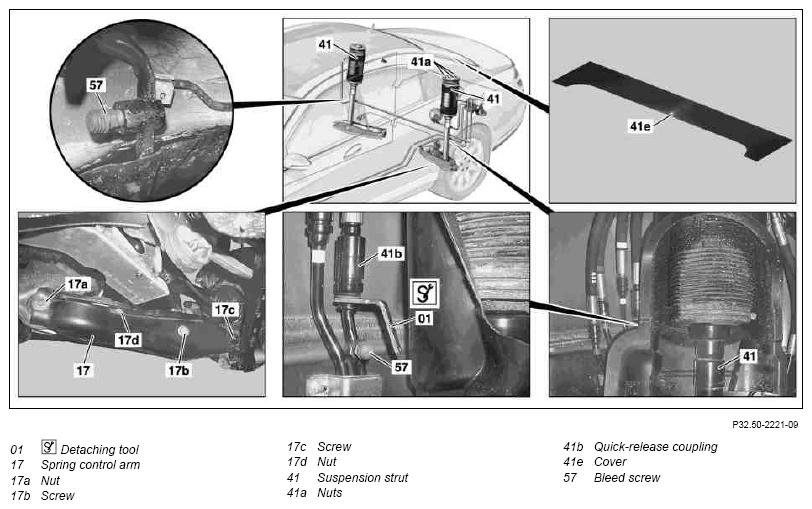

Fig 1: Identifying Rear Suspension Strut Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

4.5.11

Remove rear shelf for model 221.0 /1 with code (811) Advanced sound system, added

Step 1.2

	Remove/install
		Before opening the hydraulic system the area surrounding the separation point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system.
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
1.1	Remove cover (41e) and remove the foam interlayer underneath	Model 216, model 221.0 /1 without code (811) Advanced sound system Move wiring harness in area of spring tower to one side.
1.2	Remove rear shelf	Model 221.0 /1 with code (811) Advanced sound system	AR68.30-P-4580SX
2	Detach panel on the C-pillar	Model 216	AR68.30-P-4490SC
		Model 221 Only detach from the C-pillar until the nuts (41a) are accessible.	AR68.30-P-4490SX
3	Unscrew nuts (41a) from suspension strut (41)		*BA32.25-P-1004-04L
4	Remove rear wheel
	Remove/install wheels		AP40.10-P-4050SX
5	Remove inner fender from rear fender
6	Relieve pressure in suspension strut (41) via bleed screw (57)		AR32.50-P-0001-01N
			*BA32.50-P-1001-02B
7	Separate the quick-release coupling (41b) using the release tool (01)	Ensure that no dirt gets into the opened quick-release coupling (41b) as this can lead to the failure of the ABC system.	Fig 2
		Installation: Ensure that the quick-release coupling (41b) latches completely.
8	Pull suspension strut cover downward off spring tower
9	Detach nut (17d) from linkage bracket of level sensor on spring control arm (17)		*BA82.10-P-1004-02E
10	Lower rear exhaust system	Unscrew exhaust rubber mount starting from flange connection. Vehicles with gasoline engine	AR49.10-P-7100SX
		Vehicles with diesel engine	AR49.10-P-7100SXI
11	Loosen spring control arm (17) on wheel carrier
			*BA35.20-P-1002-01A
12	Detach suspension strut (41) from spring control arm (17)		*BA32.25-P-1005-04L
13	Remove spring control arm (17) from rear axle carrier	Lower the exhaust system using transmission jack and transmission platform until the bolt can be removed. Counterhold spring control arm (17) with suspension strut (41).	*BA35.20-P-1001-01A
		Transmission plate Transmission jack
14	Pivot spring control arm (17) downward and remove suspension strut (41) by lowering it	Installation: When inserting the threaded bolt into the spring tower, do not damage the wiring harnesses (between body and rear shelf) in the area of the spring tower. Do not damage boot of suspension strut (41) If necessary: ↓ Dispose of suspension strut.	OS32.25-P-0122-01N
15	Install in the reverse order
16	Fill and bleed ABC system		AR32.50-P-0021SX
17	Carry out level calibration and plunger calibration using STAR DIAGNOSIS	STAR DIAGNOSIS diagnostic system

SUSPENSION STRUTS

Number	Designation		Model 216 without 4MATIC	Model 221 with code 487 (ABC)
BA32.25-P-1004-04L	Nut, rear suspension strut to body	Nm	30	30
BA32.25-P-1005-04L	Nut, rear strut to spring control arm	Nm	110	110

ACTIVE BODY CONTROL, LINES

Number	Designation		Model 216	Model 221
BA32.50-P-1001-02B	Bleed screw on soldered fitting in hydraulic line M10x1	Nm	20	20

SPRING CONTROL ARM

Number	Designation			Model 216	Model 221 without code Z07/Z07+Z19
BA35.20-P-1001-01A	Self-locking nut, spring control arm to rear axle carrier	Stage 1	Nm	60	60
		Stage 2	∠°	90	90
BA35.20-P-1002-01A	Self-locking nut, spring control arm to wheel carrier.	Stage 1	Nm	80	80
		Stage 2	∠°	90	90

REAR AXLE LEVEL SENSOR

Number	Designation		Model 216	Model 221 with code 487
BA82.10-P-1004-02E	Nut, linkage rod bracket to spring control arm	Nm	22	22

Fig 2: Identifying Detaching Tool (221 589 01 33 00)

Courtesy of MERCEDES-BENZ USA
