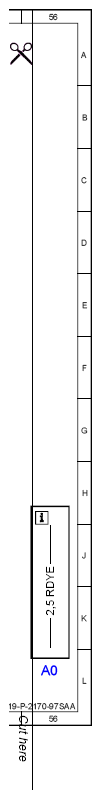

| A0 |
Color code key |
56L |

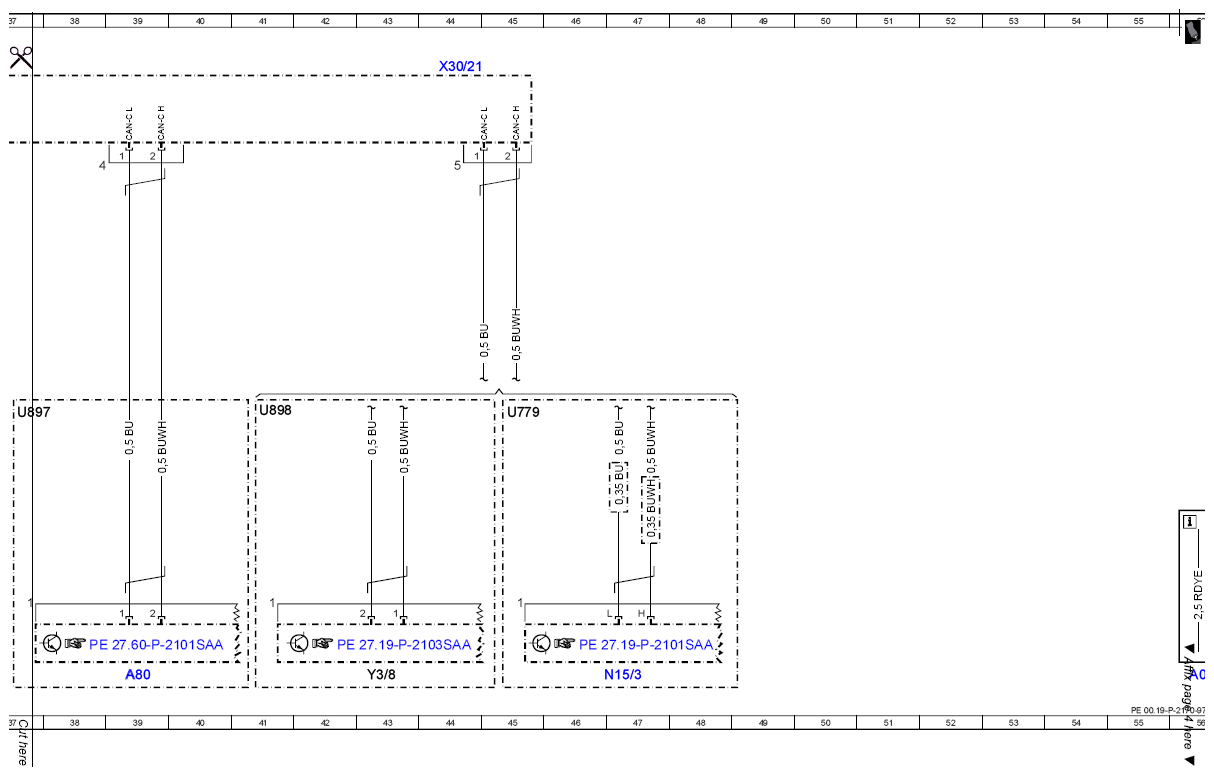

| A80 |
Intelligent servo module for DIRECT SELECT |
39L |
| N118 |
Fuel pump control unit |
15L |
| N118 |
Fuel pump control unit |
7L |
| N118 |
Fuel pump control unit |
11L |
| N15/3 |
ETC [EGS] control unit |
47L |
| N3/10 |
ME-SFI [ME] control unit |
19L |
| N3/10 |
ME-SFI [ME] control unit |
23L |
| N3/10 |
ME-SFI [ME] control unit |
31L |
| N3/9 |
CDI control unit |
27L |
| N3/9 |
CDI control unit |
35L |

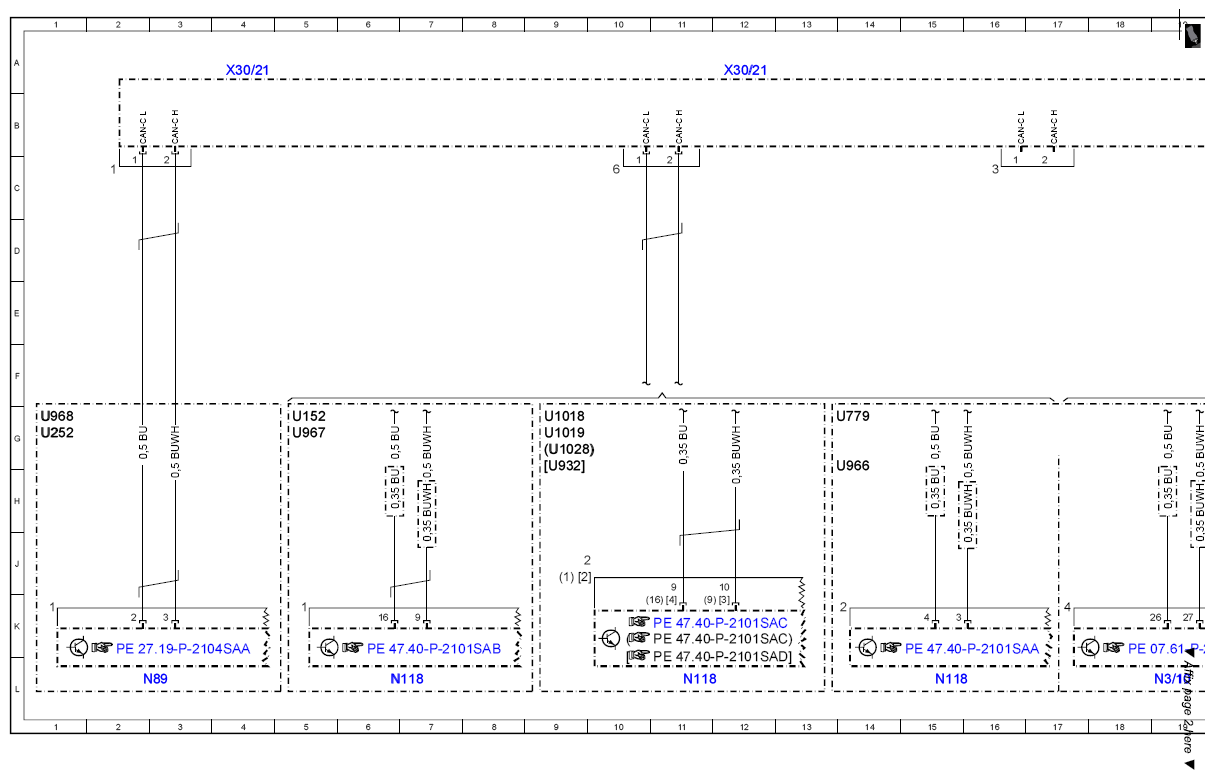

| N89 |
Transmission oil auxiliary pump control unit |
3L |
| U1018 |
Valid for gasoline engine 276 |
9G |
| U1018 |
Valid for gasoline engine 276 |
29G |
| U1019 |
Valid for engine 278 |
9G |
| U1019 |
Valid for engine 278 |
29G |
| U1028 |
Valid for engine 157 |
9G |
| U1028 |
Valid for engine 157 |
29H |
| U152 |
Valid for engine 156 |
21G |
| U152 |
Valid for engine 156 |
5G |
| U252 |
Valid for ECO start/stop function |
1G |
| U484 |
Valid for M273 ME |
21G |
| U779 |
Valid for engine 275 |
13G |
| U779 |
Valid for engine 275 |
45G |
| U819 |
Valid for engine 272 |
21G |
| U880 |
Valid for engine 642 |
25G |
| U882 |
Valid for engine 629 |
25G |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
37G |
| U898 |
Not valid for M275 |
41G |
| U932 |
Valid for engine 642 BLUETEC |
25G |
| U932 |
Valid for engine 642 BLUETEC |
9H |
| U948 |
Valid for diesel engine 651 |
33G |
| U966 |
Valid for engine 275.953 |
13H |
| U967 |
Valid for engine 275.982 |
5G |
| U968 |
Valid for mild hybrid drive |
1G |
| U968 |
Valid for mild hybrid drive |
29G |
| W18 |
Ground (left front seat crossmember) |
28E |

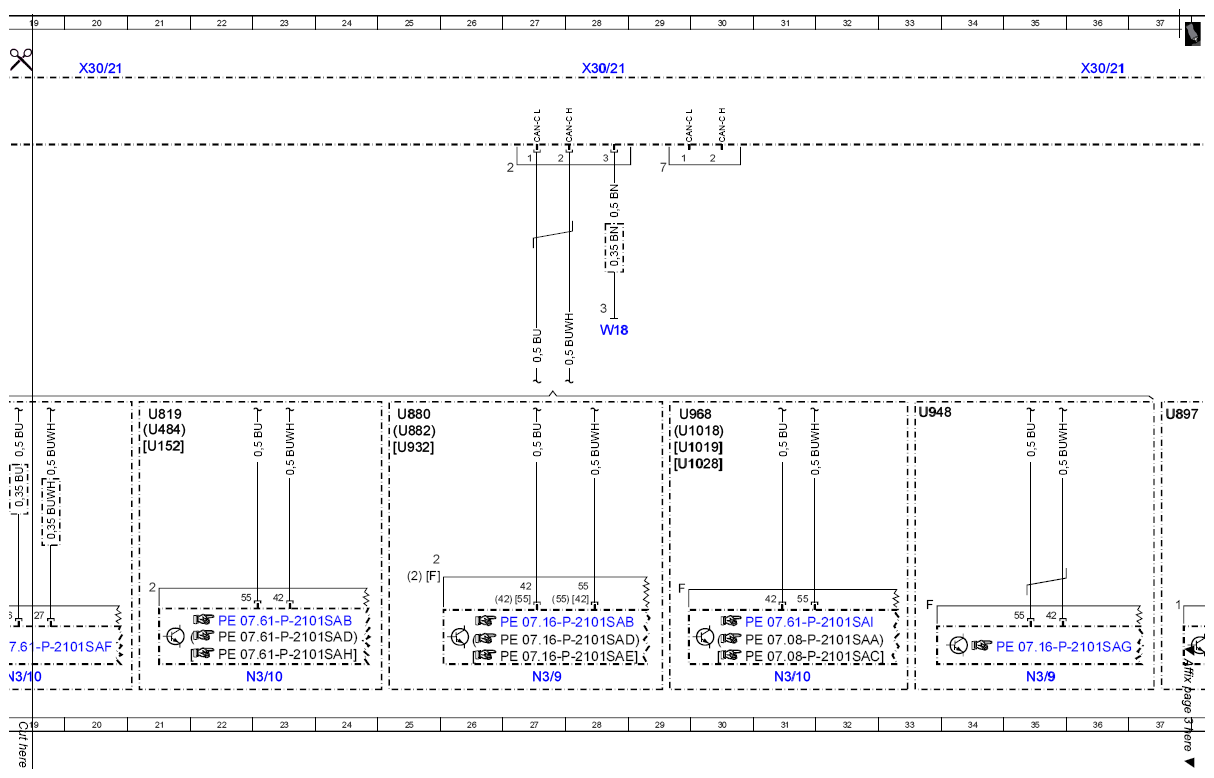

| X30/21 |
Drive train CAN voltage distributor connector |
4A |
| X30/21 |
Drive train CAN voltage distributor connector |
12A |
| X30/21 |
Drive train CAN voltage distributor connector |
20A |
| X30/21 |
Drive train CAN voltage distributor connector |
28A |
| X30/21 |
Drive train CAN voltage distributor connector |
36A |
| X30/21 |
Drive train CAN voltage distributor connector |
44A |
| Y3/8 |
Electric control unit (VGS) |
43L |
