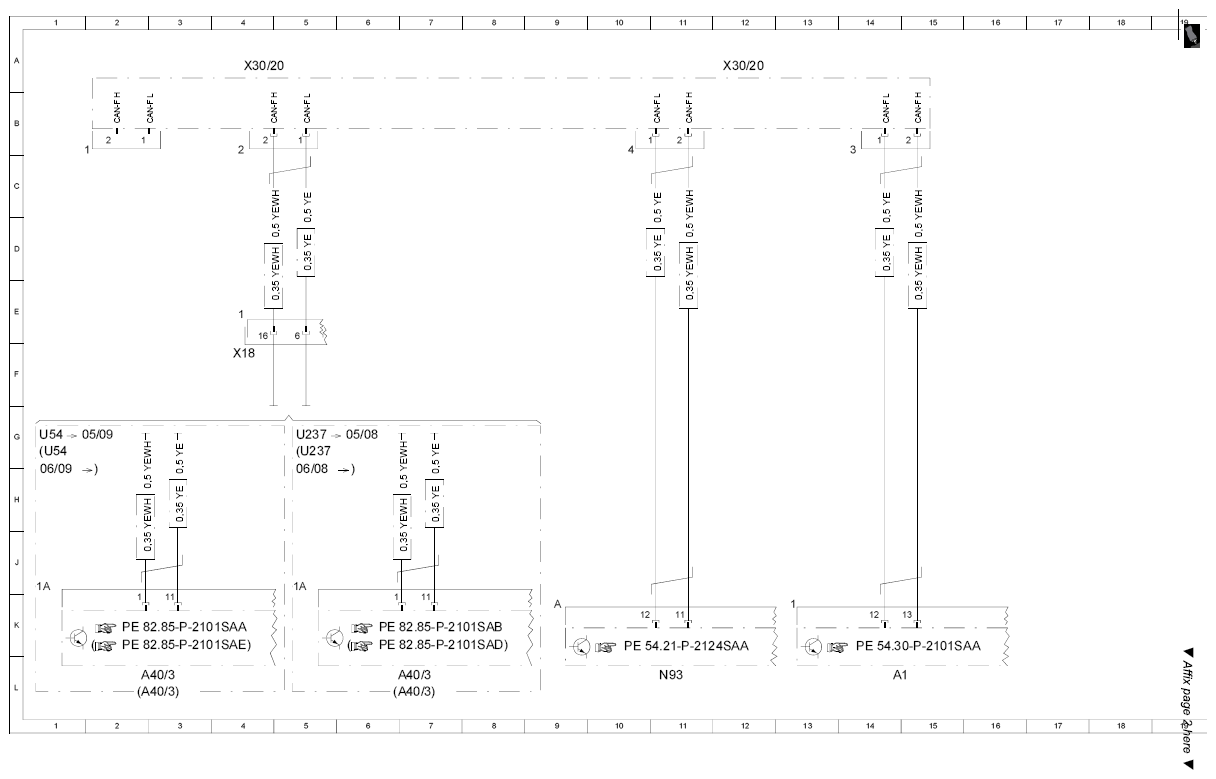

Wiring diagram of central CAN - PE00.19-P-2160-99SAA
| Code: | Designation: | Position: |
|---|---|---|

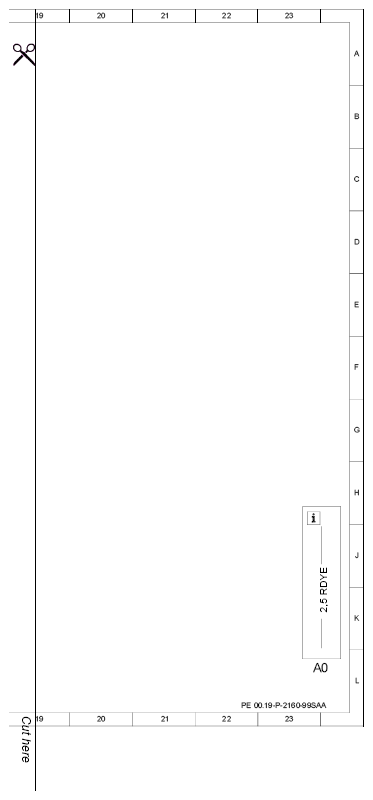

| A0 | Explanation of color codes | 15 L |
| A1 | Instrument cluster | 12 L |
| A40/3 | COMAND control unit | 3 L |
| N93 | Central gateway control module | 8 L |
| U237 | Valid for COMAND operating unit, {{Japan}} version | 1 G |
| U54 | Valid for all (except {{Japan}} | 1 G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 2 E |
| X30/20 | Central CAN voltage distributor connector | 4 A |
| X30/20 | Central CAN voltage distributor connector | 10 A |
