Location and assignment of line and plug connectors, cockpit - GF00.19-P-1000-03SAA

Model 221

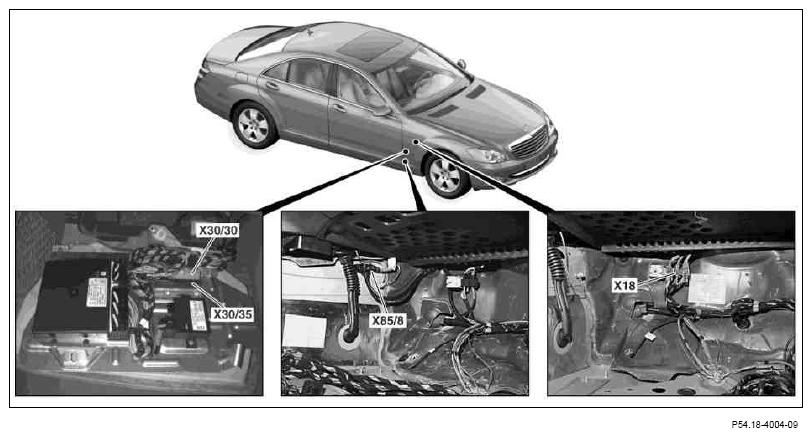

Fig 1: Location And Assignment Of Cockpit Line And Plug Connectors (1 Of 6)
G07543934Courtesy of MERCEDES-BENZ USA

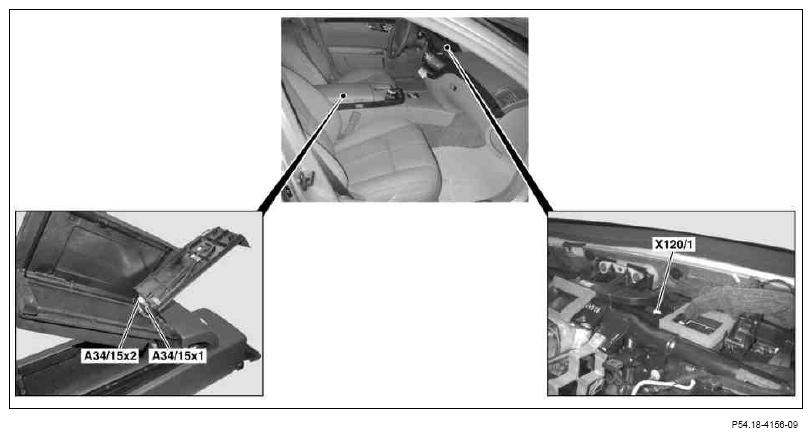

Fig 2: Location And Assignment Of Cockpit Line And Plug Connectors (2 Of 6)
G07543935Courtesy of MERCEDES-BENZ USA

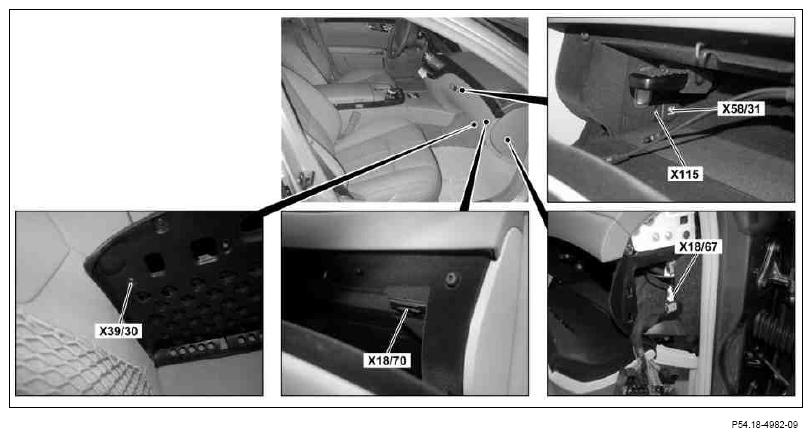

Fig 3: Location And Assignment Of Cockpit Line And Plug Connectors (3 Of 6)
G07543936Courtesy of MERCEDES-BENZ USA

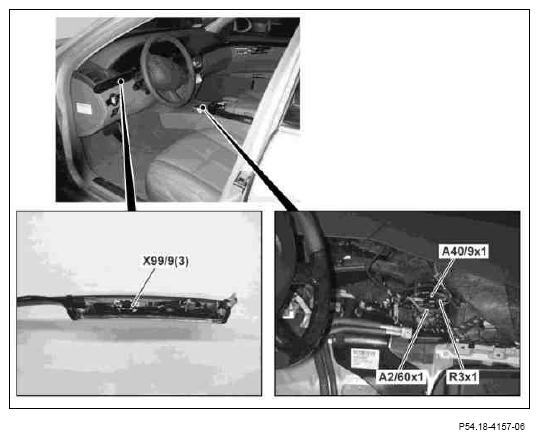

Fig 4: Location And Assignment Of Cockpit Line And Plug Connectors (4 Of 6)
G07543937Courtesy of MERCEDES-BENZ USA

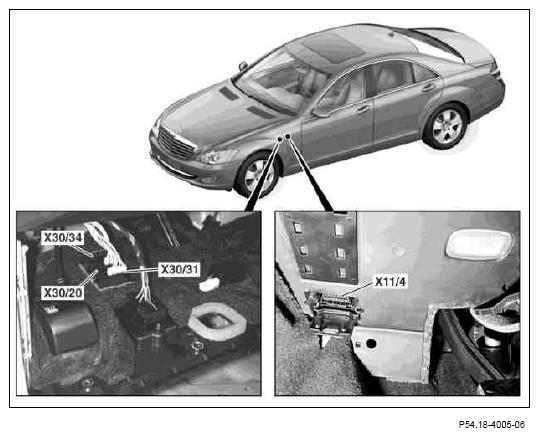

Fig 5: Location And Assignment Of Cockpit Line And Plug Connectors (5 Of 6)
G07543938Courtesy of MERCEDES-BENZ USA

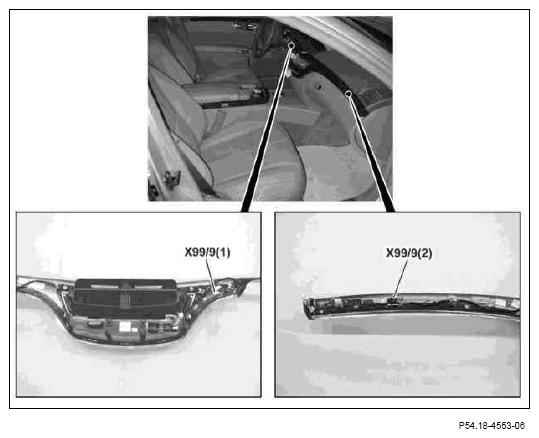

Fig 6: Location And Assignment Of Cockpit Line And Plug Connectors (6 Of 6)
G07543939Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors   Cable colors Notes
A2/60x1 Center console Keyless Go antenna connector BK PLUG 1 SOCKET BNGY Up to 08/10
    BNGY PLUG 1 SOCKET BNGY As of 09/10
    YE PLUG 2 SOCKET GY Up to 08/10
    GY PLUG 2 SOCKET GY As of 09/10
A34/15x1 Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) BK PLUG 1 SOCKET Up to 05/09
    OGWH PLUG 2 SOCKET Up to 05/09
    BUWH PLUG 3 SOCKET Up to 05/09
    BNWH PLUG 4 SOCKET Up to 05/09
    YEWH PLUG 5 SOCKET Up to 05/09
    YE PLUG 6 SOCKET Up to 05/09
    orange PLUG 7 SOCKET Up to 05/09
    BU PLUG 8 SOCKET Up to 05/09
    BN PLUG 9 SOCKET Up to 05/09
    GN PLUG 10 SOCKET Up to 05/09
A34/15x2 Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface)
  Up to 05/09 BK PLUG   SOCKET BK Not valid for Japan
  Up to 05/09 TR PLUG S SOCKET TR Not valid for Japan
A40/9x1 Front central operating unit connector BN PLUG 1 SOCKET BN
    YE PLUG 2 SOCKET YEBK
    BK PLUG 3 SOCKET BK
    BU PLUG 4 SOCKET BU
    RD PLUG 5 SOCKET RDWH
    BK PLUG 6 SOCKET BKWH
    RD PLUG 7 SOCKET RDWH
    GN PLUG 8 SOCKET GN
R3x1 Front cigarette lighter connector PLUG 1 SOCKET BN
    PLUG
    PLUG 2 SOCKET GYBU
    PLUG 3 SOCKET BKWH
X11/4 Data link connector PLUG 1 SOCKET
    PLUG 2 SOCKET
    PLUG 3 SOCKET
    PLUG 4 SOCKET BN
    PLUG 5 SOCKET BN
    PLUG 6 SOCKET GYWH
    PLUG 7 SOCKET
    PLUG 8 SOCKET
    PLUG 9 SOCKET
    PLUG 10 SOCKET
    PLUG 11 SOCKET
    PLUG 12 SOCKET
    PLUG 13 SOCKET
    PLUG 14 SOCKET GY
    PLUG 15 SOCKET
    PLUG 16 SOCKET RDGN
X18(1) Cockpit wiring harness and FFS [RBA] connector RDWH PLUG 1 SOCKET RDWH
    GN PLUG 2 SOCKET GN
    BK PLUG 3 SOCKET BK
    GYBU PLUG 4 SOCKET GYBU As of 06/09
    GYGN PLUG 5 SOCKET GYGN Sound system
    YE PLUG 6 SOCKET YE
    GYRD PLUG 7 SOCKET GYRD As of 06/09
    GY PLUG 8 SOCKET GY LCT
    GNRD PLUG 8 SOCKET GNRD Navigation
    PLUG 9 SOCKET
    GNBK PLUG 10 SOCKET GNBK Navigation
    BU PLUG 11 SOCKET BU
    YEBK PLUG 12 SOCKET YEBK
    BKWH PLUG 13 SOCKET BKWH
    PLUG 14 SOCKET
    GYWH PLUG 15 SOCKET GYWH Sound system
    YEWH PLUG 16 SOCKET YEWH
    TR PLUG 17 SOCKET TR As of 06/09
    YE PLUG 18 SOCKET YE As of 06/09
    BN PLUG 19 SOCKET BN As of 06/09
    BK PLUG 20 SOCKET BK As of 06/09
X18(2) Cockpit wiring harness and FFS [RBA] connector VTBN PLUG 1 SOCKET VTBN
    GNBN PLUG 2 SOCKET GNBN
    GN PLUG 3 SOCKET GN As of 06/09
    GN PLUG 4 SOCKET GN Up to 05/09
    GNRD PLUG 4 SOCKET GNRD As of 06/09
    BN PLUG 5 SOCKET BN Up to 05/09
    GNGY PLUG 5 SOCKET GNGY As of 06/09
    GYBN PLUG 6 SOCKET GYBN Up to 05/09
    BN PLUG 6 SOCKET BN As of 06/09
    GYBN PLUG 7 SOCKET GYBN As of 06/09
    GNWH PLUG 8 SOCKET GNWH
    GNBN PLUG 9 SOCKET GNBN As of 06/09
X18 (3) Cockpit wiring harness and FFS [RBA] connector GYRD PLUG 1 SOCKET GYRD
    GY PLUG 2 SOCKET GY TELE AID, up to 05/09
    PLUG 3 SOCKET
    PLUG 4 SOCKET
    GY PLUG 5 SOCKET GY
    GYWH PLUG 6 SOCKET GYWH TELE AID, up to 05/09
    GYBU PLUG 7 SOCKET GYBU TELE AID
    PLUG 8 SOCKET
    GY PLUG 9 SOCKET GY As of 06/09
    GYWH PLUG 10 SOCKET GYWH As of 06/09
X18 (4) Cockpit wiring harness and FFS [RBA] connector GYOG PLUG 1 SOCKET GYOG
    YEBK PLUG 2 SOCKET YEBK
    GYBU PLUG 3 SOCKET GYBU
    BKGY PLUG 4 SOCKET BKGY
    RDBU PLUG 5 SOCKET RDBU
    GYGN PLUG 6 SOCKET GYGN
    PKGY PLUG 7 SOCKET PKGY
    GNYE PLUG 8 SOCKET GNYE
    BKOG PLUG 9 SOCKET BKOG
    PLUG 10 SOCKET
X18/67 Media interface connector 1 TR PLUG S SOCKET TR
    TR PLUG   SOCKET TR
X18/70 Media interface connector PLUG 1 SOCKET BN
    PLUG 2 SOCKET YE
    PLUG 3 SOCKET GY
    PLUG 4 SOCKET TR
    PLUG 5 SOCKET
    PLUG 6 SOCKET
    PLUG 7 SOCKET WHGY
    PLUG 8 SOCKET GYBN
    PLUG 9 SOCKET BU
    PLUG 10 SOCKET RD
    PLUG 11 SOCKET PK
    PLUG 12 SOCKET
    PLUG 13 SOCKET YEBN
    PLUG 14 SOCKET WHYE
    PLUG 15 SOCKET
    PLUG 16 SOCKET WHGN
    PLUG 17 SOCKET WH
    PLUG 18 SOCKET GN
    PLUG 19 SOCKET
    PLUG 20 SOCKET
    PLUG 21 SOCKET
    PLUG 22 SOCKET
    PLUG 23 SOCKET
    PLUG 24 SOCKET TR
    PLUG 25 SOCKET BK
    PLUG 26 SOCKET TR
    PLUG 27 SOCKET TR
    PLUG 28 SOCKET RD
    PLUG 29 SOCKET
    PLUG 30 SOCKET GYPK
X30/20 Central CAN voltage distributor connector PLUG 1.1 SOCKET
    PLUG 1.2 SOCKET
    PLUG 2.1 SOCKET YE
    PLUG 2.2 SOCKET YEWH
    PLUG 3.1 SOCKET YE
    PLUG 3.2 SOCKET YEWH
    PLUG 4.1 SOCKET YE
    PLUG 4.2 SOCKET YEWH
    PLUG 5.1 SOCKET
    PLUG 5.2 SOCKET
    PLUG 6.1 SOCKET
    PLUG 6.2 SOCKET
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector PLUG 1.1 SOCKET GN
    PLUG 1.2 SOCKET GNWH
    PLUG 2.1 SOCKET GN
    PLUG 2.2 SOCKET GNWH
    PLUG 3.1 SOCKET GN
    PLUG 3.2 SOCKET GNWH
    PLUG 4.1 SOCKET GN
    PLUG 4.2 SOCKET GNWH
    PLUG 5.1 SOCKET GN
    PLUG 5.2 SOCKET GNWH
    PLUG 6.1 SOCKET GN
    PLUG 6.2 SOCKET GNWH
    PLUG 6.3 SOCKET BN
    PLUG 7.1 SOCKET GN
    PLUG 7.2 SOCKET GNYE
    PLUG 8.1 SOCKET GN As of 06/09
    PLUG 8.2 SOCKET GNWH As of 06/09
    PLUG 9.1 SOCKET GN As of 06/09
    PLUG 9.2 SOCKET GNWH As of 06/09
    PLUG 10.1 SOCKET GN M272.974
    PLUG 10.2 SOCKET GNWH M272.974
    PLUG 11.1 SOCKET GN As of 06/09
    PLUG 11.2 SOCKET GNWH As of 06/09
    PLUG 12.1 SOCKET GN
    PLUG 12.2 SOCKET GNWH
    PLUG 13.1 SOCKET GN
    PLUG 13.2 SOCKET GNWH
X30/31 Chassis CAN/cockpit voltage distributor connector PLUG 1.1 SOCKET GN
    PLUG 1.2 SOCKET GNWH
    PLUG 2.1 SOCKET GN
    PLUG 2.2 SOCKET GNWH
    PLUG 3.1 SOCKET GN
    PLUG 3.2 SOCKET GNWH
    PLUG 4.1 SOCKET
    PLUG 4.2 SOCKET
    PLUG 5.1 SOCKET GN
    PLUG 5.2 SOCKET GNWH
    PLUG 6.1 SOCKET
    PLUG 6.2 SOCKET
X30/34 Interior CAN/cockpit voltage distributor connector PLUG 1.1 SOCKET BN
    PLUG 1.2 SOCKET BNRD
    PLUG 2.1 SOCKET BN
    PLUG 2.2 SOCKET BNRD
    PLUG 3.1 SOCKET BN
    PLUG 3.2 SOCKET BNRD
    PLUG 4.1 SOCKET BN
    PLUG 4.2 SOCKET BNRD
    PLUG 5.1 SOCKET BN
    PLUG 5.2 SOCKET BNYE
    PLUG 6.1 SOCKET
    PLUG 6.2 SOCKET
X30/35 Telematics CAN voltage distributor connector PLUG 1.1 SOCKET BK
    PLUG 1.2 SOCKET BKWH
    PLUG 1.3 SOCKET BN
    PLUG 2.1 SOCKET BK
    PLUG 2.2 SOCKET BKWH
    PLUG 3.1 SOCKET BK
    PLUG 3.2 SOCKET BKWH
  Rear air conditioning PLUG 4.1 SOCKET BK
  Rear air conditioning PLUG 4.2 SOCKET BKWH
    PLUG 5.1 SOCKET
    PLUG 5.2 SOCKET
    PLUG 6.1 SOCKET BK
    PLUG 6.2 SOCKET BKWH
    PLUG 7.1 SOCKET BK
    PLUG 7.2 SOCKET BKWH
    PLUG 8.1 SOCKET BK
    PLUG 8.2 SOCKET BKWH
    PLUG 9.1 SOCKET BK
    PLUG 9.2 SOCKET BKWH
    PLUG 10.1 SOCKET BK
    PLUG 10.2 SOCKET BKWH
    PLUG 11.1 SOCKET
    PLUG 11.2 SOCKET
    PLUG 12.1 SOCKET
    PLUG 12.2 SOCKET
    PLUG 13.1 SOCKET
    PLUG 13.2 SOCKET
X39/30 Headphones connecting point PLUG 1 SOCKET BK SPLITVIEW display
    PLUG 2 SOCKET YE SPLITVIEW display
    PLUG 3 SOCKET BN SPLITVIEW display
      3 SOCKET TR SPLITVIEW display
X58/31 12 volt connector in glove compartment PLUG 1 SOCKET BN As of 06/09
    PLUG 2 SOCKET As of 06/09
    PLUG 3 SOCKET PKGN As of 06/09
X85/8 Heater booster connector RD PLUG   SOCKET RD M642
X99/9(1) Separation point 9 FW PLUG 1 SOCKET BN Up to 05/09
    FW PLUG 2 SOCKET GNBK Up to 05/09
    PLUG 1 SOCKET BN As of 06/09
    PLUG 2 SOCKET YE As of 06/09
    PLUG 3 SOCKET GN As of 06/09
X99/9(2) Separation point 9 FW PLUG 1 SOCKET BNGY Up to 05/09
    FW PLUG 2 SOCKET GNGY Up to 05/09
    PLUG 1 SOCKET BN As of 06/09
    PLUG 2 SOCKET YE As of 06/09
    PLUG 3 SOCKET GN As of 06/09
X99/9(3) Separation point 9 FW PLUG 1 SOCKET BNWH Up to 05/09
    FW PLUG 2 SOCKET GNWH Up to 05/09
    PLUG 1 SOCKET BN As of 06/09
    PLUG 2 SOCKET YE As of 06/09
    PLUG 3 SOCKET GN As of 06/09
X115 USB (Universal Serial Bus) connector PLUG 1 SOCKET BU
    PLUG 2 SOCKET OG
    PLUG 3 SOCKET GN
    PLUG 4 SOCKET BN
X120/1 Instrument cluster/COMAND display additional fan separation point BN PLUG 1 SOCKET
    RDWH PLUG 2 SOCKET
    YEGN PLUG 3 SOCKET
    YEBK PLUG 4 SOCKET
