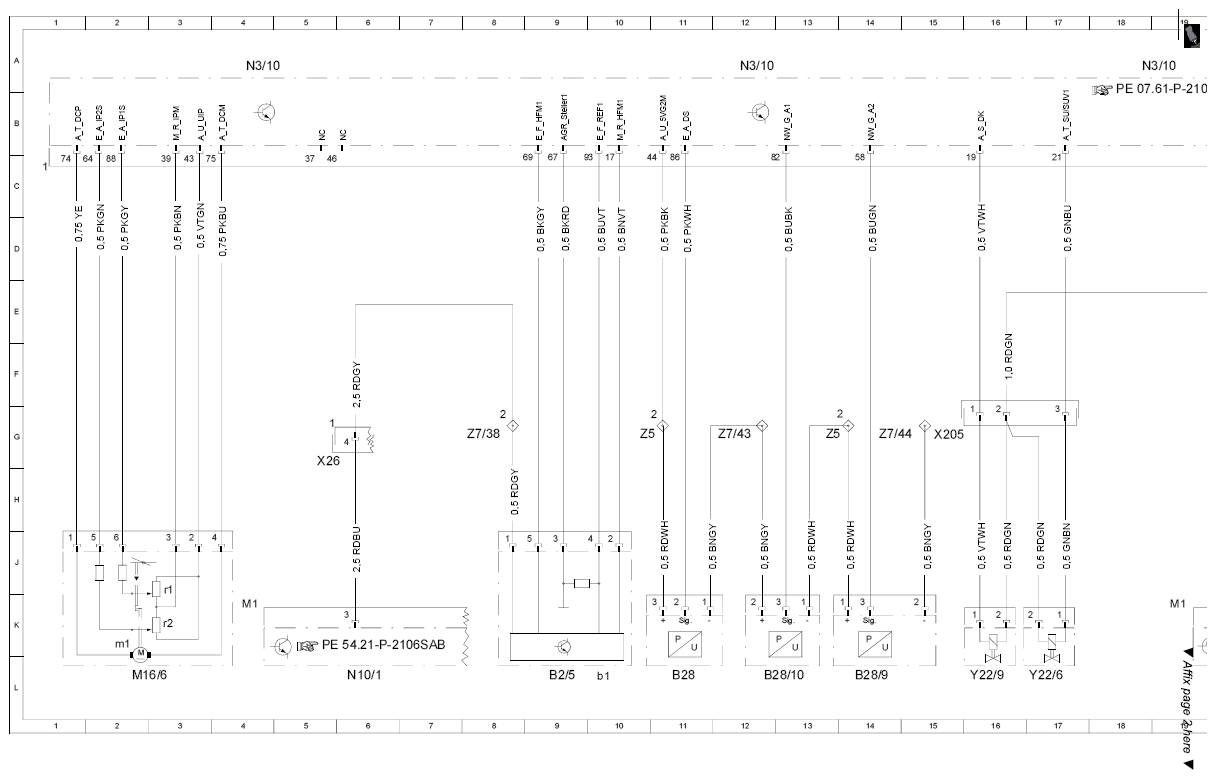

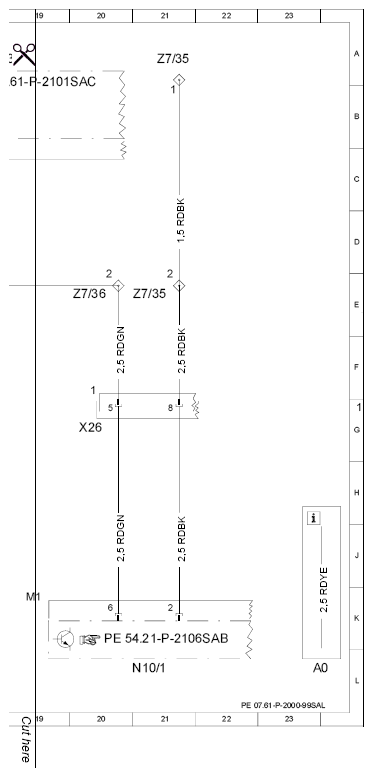

Wiring diagram, fuel injection and ignition system ME-SFI - PE07.61-P-2000-99SAL
ENGINE 273 in MODEL 221.0 /1 Air supply
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23 L |
| B2/2 | Hot wire MAF sensor | 2 L |
| B2/5 | Hot film MAF sensor | 11 L |
| B28 | Pressure sensor | 13 L |
| B28/10 | Right intake manifold tumble flap position sensor | 14 L |
| B28/9 | Left intake manifold tumble flap position sensor | 16 L |
| M16/6 | Throttle valve actuator | 4 L |
| M16/6m1 | Actuator motor | 3 K |
| M16/6r1 | Throttle valve actual value potentiometer | 4 K |
| M16/6r2 | Drive actual value potentiometer | 4 K |
| N10/1 | Front SAM control module with fuse and relay module | 8 L |
| N10/1 | Front SAM control module with fuse and relay module | 21 L |
| N3/10 | ME-SFI [ME] control module | 4 A |
| N3/10 | ME-SFI [ME] control module | 12 A |
| N3/10 | ME-SFI [ME] control module | 18 A |
| U828 | Valid for super low emission | 1 E |
| W11 | Ground (engine - connection point for ground wires) | 2 G |
| X205 | Tumble flap/variable intake manifold switchover valves connector | 17 G |
| X26 | Interior and engine wiring harness connector | 7 H |
| X26 | Interior and engine wiring harness connector | 20 G |
| Y22/6 | Variable intake manifold switchover valve | 18 L |
| Y22/9 | Intake manifold tumble flap switchover valve | 17 L |
| Z5 | Connector sleeve (solder joint in harness) | 12 G |
| Z5 | Connector sleeve (solder joint in harness) | 15 G |
| Z7/35 | Circuit 87M1e connector sleeve | 21 E |
| Z7/35 | Circuit 87M1e connector sleeve | 21 A |
| Z7/36 | Circuit 87M2e connector sleeve | 20 E |
| Z7/38 | Circuit 87 M1i connector sleeve | 9 G |
| Z7/43 | Sensor ground connector sleeve | 13 G |
| Z7/44 | Sensor ground connector sleeve | 16 G |
