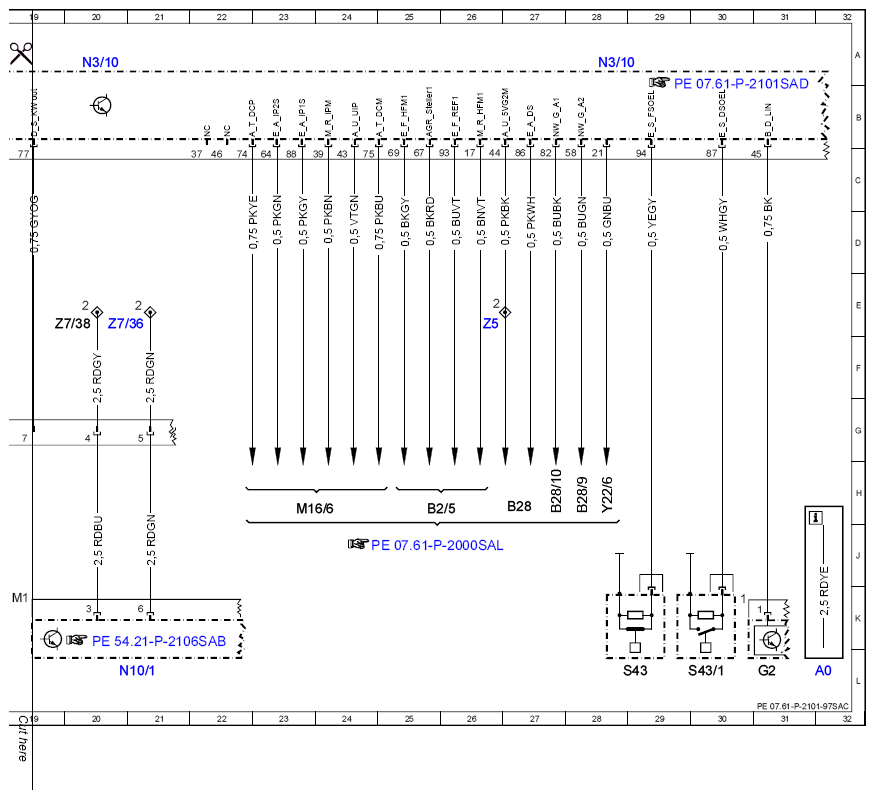

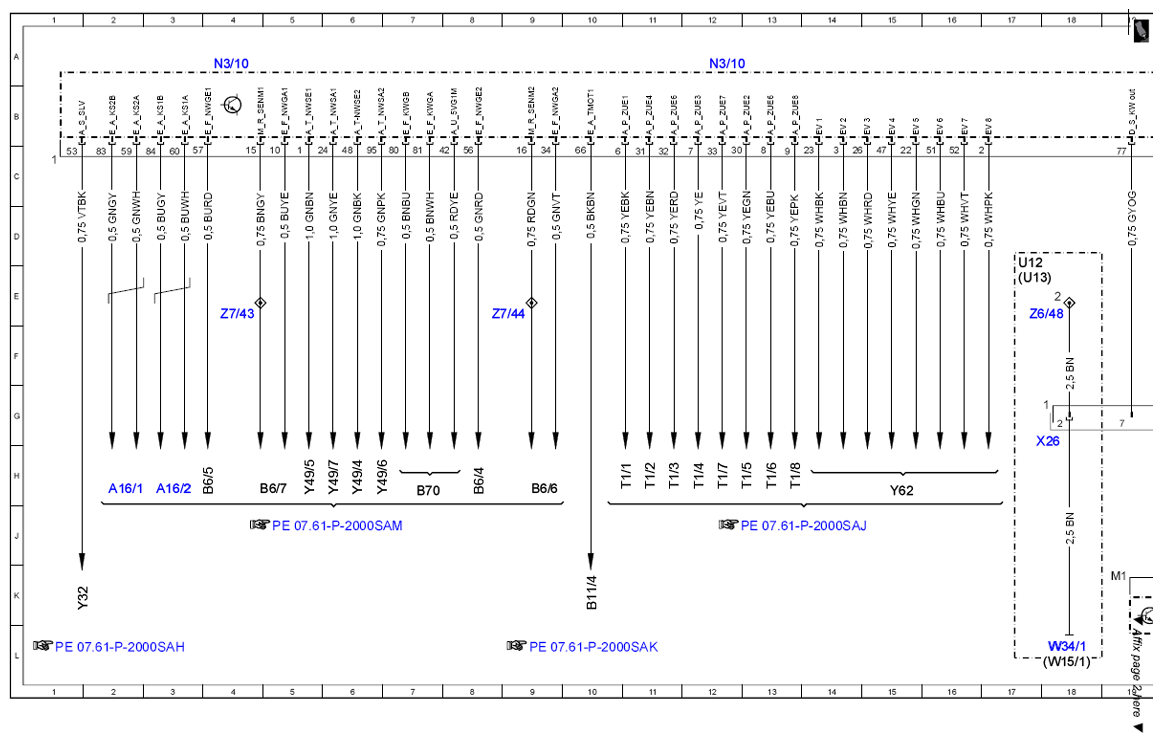

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97SAC
ENGINE 273 in MODEL 221.0 /1 control unit N3/10, engine side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A16/1 | Right knock sensor 1 | 2H |
| A16/2 | Left knock sensor 2 | 3H |
| B11/4 | Coolant temperature sensor | 10K |
| B2/5 | Hot film mass air flow sensor | 25H |
| B28 | Pressure sensor | 27H |
| B28/10 | Right intake manifold tumble flap position sensor | 27H |
| B28/9 | Left intake manifold tumble flap position sensor | 28H |
| B6/4 | Left intake camshaft Hall sensor | 8H |
| B6/5 | Right intake camshaft Hall sensor | 4H |
| B6/6 | Left exhaust camshaft Hall sensor | 9H |
| B6/7 | Right exhaust camshaft Hall sensor | 5H |
| B70 | Crankshaft Hall sensor | 7H |
| G2 | Alternator | 31L |
| M16/6 | Throttle valve actuator | 23H |
| N10/1 | Front SAM control unit with fuse and relay module | 21L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| S43 | Oil level check switch | 29L |
| S43/1 | Oil pressure switch | 30L |
| T1/1 | Cylinder 1 ignition coil | 11H |
| T1/2 | Cylinder 2 ignition coil | 11H |
| T1/3 | Cylinder 3 ignition coil | 11H |
| T1/4 | Cylinder 4 ignition coil | 12H |
| T1/5 | Cylinder 5 ignition coil | 13H |
| T1/6 | Cylinder 6 ignition coil | 13H |
| T1/7 | Cylinder 7 ignition coil | 12H |
| T1/8 | Cylinder 8 ignition coil | 13H |
| U12 | Valid for left-hand drive vehicles | 17E |
| U13 | Valid for right-hand drive vehicles | 17E |
| W15/1 | Ground (right footwell) | 18L |
| W34/1 | Ground (electronics - left footwell) | 18L |
| X26 | Interior and engine wiring harness connector | 18H |
| Y22/6 | Variable intake manifold switchover valve | 28H |
| Y32 | Air pump switchover valve | 2K |
| Y49/4 | Left intake camshaft solenoid | 6H |
| Y49/5 | Right intake camshaft solenoid | 5H |
| Y49/6 | Left exhaust camshaft solenoid | 7H |
| Y49/7 | Right exhaust camshaft solenoid | 6H |
| Y62 | Fuel injection valves | 15H |
| Z5 | Connector sleeve (solder connector in harness) | 26E |
| Z6/48 | Ground connector sleeve | 18E |
| Z7/36 | Circuit 87 M2e connector sleeve | 20E |
| Z7/38 | Circuit 87 M1i connector sleeve | 20E |
| Z7/43 | Sensor ground connector sleeve | 4E |
| Z7/44 | Sensor ground connector sleeve | 9E |
