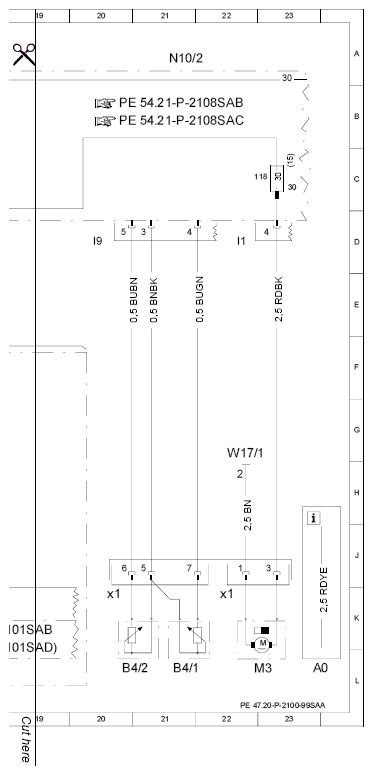

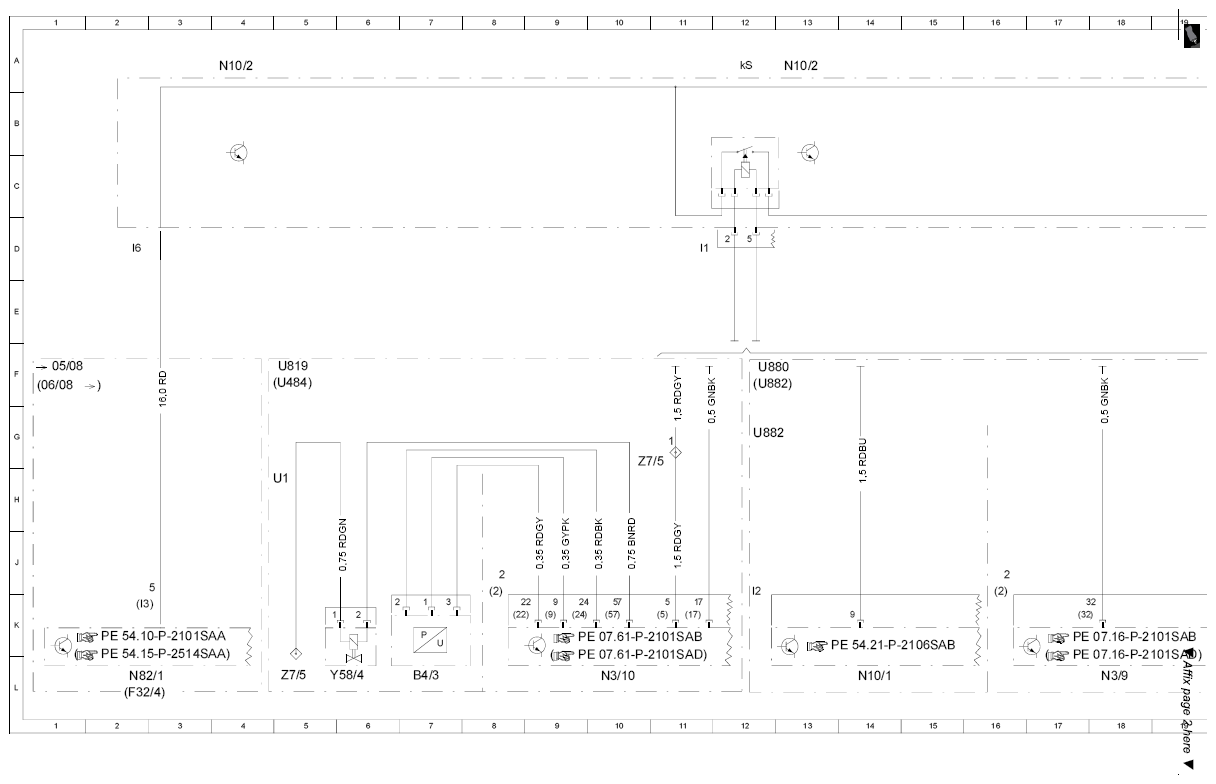

Wiring diagram for fuel pump - PE47.20-P-2100-99SAA
ENGINE 272, 273 in MODEL 221.0 /1 up to Model Year 2008 /AEJ 07
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23 L |
| B4/1 | Left fuel level sensor | 18 L |
| B4/1x1 | Left tank half fuel level sensor connector | 17 K |
| B4/2 | Right fuel level sensor | 17 L |
| B4/3 | Fuel tank pressure sensor | 7 L |
| M3 | Fuel pump (FP) | 19 L |
| M3x1 | Fuel pump connector | 19 K |
| N10/2 | Rear SAM control module with fuse and relay module | 4 A |
| N10/2 | Rear SAM control module with fuse and relay module | 12 A |
| N10/2 | Rear SAM control module with fuse and relay module | 19 A |
| N10/2f118 | Fuse 118 | 19 C |
| N10/2kS | Fuel pump relay module | 11 A |
| N3/10 | ME-SFI [ME] control module | 10 L |
| N3/9 | CDI control module | 14 L |
| N82/1 | Vehicle power supply control unit | 2 L |
| U1 | Valid for {{USA}} | 5 H |
| U484 | Valid for M273 ME | 5 F |
| U819 | Valid for engine 272 | 5 F |
| U880 | Valid for engine 642 | 13 F |
| U882 | Valid for engine 629 | 13 F |
| W17/1 | Ground (left rear seat) | 19 H |
| Y58/4 | Activated charcoal filter shutoff valve | 6 L |
| Z7/5 | Circuit 87 connector sleeve | 5 L |
| Z7/5 | Circuit 87 connector sleeve | 11 H |
