| A0 |
Color code key |
48L |
| CAN |
B Interior CAN |
41K |
| M40 |
Multicontour seat pneumatic pump |
34L |
| M40/1 |
Pneumatic pump for dynamic seat control |
34L |
| N10/1 |
Front SAM control unit with fuse and relay module |
19L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
37L |
| N32/1 |
Left front seat control unit |
6L |

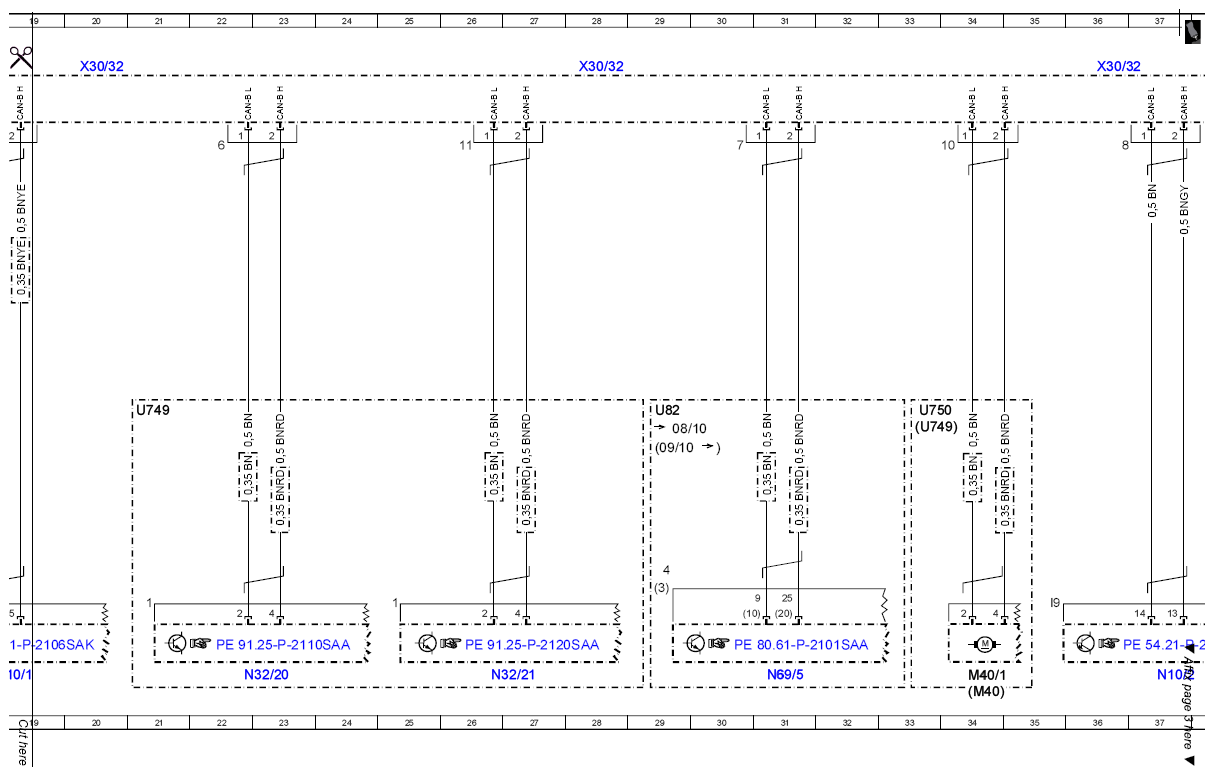

| N32/20 |
Left rear multicontour backrest control unit |
23L |
| N32/21 |
Right rear multicontour backrest control unit |
26L |
| N66/2 |
Backup camera control unit |
11L |

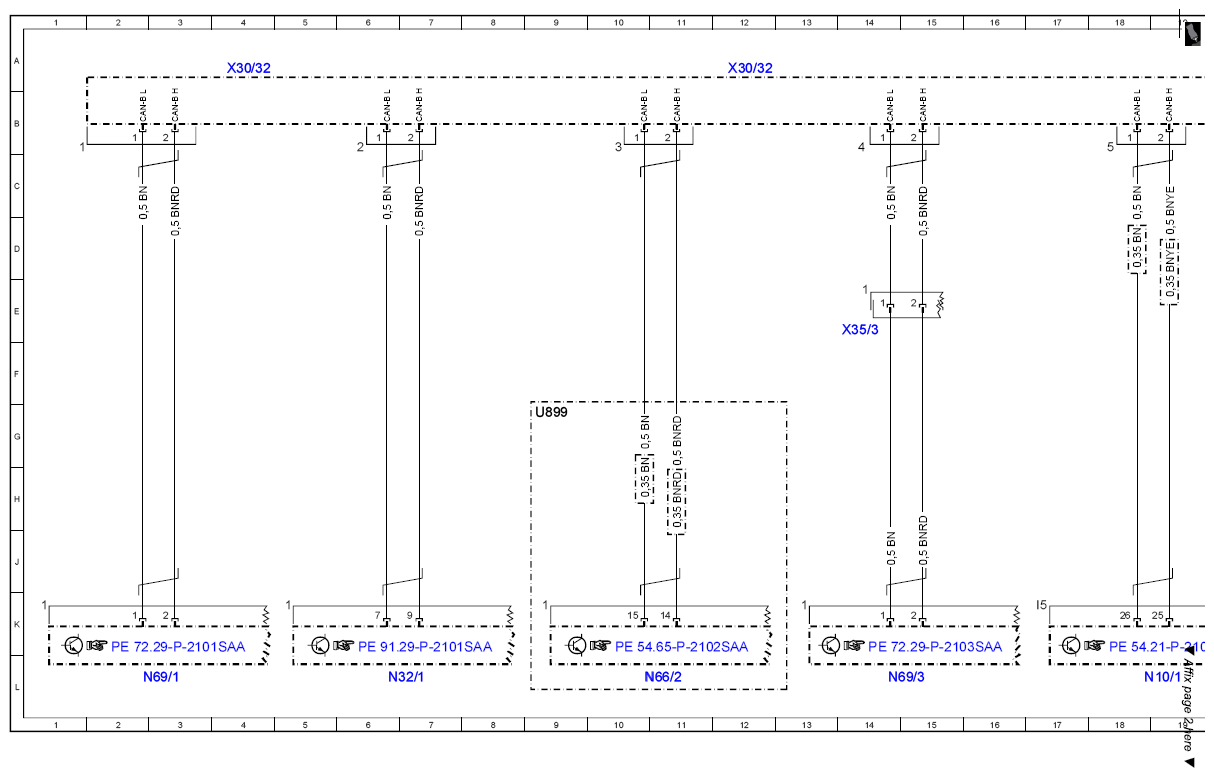

| N69/1 |
Left front door control unit |
3L |
| N69/3 |
Rear left door control unit |
14L |
| N69/5 |
KEYLESS-GO control unit |
31L |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
21G |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
33G |
| U750 |
Valid for dynamic seat (DS [FDS]) |
33G |
| U82 |
Valid for KEYLESS GO |
29G |
| U899 |
Valid for backup camera |
9G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
4A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
12A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
20A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
28A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
36A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
41A |

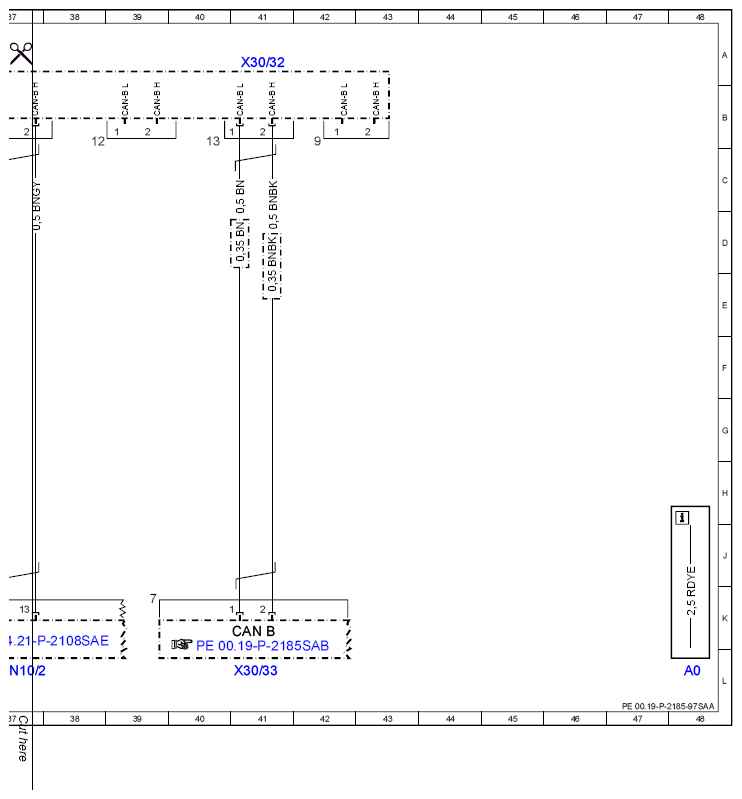

| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
41L |
| X35/3 |
Left rear door separation point |
14E |
