Prepare inner section of rear wheelhouse for installation - AR63.10-P-0610-02SX

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

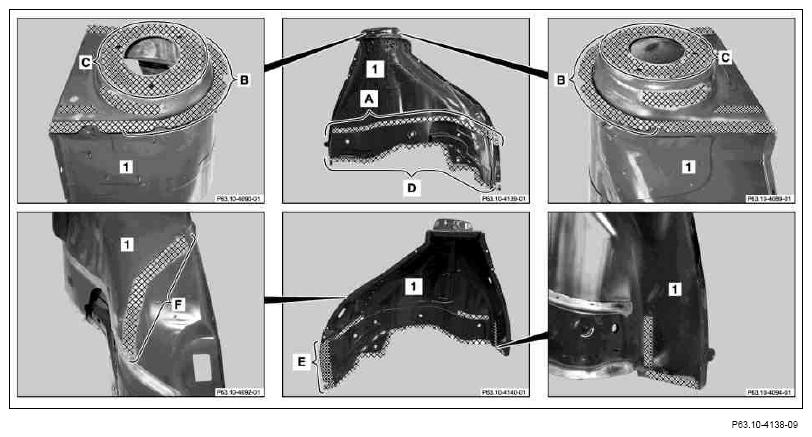

Fig 1: Identifying Inner Rear Wheelhouse Connection Surfaces

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on the left component for model 221 and must be performed analogously on the right side in the event of damage.

Grind connection surfaces on inner rear wheelhouse (1) down to bare metal in cross-hatched areas with round wire brush.
Grind spot weld flanges down to bare metal on both sides.
Using zinc dust paint, coat insides of spot weld flanges and riveted joints that were not additionally bonded.
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (areas A, B, C, D, E and F).

Observe pretreatment of bonding surfaces.
