Prepare rear longitudinal member for installation - AR64.20-P-1200-23SX
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

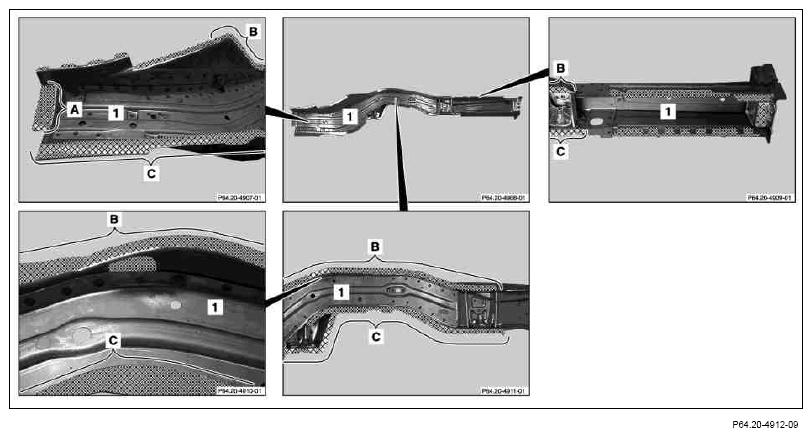

- Grind connection surfaces on rear longitudinal member (1) down to bare metal in cross-hatched areas with
round wire brush.
- Coat insides of spot welding flange and rivet connections not additionally glued with zinc dust paint.

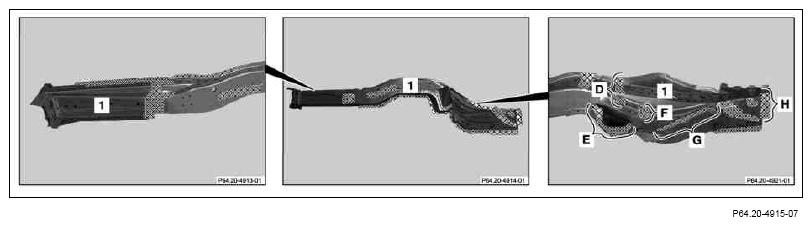

- Grind connection surfaces on rear longitudinal member (1) down to bare metal in cross-hatched areas with
- Coat insides of spot welding flange and rivet connections not additionally glued with zinc dust paint.

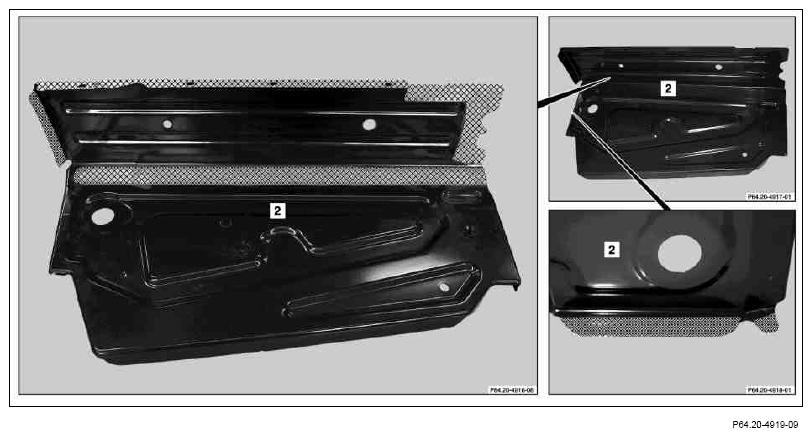

- Grind connection surfaces on rear locking lug (2) down to bare metal in cross-hatched areas with
- Coat insides of spot weld flanges with zinc dust paint.

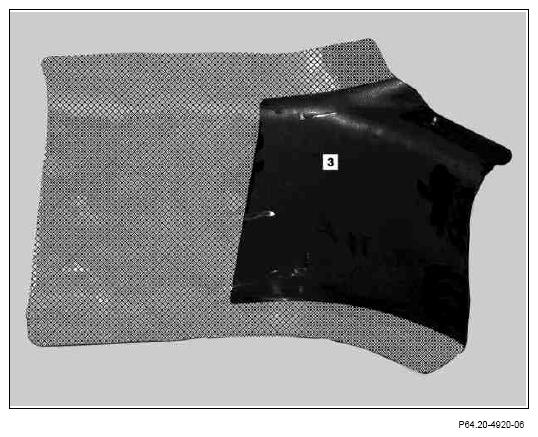

- Grind connection surfaces on locking lug above rear axle (3) down to bare metal in cross-hatched areas with
- Coat insides of spot weld flanges with zinc dust paint.
Grind spot weld flanges down to bare metal on both sides.
Do not coat gluing surfaces with zinc dust paint to prevent adhesion problems (areas A, B and C).
Observe preliminary treatment of surfaces to be bonded.
Grind spot weld flanges down to bare metal on both sides.
Do not coat gluing surfaces with zinc dust paint to prevent adhesion problems (areas D, E, F, G and H).
Observe preliminary treatment of surfaces to be bonded.
Grind spot weld flanges down to bare metal on both sides.
Grind spot weld flanges down to bare metal on both sides.
