Partially prepare rear longitudinal member - AR64.20-P-1260-02SX
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

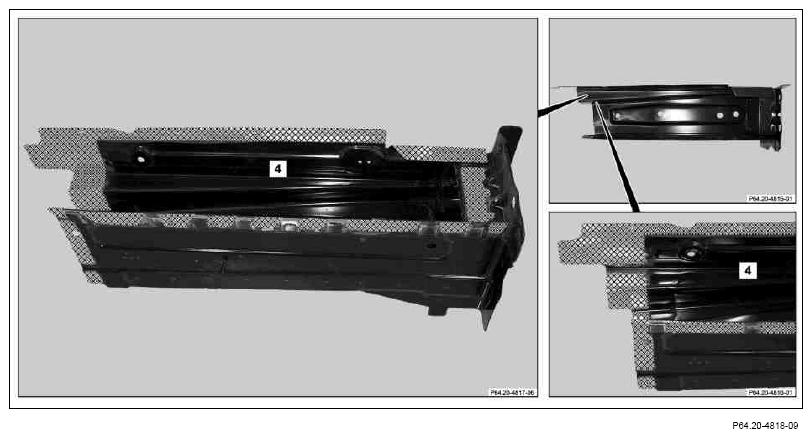

- Partially grind mating surfaces on rear longitudinal member (4) down to bare metal in shaded areas with
round wire brush or
Grind spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.

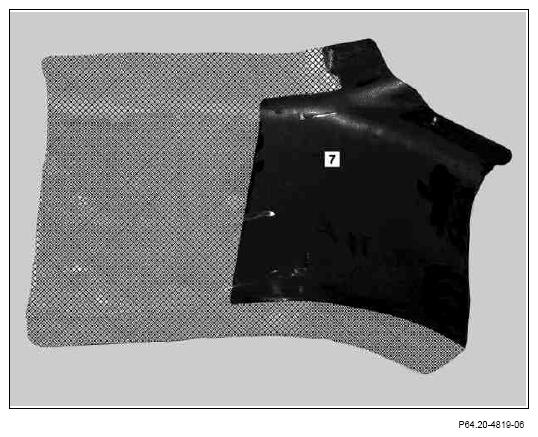

- Grind mating surfaces on locking lug above rear axle (7) down to bare metal in shaded areas with
- Coat insides of spot weld flanges with zinc dust paint.
