Remove/install rear bumper - AR88.20-P-2200SXS
MODEL 221.1 with CODE (Z07) Top protection
Shown on right side of vehicle.
| Remove/install | |||
| 1 | Remove trunk floor paneling as well as left and right side paneling in trunk. | AR68.30-P-4600SXS | |

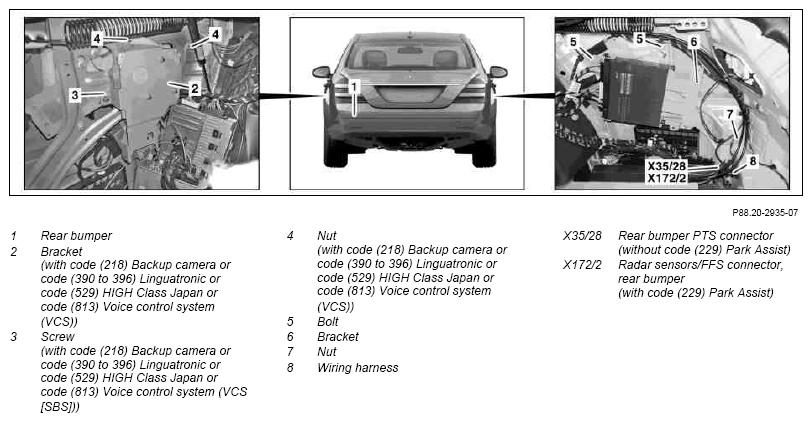

| 2.1 | Disconnect PTS, rear bumper connector (X35/28) | On vehicles without code (229) Park Assist | |
| 2.2 | Disconnect radar sensors/FFS connector, rear bumper (X172/2) | On vehicles with code (229) Park Assist | |
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 3.1 | Loosen bolt (3) and nuts (4), remove bracket (2) and lay down to side. | On vehicles with code (218) Backup camera or Code (390 to 396) Linguatronic or Code (529) HIGH Class Japan or Code (813) Voice control system (VCS) |
|
| 4 | Unscrew bolts (5), loosen nut (7), remove bracket (6) and lay down to side. | ||

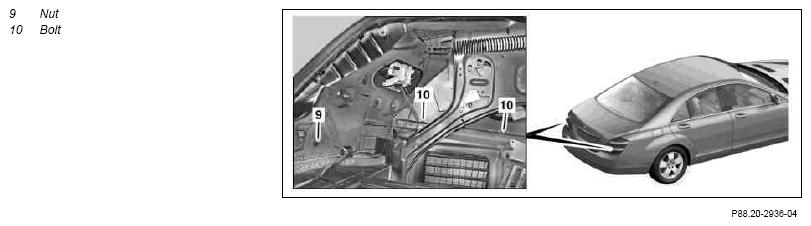

| 5 | Unscrew bolts (10) on both sides of vehicle. | ||
| 6 | Unscrew left and right nut (9) inside of rear center section. | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between lifting platform columns and position the four support plates at the lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 7 | Raise vehicle with lifting platform | ||

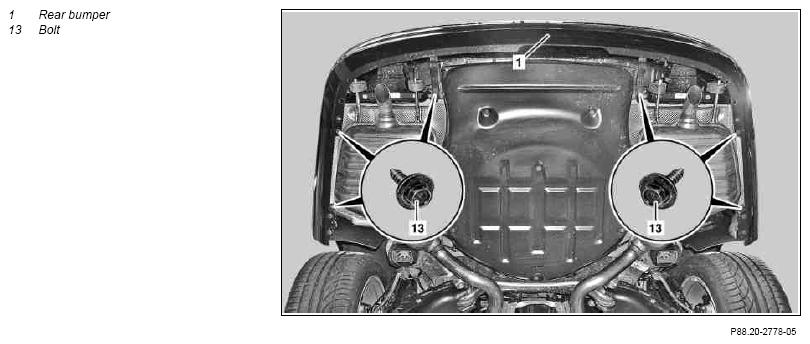

| 8 | Unscrew bolts (13) at bottom of rear bumper (1). | ||

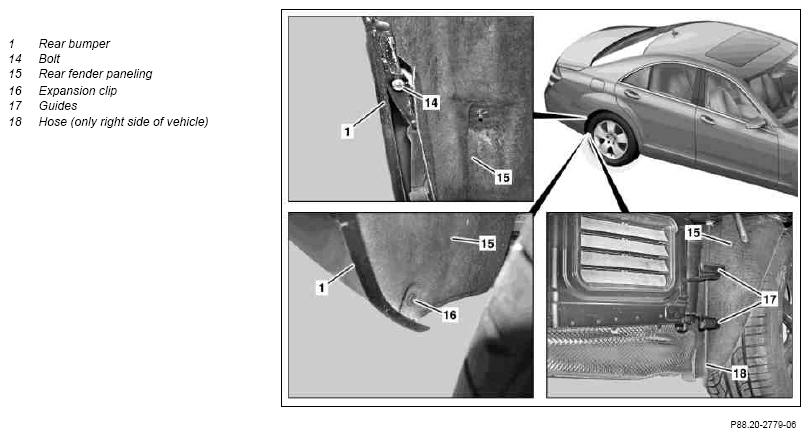

| 9 | Loosen left and right rear fender paneling (15) until bolt (14) is accessible. | Figure | |
| 10 | Remove bolts (14) | ||
| 11 | Remove expansion clip (16) from left and right rear fender paneling (15). | ||
| 12 | Remove rear bumper (1) with aid of helper | Install hose (18) in bracket on rear bumper (1) on right side of vehicle. Check gaps on rear bumper (1), adjust if necessary |
|
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01SX | ||
| *BE60.00-P-1003-01R | |||
| Figure | |||
| 13 | Guide electrical wiring harness (8) through opening into rear center section. | ||
| 14.1 | Disassemble rear bumper (1) | When replacing rear bumper (1). | AR88.20-P-2100SX |
| 15 | Install in the reverse order |
CHECK VALUES FOR GAPS
| Number | Designation | Model 221 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01R | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | 4 (±0.5) |
| Trunk lid to taillamp | Dimension "K" | mm | 4 (±0.5) | ||
| Trunk lid to bumper | Dimension "L" | mm | 5.5 (±1.5) | ||
| Rear fender to taillamp | Dimension "M" | mm | 2.5 (±0.5) | ||
| Trunk lid cover to taillamp | Dimension "N" | mm | 4 (±0.5) | ||
| See picture | AR60.00-P-0700-01SX | ||||
