Retrofit rear entertainment screen - AZ82.60-P-0015-03SXA
The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

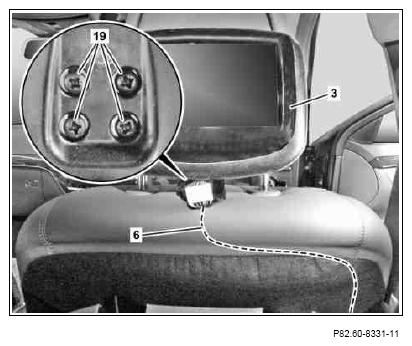

- Slide screen (3) onto bracket.
- Create electrical connection between screen (3) and wiring harness (6).
- Route electrical connector in opening of backrest.
- Slide screen (3) further onto bracket until lower edge of screen (3) makes contact with backrest.
- Tighten screen (3) at bracket from front using screws/bolts (19) contained in installation kit.
