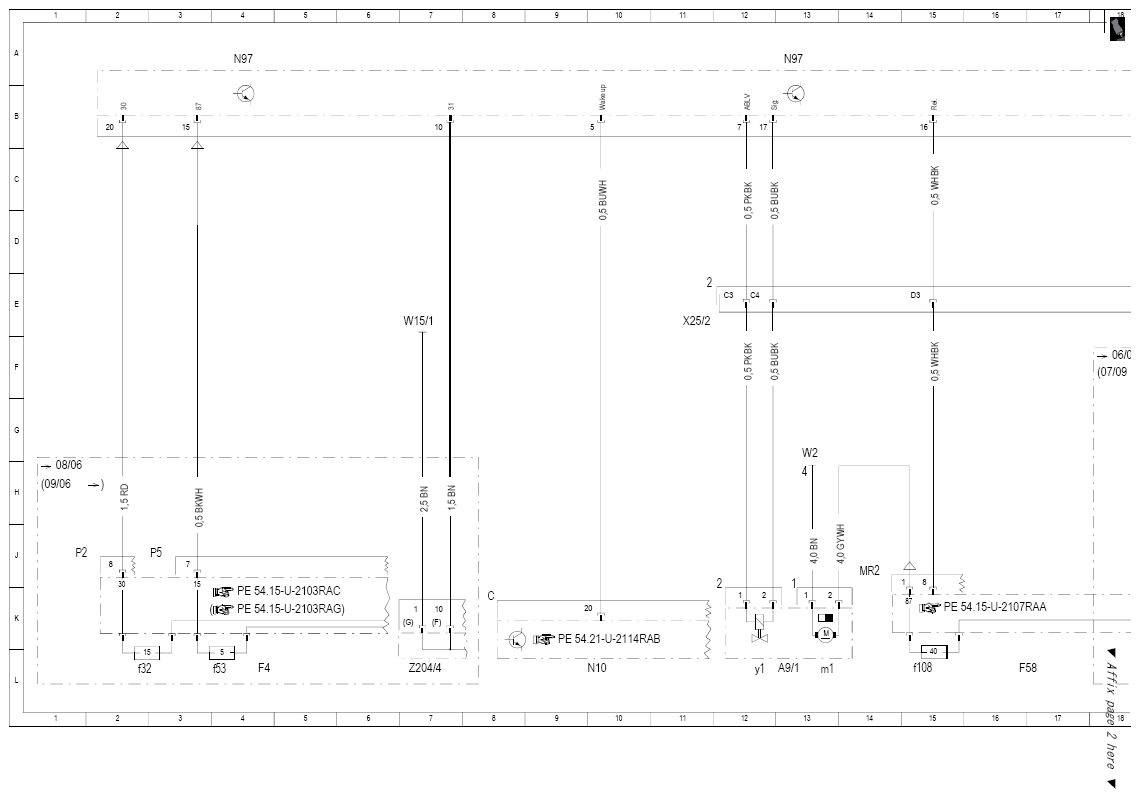

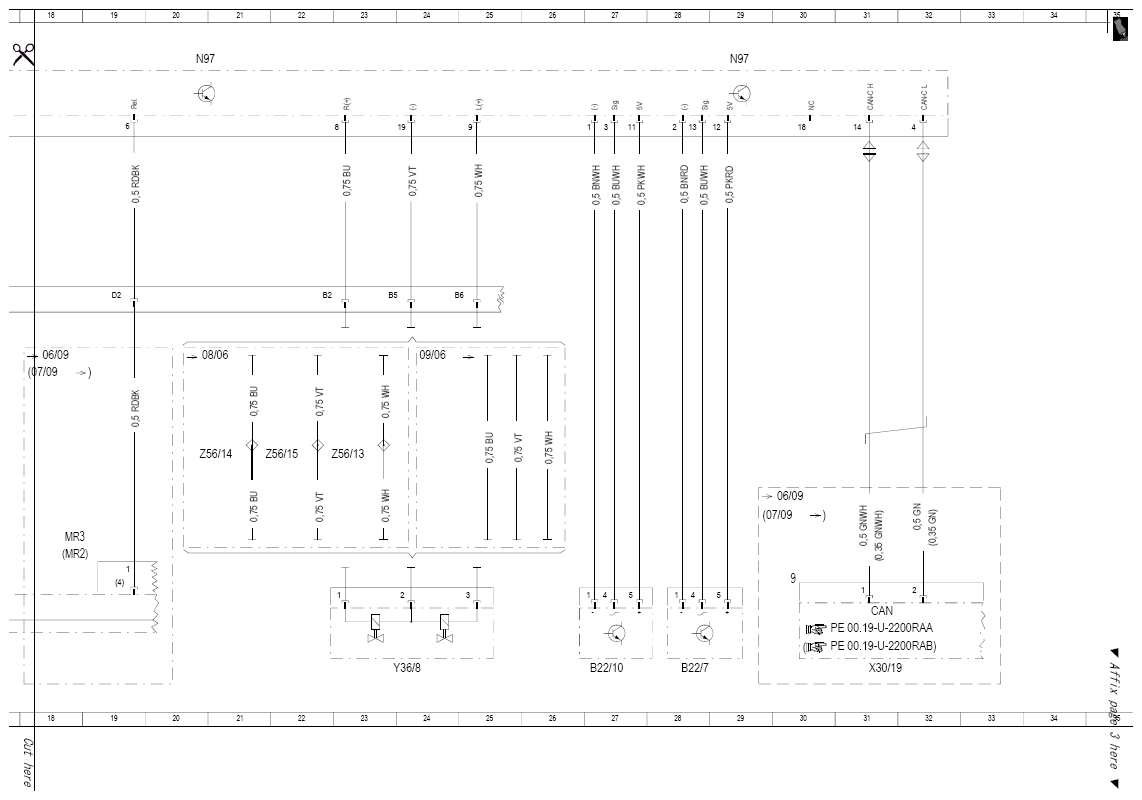

| A9/1 |
AIRMATIC compressor unit |
13 L |
| A9/1m1 |
Air compressor motor |
13 L |
| A9/1y1 |
AIRMATIC pressure reduction valve |
12 L |
| B22/10 |
Right rear level sensor |
27 L |
| B22/7 |
Left rear level sensor |
28 L |
| F4 |
Load compartment fuse and relay box |
4 L |
| F4f32 |
Fuse 32 |
2 L |
| F4f53 |
Fuse 53 |
3 L |
| F58 |
Engine compartment fuse and relay box |
16 L |
| F58f108 |
Fuse 108 |
15 L |
| N10 |
Front SAM control unit |
9 L |
| N97 |
Rear axle level control system control unit |
4 A |
| N97 |
Rear axle level control system control unit |
13 A |
| N97 |
Rear axle level control system control unit |
20 A |
| N97 |
Rear axle level control system control unit |
29 A |
| W15/1 |
Ground (right footwell) |
7 E |
| W2 |
Ground (right front, at lamp unit) |
13 H |
| X25/2 |
Engine compartment/interior compartment connector |
11 E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
31 L |
| Y36/8 |
Electronic rear axle level control valve unit |
23 L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
7 L |
| Z56/13 |
Left rear air suspension valve engine compartment solder point |
22 H |
| Z56/14 |
Right rear air suspension valve engine compartment solder point |
20 H |
| Z56/15 |
Rear air suspension valve engine compartment solder point (-) |
21 H |
