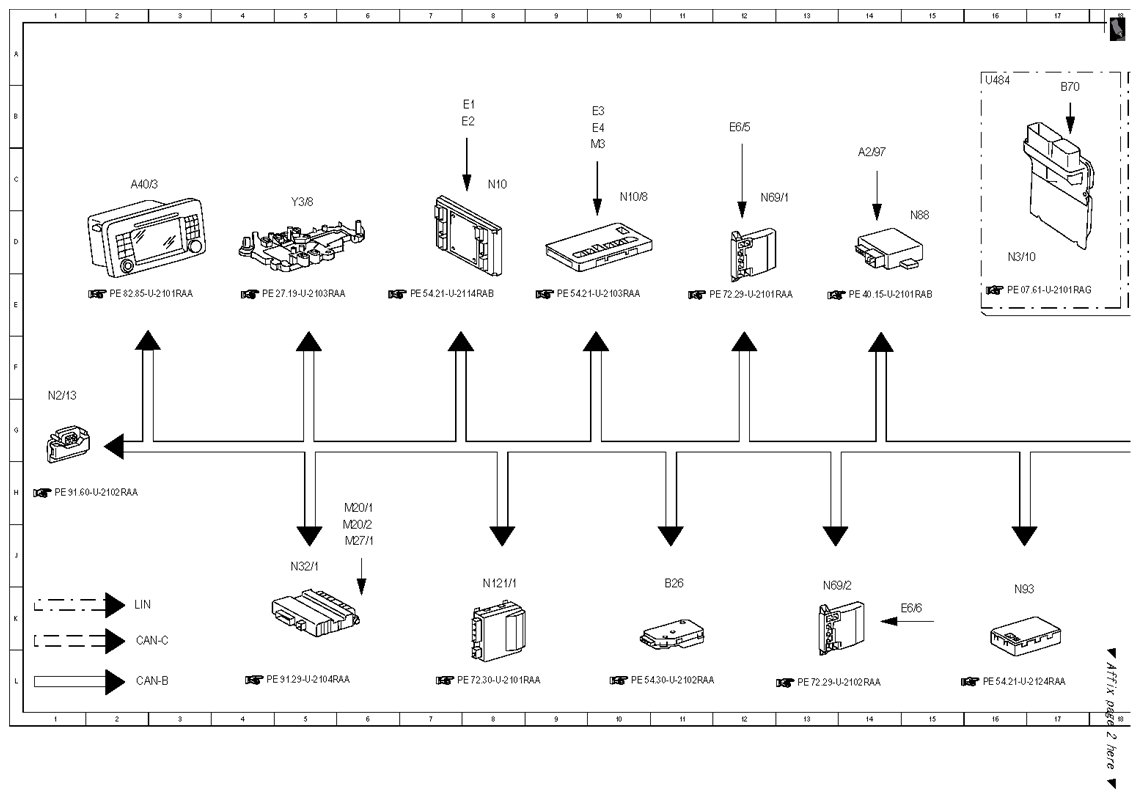

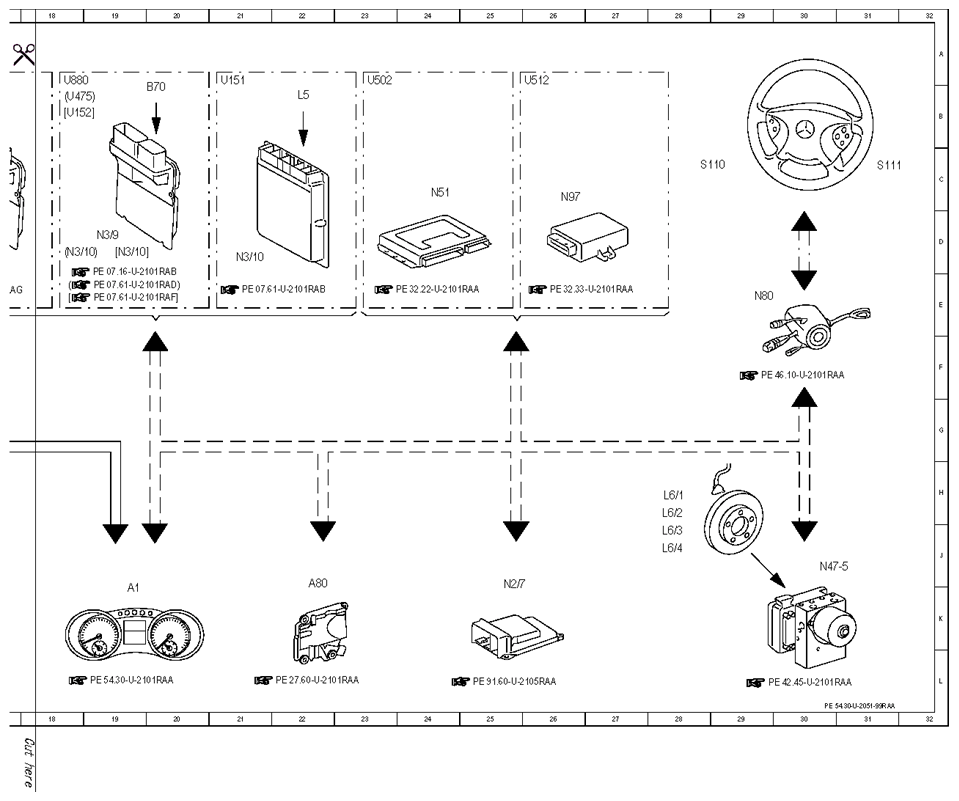

| A1 |
Instrument cluster |
19 K |
| A2/97 |
Central TPM [RDK] antenna |
14 C |
| A40/3 |
COMAND operating, display and control unit |
2 C |
| A80 |
Intelligent servo module for DIRECT SELECT |
22 K |
| B26 |
Electronic compass |
11 K |
| B70 |
Crankshaft Hall sensor |
17 B |
| B70 |
Crankshaft Hall sensor |
19 B |
| E1 |
Left front lamp unit |
7 B |
| E2 |
Right front lamp unit |
7 B |
| E3 |
Left taillamp |
10 B |
| E4 |
Right taillamp |
10 B |
| E6/5 |
Left outside mirror turn signal lamp |
12 B |
| E6/6 |
Right outside mirror turn signal lamp |
14 K |
| L5 |
Crankshaft position sensor |
22 B |
| L6/1 |
Left front RPM sensor |
28 H |
| L6/2 |
Right front RPM sensor |
28 H |
| L6/3 |
Left rear RPM sensor |
28 J |
| L6/4 |
right rear RPM sensor |
28 J |
| M20/1 |
Steering column in/out motor |
6 H |
| M20/2 |
Steering column up/down motor |
6 J |
| M27/1 |
Seat fore/aft adjustment motor, driver |
6 J |
| M3 |
Right fuel pump |
10 C |
| N10 |
Front SAM control unit |
8 C |
| N10/8 |
Rear SAM control unit |
10 C |
| N121/1 |
Rear-end door closing control unit |
8 K |
| N2/13 |
WSS (Weight Sensing System) control unit |
1 G |
| N2/7 |
Restraint systems control unit |
25 K |
| N3/10 |
ME-SFI [ME] control unit |
16 D |
| N3/10 |
ME-SFI [ME] control unit |
18 D |
| N3/10 |
ME-SFI [ME] control unit |
18 D |
| N3/10 |
ME-SFI [ME] control unit |
19 D |
| N3/10 |
ME-SFI [ME] control unit |
19 D |
| N3/10 |
ME-SFI [ME] control unit |
21 D |
| N3/9 |
CDI control unit |
19 D |
| N32/1 |
Driver front seat adjustment control unit with memory |
5 J |
| N47-5 |
ESP control unit |
30 J |
| N51 |
AIRMATIC with ADS control unit |
24 C |
| N69/1 |
Left front door control unit |
12 C |
| N69/2 |
Right front door control unit |
13 K |
| N80 |
Steering column module |
29 E |
| N88 |
TPM [RDK] control unit |
15 D |
| N93 |
Central gateway control unit |
16 K |
| N97 |
Rear axle level control system control unit |
26 C |
| S110 |
Left multifunction steering wheel button group |
28 C |
| S111 |
Right multifunction steering wheel button group |
31 C |
| U151 |
Valid for engine 113 |
21 B |
| U152 |
Valid for engine 156 |
18 B |
| U152 |
Valid for engine 156 |
18 B |
| U475 |
Valid for M 272 |
18 B |
| U475 |
Valid for M 272 |
18 B |
| U484 |
Valid for M273 ME |
16 B |
| U502 |
Valid for AIRMATIC |
23 B |
| U512 |
Valid for level control |
26 B |
| U880 |
Valid for engine 642 |
18 B |
| Y3/8 |
Electric control unit (VGS) |
5 D |
