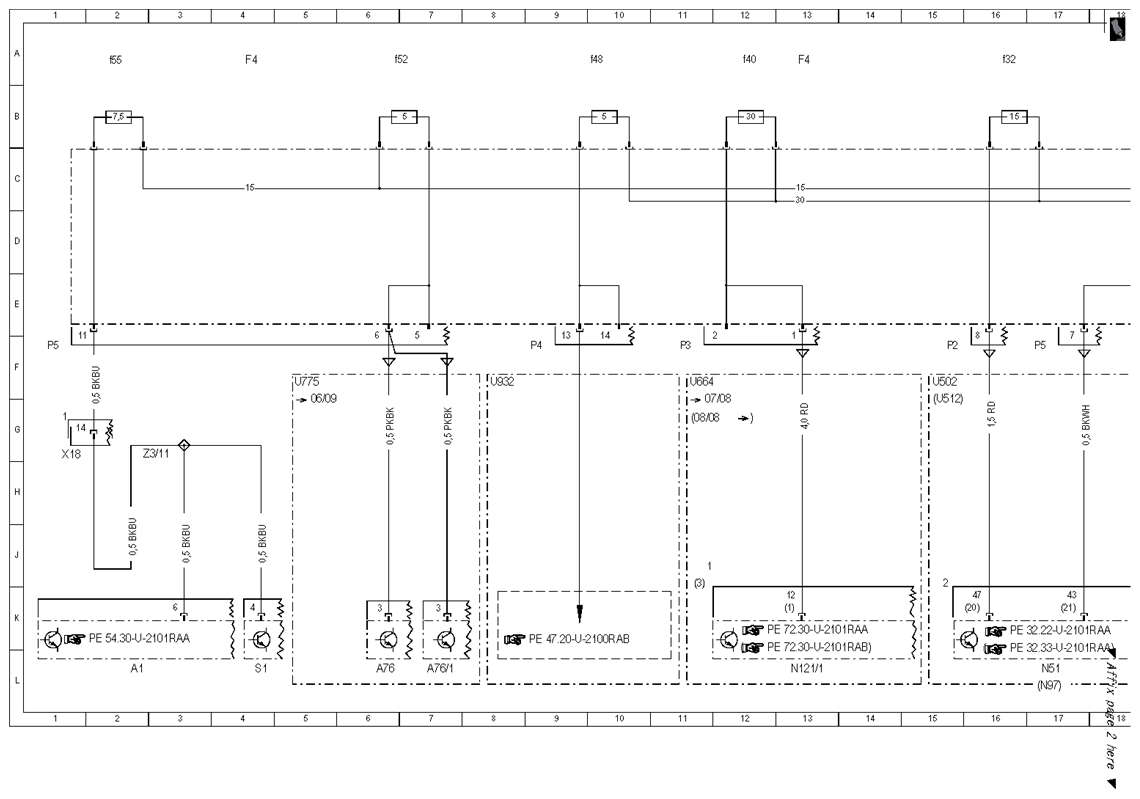

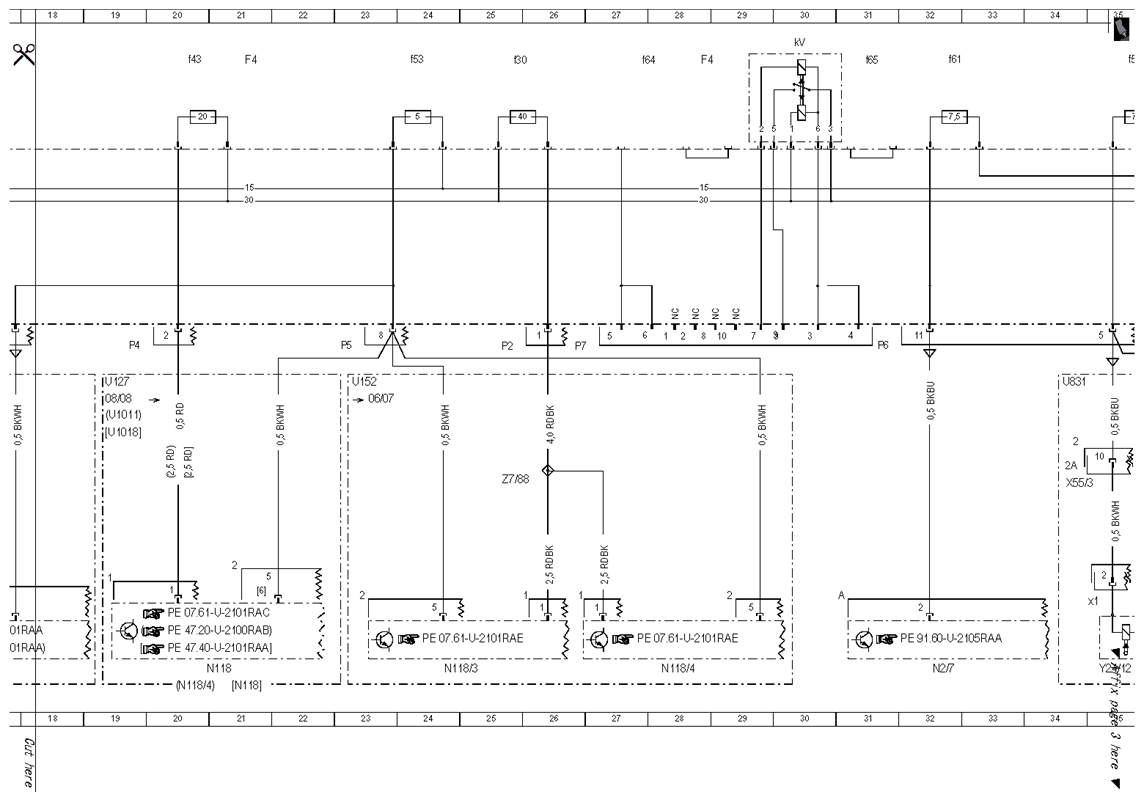

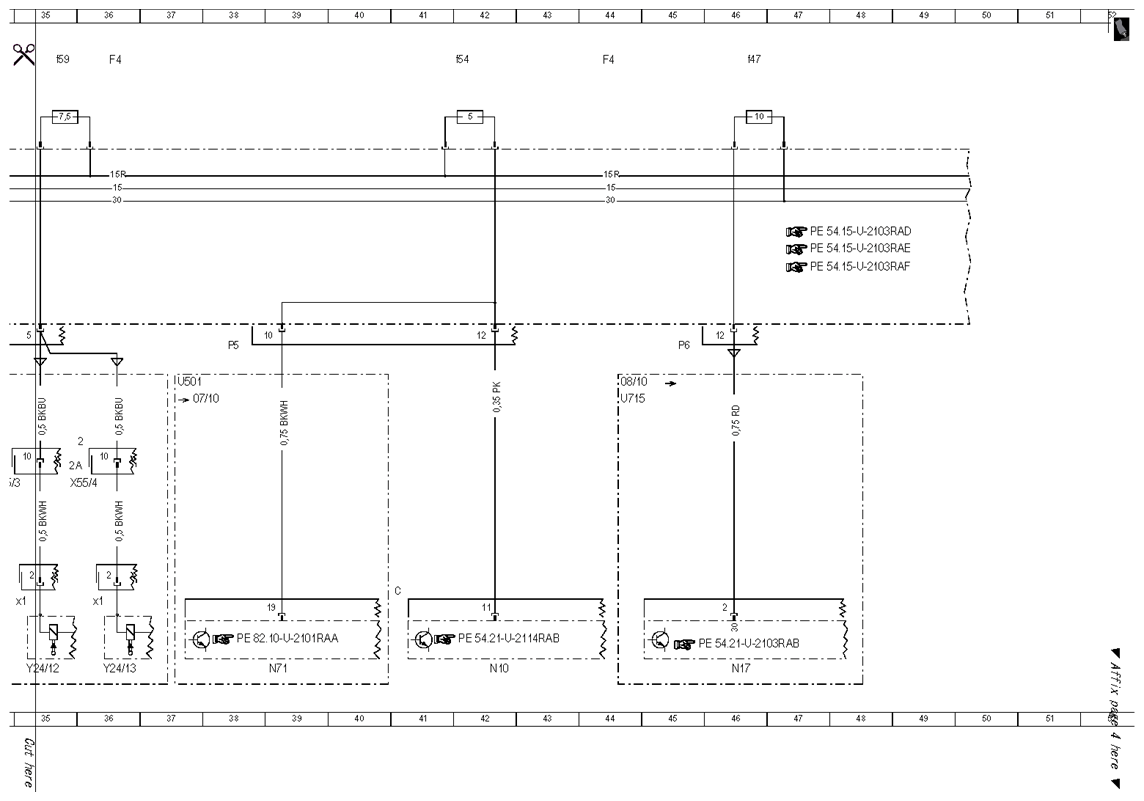

| A1 |
Instrument cluster |
2 L |
| A76 |
Left front reversible emergency tensioning retractor |
6 L |
| A76/1 |
Right front reversible emergency tensioning retractor |
7 L |
| F4 |
Load compartment fuse and relay box |
4 A |
| F4 |
Load compartment fuse and relay box |
13 A |
| F4 |
Load compartment fuse and relay box |
21 A |
| F4 |
Load compartment fuse and relay box |
28 A |
| F4 |
Load compartment fuse and relay box |
36 A |
| F4 |
Load compartment fuse and relay box |
44 A |
| F4f30 |
Fuse 30 |
25 A |
| F4f32 |
Fuse 32 |
16 A |
| F4f40 |
Fuse 40 |
12 A |
| F4f43 |
Fuse 43 |
20 A |
| F4f47 |
Fuse 47 |
46 A |
| F4f48 |
Fuse 48 |
9 A |
| F4f52 |
Fuse 52 |
6 A |
| F4f53 |
Fuse 53 |
23 A |
| F4f54 |
Fuse 54 |
41 A |
| F4f55 |
Fuse 55 |
2 A |
| F4f59 |
Fuse 59 |
35 A |
| F4f61 |
Fuse 61 |
32 A |
| F4f64 |
Fuse 64 |
27 A |
| F4f65 |
Fuse 65 |
31 A |
| F4kV |
Backup relay 2 |
30 A |
| N10 |
Front SAM control unit |
42 L |
| N118 |
Fuel pump control unit |
20 L |
| N118 |
Fuel pump control unit |
21 L |
| N118/3 |
Left fuel pump control unit |
24 L |
| N118/4 |
Right fuel pump control unit |
20 L |
| N118/4 |
Right fuel pump control unit |
28 L |
| N121/1 |
Rear-end door closing control unit |
13 L |
| N17 |
Illuminated door sill molding actuation module LED |
46 L |
| N2/7 |
Restraint systems control unit |
32 L |
| N51 |
AIRMATIC with ADS control unit |
17 L |
| N71 |
Headlamp range adjustment control unit |
39 L |
| N97 |
Rear axle level control system control unit |
17 L |
| S1 |
Rotary light switch |
4 L |
| U1011 |
Valid for engine 642.872 |
19 G |
| U1018 |
Valid for gasoline engine 276 |
19 G |
| U127 |
Valid for engine 272, engine 273 KE |
19 F |
| U152 |
Valid for engine 156 |
23 F |
| U501 |
Valid for xenon headlamps |
37 F |
| U502 |
Valid for AIRMATIC |
15 F |
| U512 |
Valid for level control |
15 G |
| U664 |
Valid for automatic rear-end door |
11 F |
| U715 |
Valid for illuminated door sills |
44 G |
| U775 |
Valid for reversible emergency tensioning retractor |
5 F |
| U831 |
Valid for NECK-PRO head restraints |
34 F |
| U932 |
Valid for engine 642 BLUETEC |
8 F |
| X18 |
Interior/cockpit connector |
1 H |
| X55/3 |
Left front seat contacting strip |
34 H |
| X55/4 |
Right front seat contacting strip |
35 H |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
35 L |
| Y24/12x1 |
Driver NECK-PRO head restraint solenoid connector |
34 K |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
36 L |
| Y24/13x1 |
Front passenger NECK-PRO head restraint solenoid connector |
35 K |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
2 H |
| Z7/88 |
Fuel pump control unit circuit 30 connector sleeve |
25 H |
