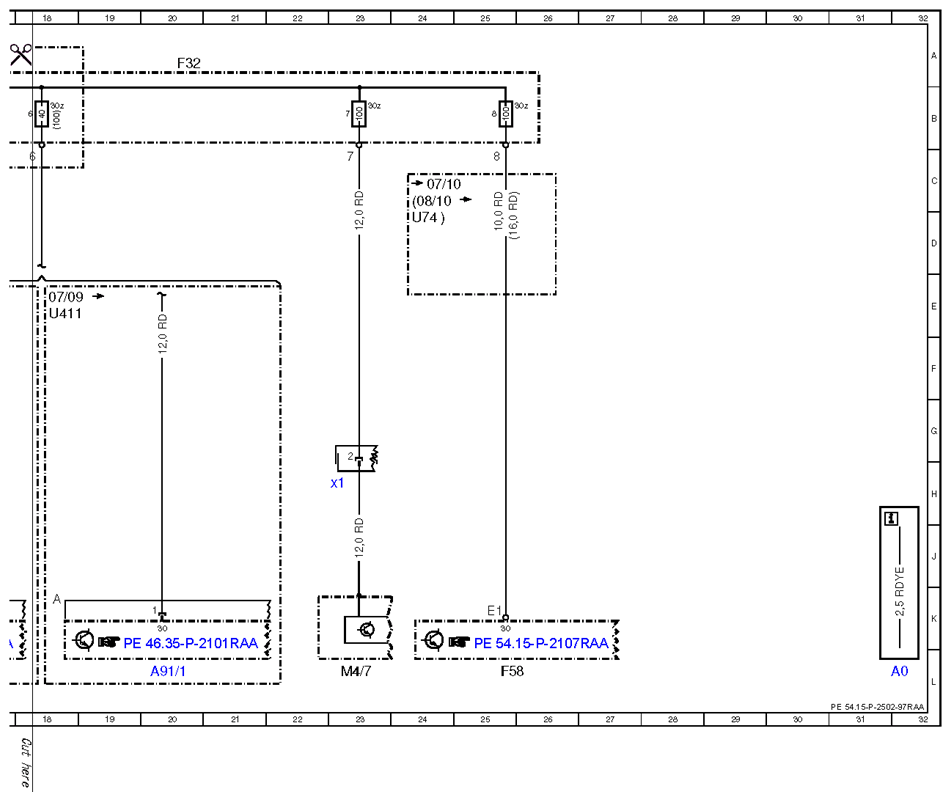

| A0 |
Color code key |
32L |
| A91/1 |
Electrohydraulic power steering |
20L |

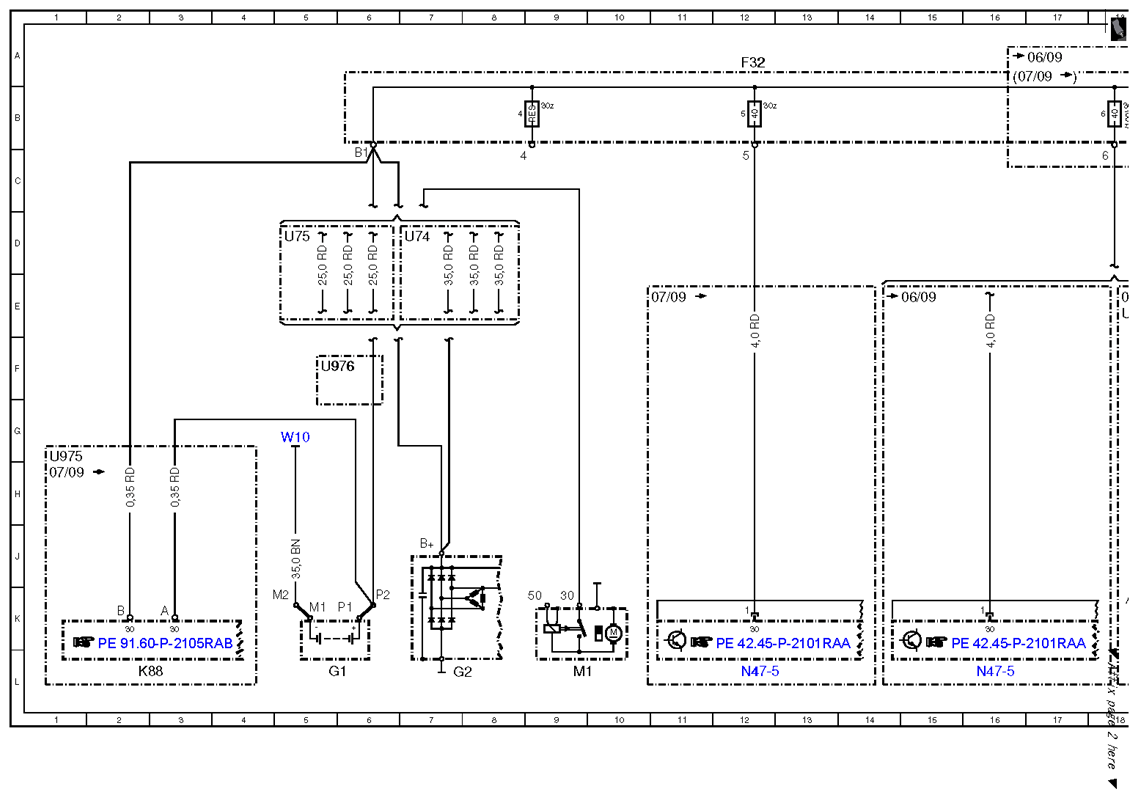

| F32 |
Front prefuse |
12A |
| F32 |
Front prefuse |
20A |
| F32f4 |
Fuse 4 |
9B |
| F32f5 |
Fuse 5 |
12B |
| F32f6 |
Fuse 6 |
18B |
| F32f7 |
Fuse 7 |
23B |
| F32f8 |
Fuse 8 |
25B |
| F58 |
Engine compartment fuse and relay box |
25L |
| G1 |
Battery |
5L |
| G2 |
Alternator |
8L |
| K88 |
Pyrotechnical separator |
2L |
| M1 |
Starter |
9L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
23L |
| M4/7x1 |
Engine and AC electric suction fan with integrated control connector 1 |
23H |
| N47-5 |
ESP control unit |
16L |
| N47-5 |
ESP control unit |
12L |
| U411 |
Valid for EHPS |
18E |
| U74 |
Valid for diesel engines |
7D |
| U74 |
Valid for diesel engines |
24D |
| U75 |
Valid for gasoline engines |
5D |
| U975 |
Valid for pyrofuse |
1G |
| U976 |
Not valid for pyrofuse |
5F |
| W10 |
Ground (battery) |
5G |
