| A32 |
AC air recirculation unit |
32 L |
| F3 |
Cockpit fuse box |
4 L |
| F33 |
Battery compartment prefuse box |
4 A |
| F33 |
Battery compartment prefuse box |
12 A |
| F33 |
Battery compartment prefuse box |
20 A |
| F33 |
Battery compartment prefuse box |
28 A |
| F33 |
Battery compartment prefuse box |
35 A |

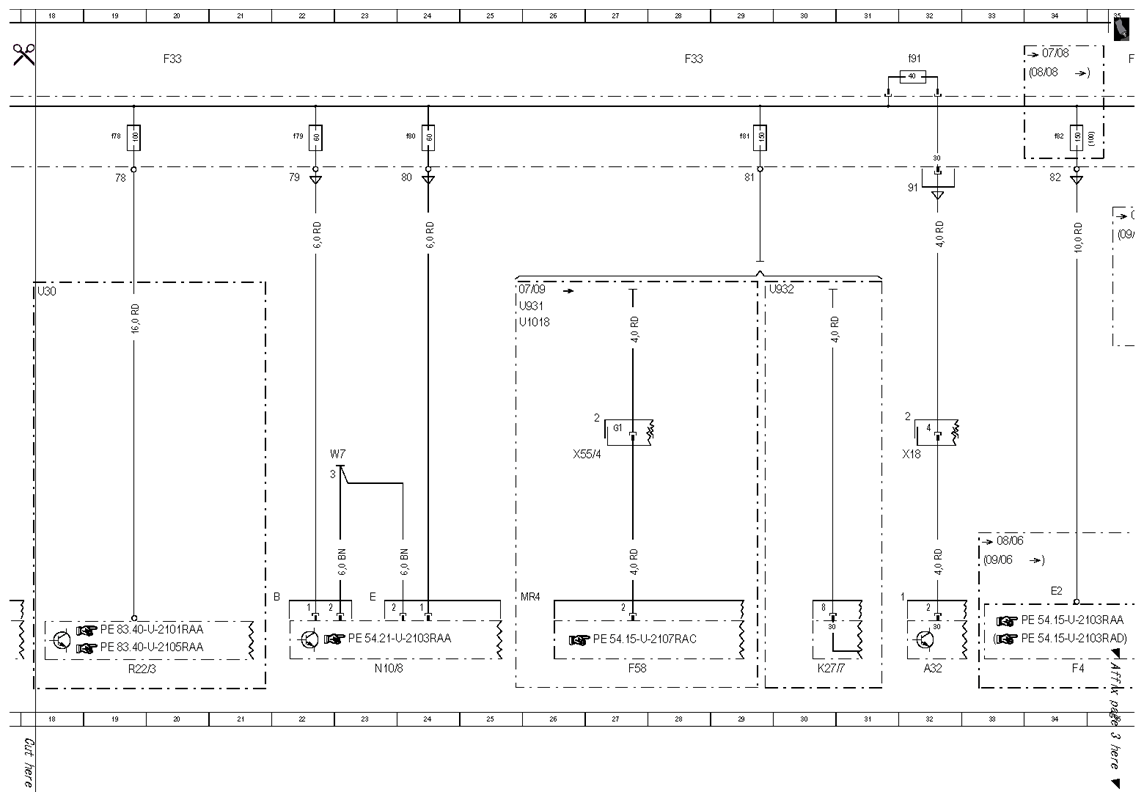

| F33f78 |
Fuse 78 |
19 B |
| F33f79 |
Fuse 79 |
22 B |
| F33f80 |
Fuse 80 |
23 B |
| F33f81 |
Fuse 81 |
29 B |
| F33f82 |
Fuse 82 |
34 B |
| F33f83 |
Fuse 83 |
15 C |
| F33f84 |
Fuse 84 |
12 C |
| F33f85 |
Fuse 85 |
8 C |
| F33f86 |
Fuse 86 |
3 C |
| F33f87 |
Fuse 87 |
10 C |

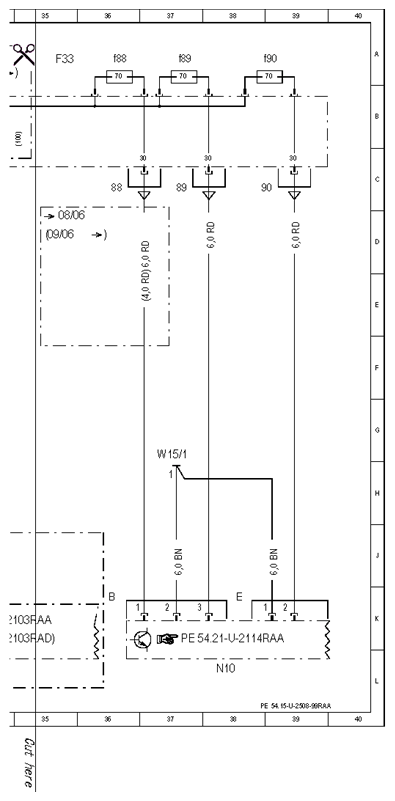

| F33f88 |
Fuse 88 |
36 A |
| F33f89 |
Fuse 89 |
37 A |
| F33f90 |
Fuse 90 |
38 A |
| F33f91 |
Fuse 91 |
31 A |

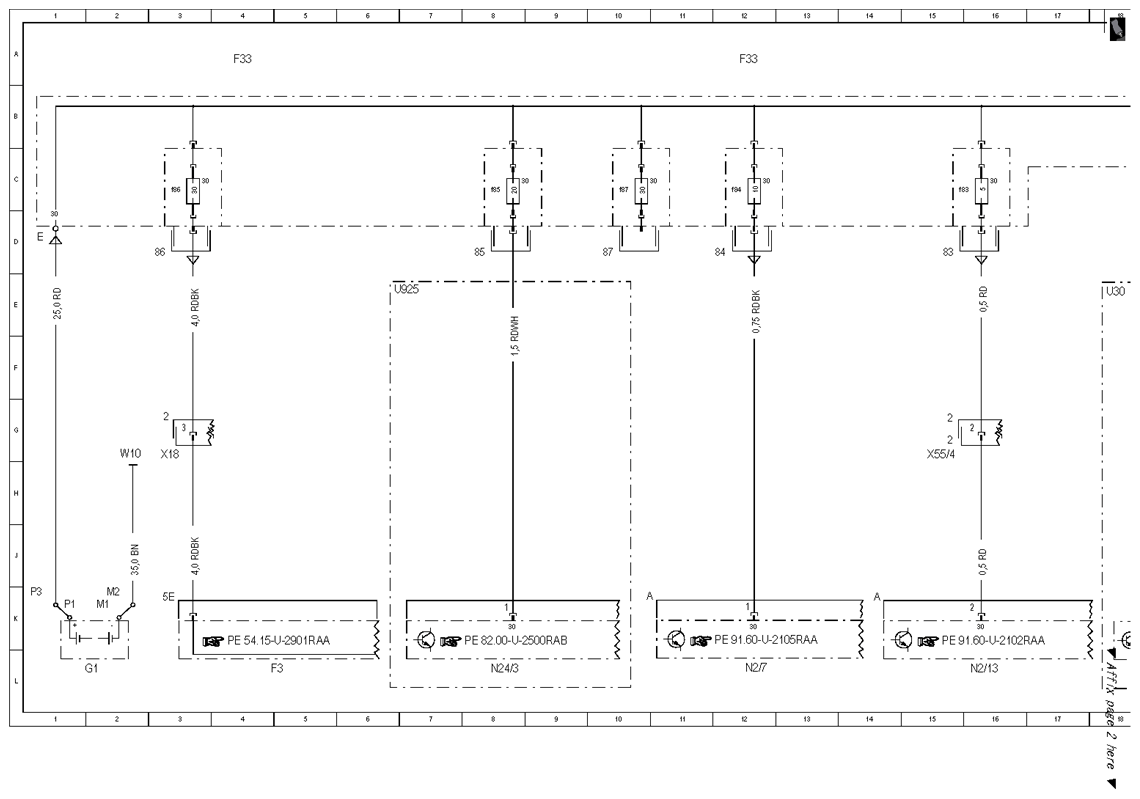

| F4 |
Load compartment fuse and relay box |
34 L |
| F58 |
Engine compartment fuse and relay box |
27 L |
| G1 |
Battery |
1 L |
| K27/7 |
AdBlue® supply relay |
30 L |
| N10 |
Front SAM control unit |
38 L |
| N10/8 |
Rear SAM control unit |
23 L |
| N2/13 |
WSS (Weight Sensing System) control unit |
16 L |
| N2/7 |
Restraint systems control unit |
12 L |
| N24/3 |
DC/AC converter control unit (115V socket) |
8 L |
| R22/3 |
PTC heater booster |
19 L |
| U1018 |
Valid for gasoline engine 276 |
25 E |
| U30 |
Valid for heater booster |
18 E |
| U925 |
Valid for 115V socket |
6 E |
| U931 |
Not valid for engine 642 BLUETEC |
25 E |
| U932 |
Valid for engine 642 BLUETEC |
29 E |
| W10 |
Ground (battery) |
2 H |
| W15/1 |
Ground (right footwell) |
37 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
22 H |
| X18 |
Interior/cockpit connector |
3 H |
| X18 |
Interior/cockpit connector |
32 H |
| X55/4 |
Right front seat contacting strip |
15 H |
| X55/4 |
Right front seat contacting strip |
26 H |
