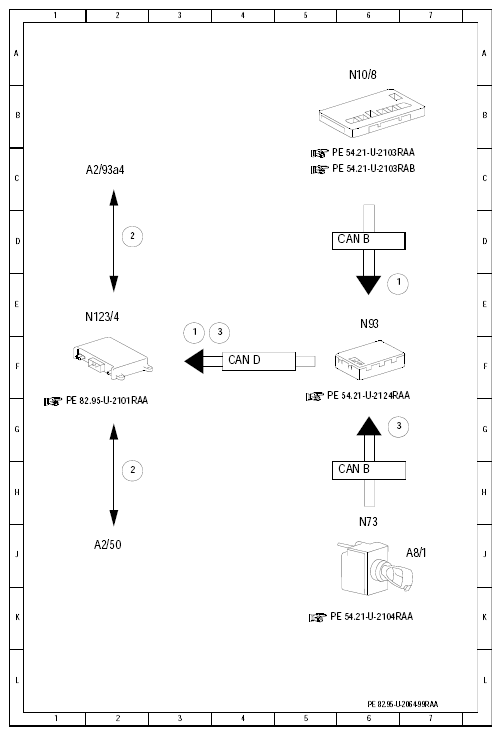

Electrical function schematic for vehicle location, function - PE82.95-U-2064-99RAA
| Code | Designation | Position |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 3 F |
| 1 | ATA [EDW] alarm, signal | 6 E |
| 2 | Telephone, signal | 2 H |
| 2 | Telephone, signal | 2 D |
| 3 | Circuit 15, status | 4 F |
| 3 | Circuit 15, status | 6 G |
| A2/50 | TELE AID backup antenna | 2 J |
| A2/93a4 | TELE AID antenna | 1 C |
| A8/1 | Transmitter key | 7 J |
| CAN B | Interior CAN | 5 D |
| CAN B | Interior CAN | 5 H |
| CAN D | Diagnostic CAN | 4 F |
| N10/8 | Rear SAM control unit | 6 A |
| N123/4 | Emergency call system control unit | 1 E |
| N73 | EIS [EZS] control unit | 6 J |
| N93 | Central gateway control unit | 6 E |
