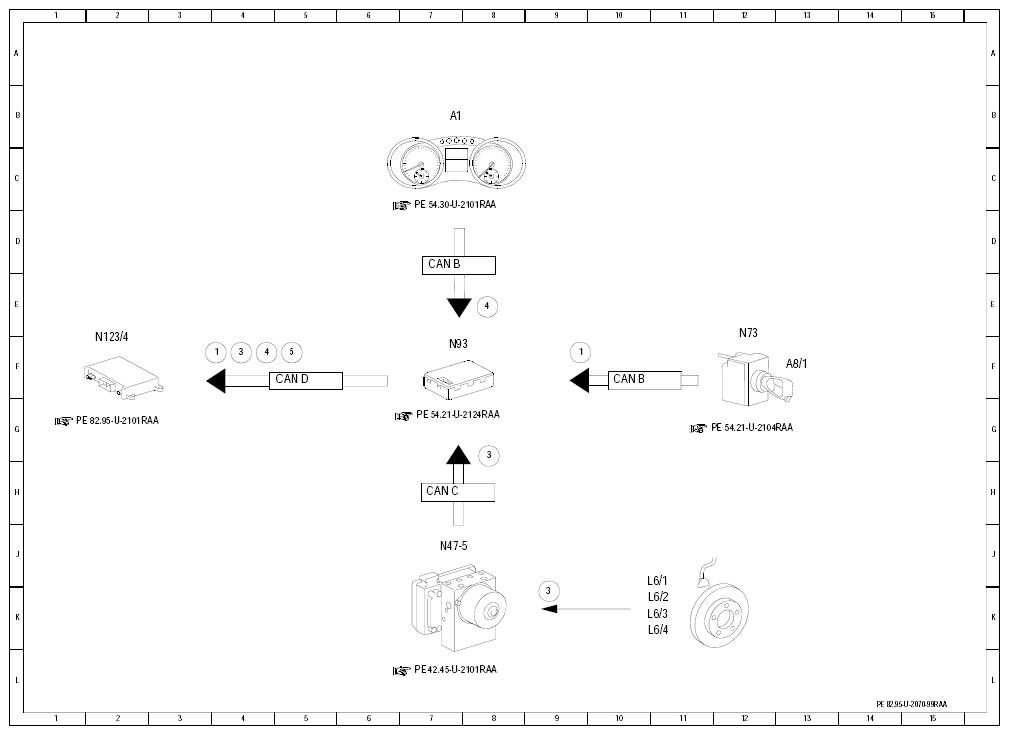

| 1 |
Circuit 15R, status |
4 F |
| 1 |
Circuit 15R, status |
9 F |
| 3 |
Wheel speed, signal |
4 F |
| 3 |
Wheel speed, signal |
8 H |
| 3 |
Wheel speed, signal |
9 K |
| 4 |
Travel distance, signal |
4 F |
| 4 |
Travel distance, signal |
8 E |
| 5 |
Direction of travel, signal |
5 F |
| A1 |
Instrument cluster |
7 B |
| A8/1 |
Transmitter key |
13 F |
| CAN B |
Interior CAN |
7 E |
| CAN B |
Interior CAN |
10 F |
| CAN C |
Engine compartment CAN |
7 H |
| CAN D |
Diagnostic CAN |
5 F |
| L6/1 |
Left front RPM sensor |
10 K |
| L6/2 |
Right front RPM sensor |
10 K |
| L6/3 |
Left rear RPM sensor |
10 K |
| L6/4 |
right rear RPM sensor |
10 K |
| N123/4 |
Emergency call system control unit |
2 F |
| N47-5 |
ESP control unit |
7 J |
| N73 |
EIS [EZS] control unit |
12 F |
| N93 |
Central gateway control unit |
7 F |
