| 1 |
Audio, signal |
4 H |
| 1 |
Audio, signal |
4 E |
| 1 |
Audio, signal |
4 B |
| 1 |
Audio, signal |
6 E |
| 1 |
Audio, signal |
7 J |
| 1 |
Audio, signal |
9 J |
| 1 |
Audio, signal |
14 J |
| 1 |
Audio, signal |
15 F |
| 2 |
Circuit 15R, status |
20 G |
| 3 |
Multifunction steering wheel button group, signal |
7 E |
| 3 |
Multifunction steering wheel button group, signal |
7 H |
| 3 |
Multifunction steering wheel button group, signal |
8 J |
| 3 |
Multifunction steering wheel button group, signal |
10 J |
| 3 |
Multifunction steering wheel button group, signal |
20 F |
| 3 |
Multifunction steering wheel button group, signal |
24 E |
| 3 |
Multifunction steering wheel button group, signal |
25 C |
| 4 |
Wake-up, signal |
15 G |
| 5 |
Video, signal |
15 H |
| A1 |
Instrument cluster |
24 F |
| A40/3 |
COMAND operating, display and control unit |
17 F |
| A8/1 |
Transmitter key |
24 K |
| CAN B |
Interior CAN |
21 H |
| CAN B |
Interior CAN |
21 G |
| CAN C |
Engine compartment CAN |
23 E |

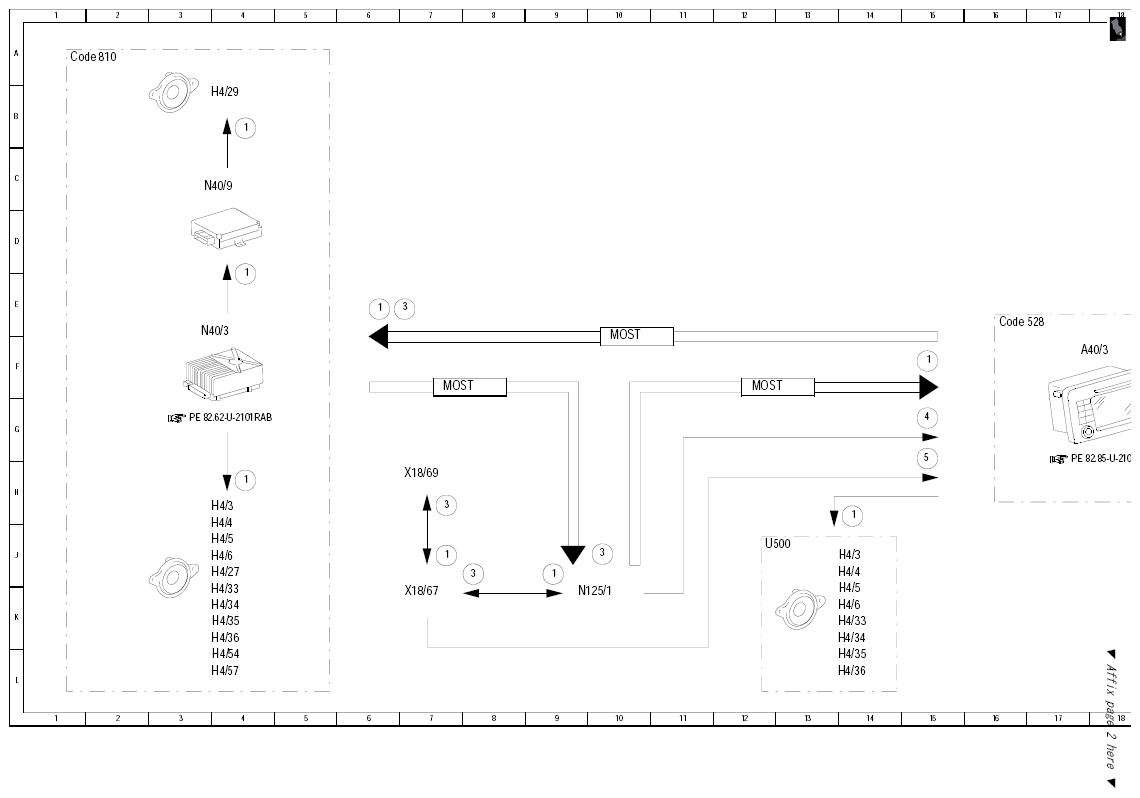

| Code 528 |
HIGH Class USA |
16 E |
| Code 810 |
Sound system |
1 A |
| H4/27 |
Center cockpit speaker (centerfill) |
3 J |
| H4/29 |
Subwoofer |
3 B |
| H4/3 |
Left rear door speaker |
3 H |
| H4/3 |
Left rear door speaker |
13 J |
| H4/33 |
Left front door tweeter |
3 K |
| H4/33 |
Left front door tweeter |
13 K |
| H4/34 |
Right front door tweeter |
3 K |
| H4/34 |
Right front door tweeter |
13 K |
| H4/35 |
Left rear door tweeter |
3 K |
| H4/35 |
Left rear door tweeter |
13 L |
| H4/36 |
Right rear door tweeter |
3 K |
| H4/36 |
Right rear door tweeter |
13 L |
| H4/4 |
Right rear door speaker |
3 J |
| H4/4 |
Right rear door speaker |
13 J |
| H4/5 |
Left front door speaker |
3 J |
| H4/5 |
Left front door speaker |
13 K |
| H4/54 |
Left rear surround speaker |
3 L |
| H4/57 |
Right rear surround speaker |
3 L |
| H4/6 |
Right front door speaker |
3 J |
| H4/6 |
Right front door speaker |
13 K |
| LIN E1 |
Steering LIN |
26 C |
| MOST |
Media Oriented System Transport |
7 F |
| MOST |
Media Oriented System Transport |
10 F |
| MOST |
Media Oriented System Transport |
12 F |
| N125/1 |
Media interface control unit |
9 K |
| N40/3 |
Amplifier for sound system |
3 F |
| N40/9 |
Subwoofer amplifier |
3 C |
| N73 |
EIS [EZS] control unit |
24 J |

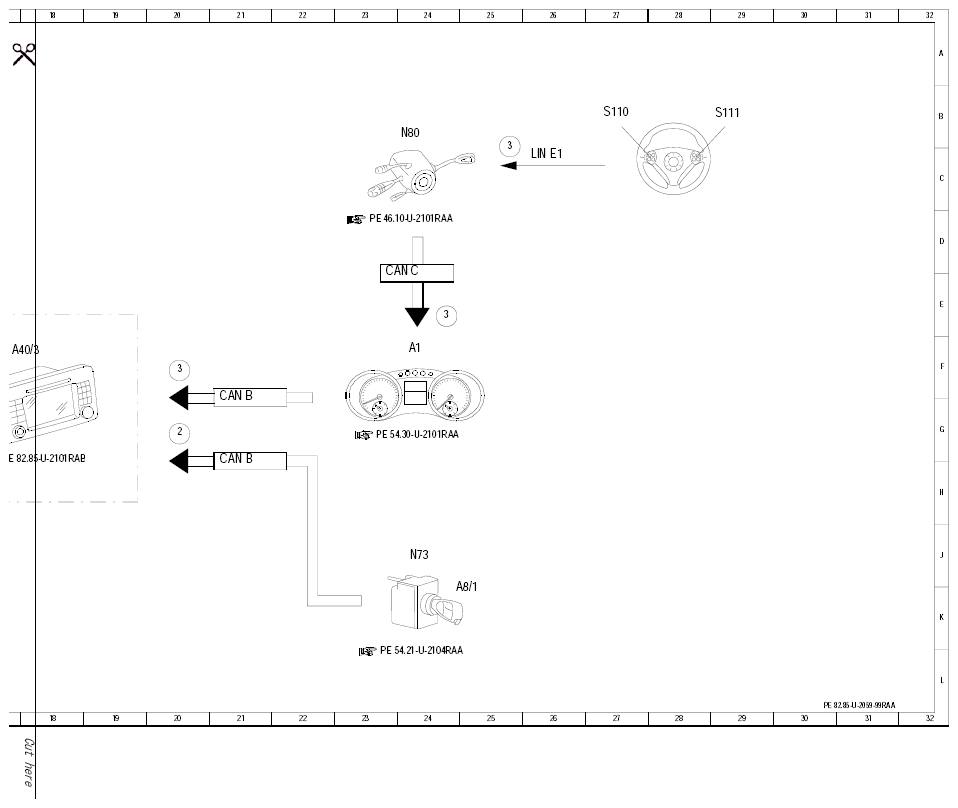

| N80 |
Steering column module |
24 B |
| S110 |
Left multifunction steering wheel button group |
27 B |
| S111 |
Right multifunction steering wheel button group |
29 B |
| U500 |
Not valid for Sound System |
12 J |
| X18/67 |
Media interface connector 1 |
7 K |
| X18/69 |
Media interface connector 2 |
7 H |
