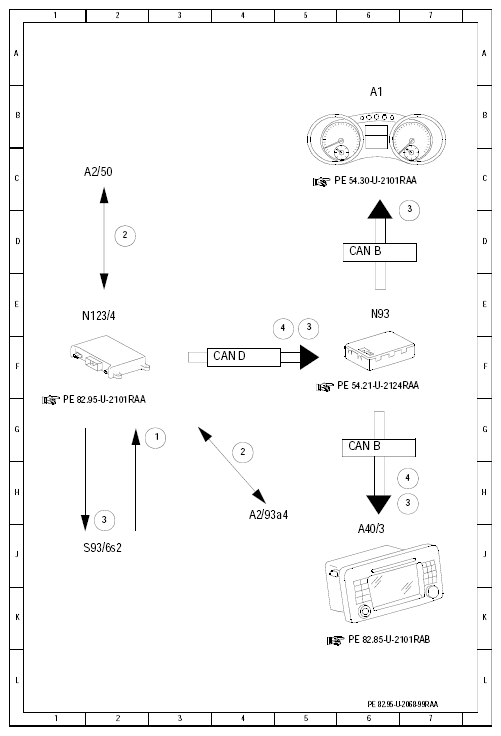

| 1 |
VCS ON button, signal |
3 G |
| 2 |
Telephone, signal |
2 D |
| 2 |
Telephone, signal |
4 G |
| 3 |
Status indication, signal |
2 J |
| 3 |
Status indication, signal |
5 E |
| 3 |
Status indication, signal |
7 H |
| 3 |
Status indication, signal |
7 D |
| 4 |
Audio unit display, message |
5 F |
| 4 |
Audio unit display, message |
7 H |
| A1 |
Instrument cluster |
6 B |
| A2/50 |
TELE AID backup antenna |
1 C |
| A2/93a4 |
TELE AID antenna |
4 J |
| A40/3 |
COMAND operating, display and control unit |
6 J |
| CAN B |
Interior CAN |
6 G |
| CAN B |
Interior CAN |
6 D |
| CAN D |
Diagnostic CAN |
3 F |
| N123/4 |
Emergency call system control unit |
1 E |
| N93 |
Central gateway control unit |
6 E |
| S93/6s2 |
Telediagnosis button |
1 J |
