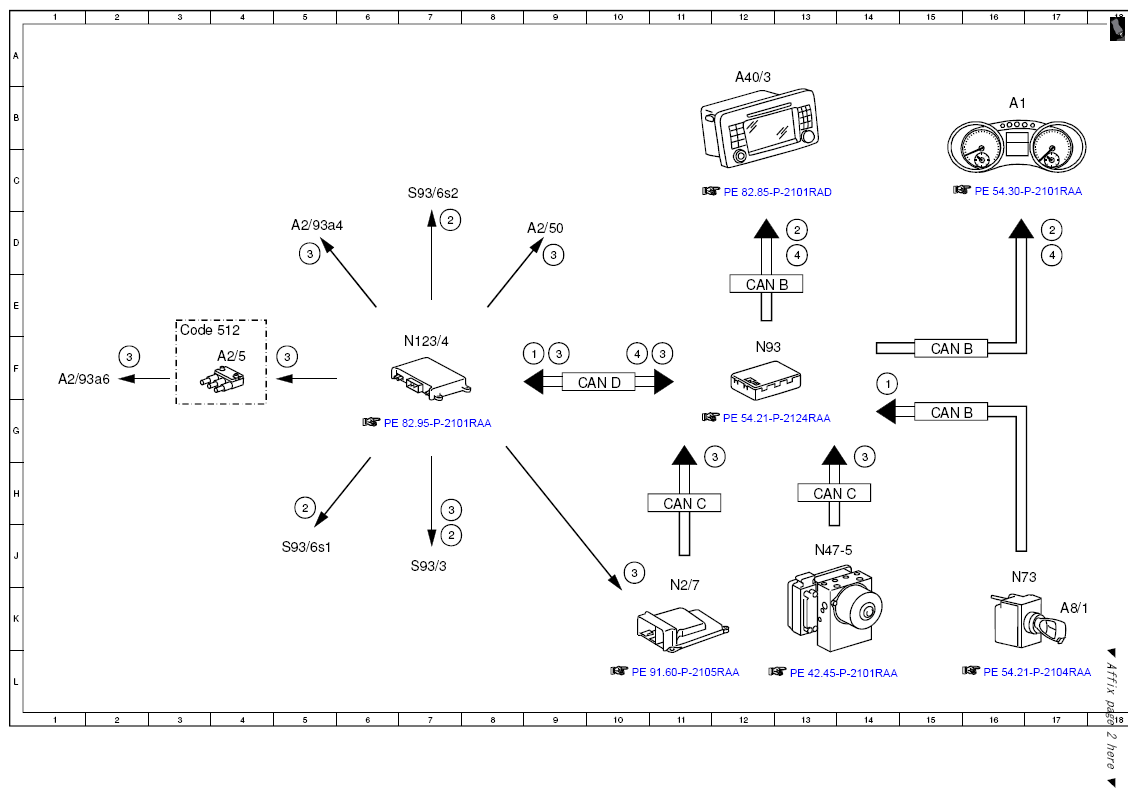

| 1 |
Circuit 15R, status |
9F |
| 1 |
Circuit 15R, status |
14F |
| 2 |
Status indication, signal |
5H |
| 2 |
Status indication, signal |
7J |
| 2 |
Status indication, signal |
7D |
| 2 |
Status indication, signal |
13D |
| 2 |
Status indication, signal |
17D |
| 3 |
Check signal, signal |
7H |
| 3 |
Check signal, signal |
10J |
| 3 |
Check signal, signal |
12G |
| 3 |
Check signal, signal |
5F |
| 3 |
Check signal, signal |
2F |
| 3 |
Check signal, signal |
5D |
| 3 |
Check signal, signal |
9D |
| 3 |
Check signal, signal |
9F |
| 3 |
Check signal, signal |
11F |
| 3 |
Check signal, signal |
14G |
| 4 |
Audio unit display, message |
10F |
| 4 |
Audio unit display, message |
13D |
| 4 |
Audio unit display, message |
17D |
| A1 |
Instrument cluster |
16B |
| A2/5 |
GPS antenna splitter |
4F |
| A2/50 |
TELE AID backup antenna |
9D |
| A2/93a4 |
TELE AID antenna |
5D |
| A2/93a6 |
GPS antenna |
1F |
| A40/3 |
COMAND operating, display and control unit |
12A |
| A8/1 |
Transmitter key |
17K |
| CAN B |
Interior CAN |
13E |
| CAN B |
Interior CAN |
15F |
| CAN B |
Interior CAN |
15G |
| CAN C |
Engine compartment CAN |
12H |
| CAN C |
Engine compartment CAN |
14H |
| CAN D |
Diagnostic CAN |
10F |
| Code 512 |
COMAND APS with DVD changer |
4E |
| N123/4 |
Emergency call system control unit |
7F |
| N2/7 |
Restraint systems control unit |
11K |
| N47-5 |
ESP control unit |
13J |
| N73 |
EIS [EZS] control unit |
16J |
| N93 |
Central gateway control unit |
12F |
| S93/3 |
SOS pushbutton switch |
7J |
| S93/6s1 |
MB-Info button |
5J |
| S93/6s2 |
Telediagnosis button |
7C |
