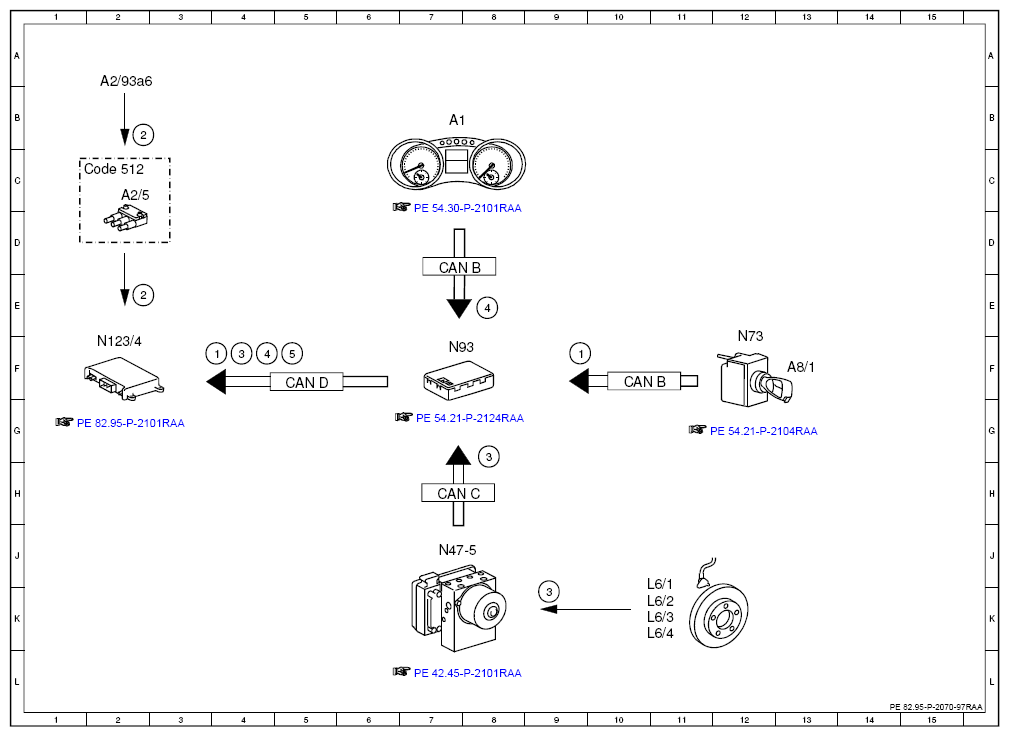

| 1 |
Circuit 15R, status |
4F |
| 1 |
Circuit 15R, status |
9F |
| 2 |
GPS, signal |
2B |
| 2 |
GPS, signal |
2E |
| 3 |
Wheel speed, signal |
8G |
| 3 |
Wheel speed, signal |
4F |
| 3 |
Wheel speed, signal |
9K |
| 4 |
Travel distance, signal |
4F |
| 4 |
Travel distance, signal |
8E |
| 5 |
Direction of travel, signal |
5F |
| A1 |
Instrument cluster |
7B |
| A2/5 |
GPS antenna splitter |
2C |
| A2/93a6 |
GPS antenna |
2A |
| A8/1 |
Transmitter key |
13F |
| CAN B |
Interior CAN |
8E |
| CAN B |
Interior CAN |
11F |
| CAN C |
Engine compartment CAN |
7H |
| CAN D |
Diagnostic CAN |
5F |
| Code 512 |
COMAND APS with DVD changer |
2C |
| L6/1 |
Left front RPM sensor |
10K |
| L6/2 |
Right front RPM sensor |
10K |
| L6/3 |
Left rear RPM sensor |
10K |
| L6/4 |
right rear RPM sensor |
10K |
| N123/4 |
Emergency call system control unit |
2F |
| N47-5 |
ESP control unit |
7J |
| N73 |
EIS [EZS] control unit |
12F |
| N93 |
Central gateway control unit |
7F |
