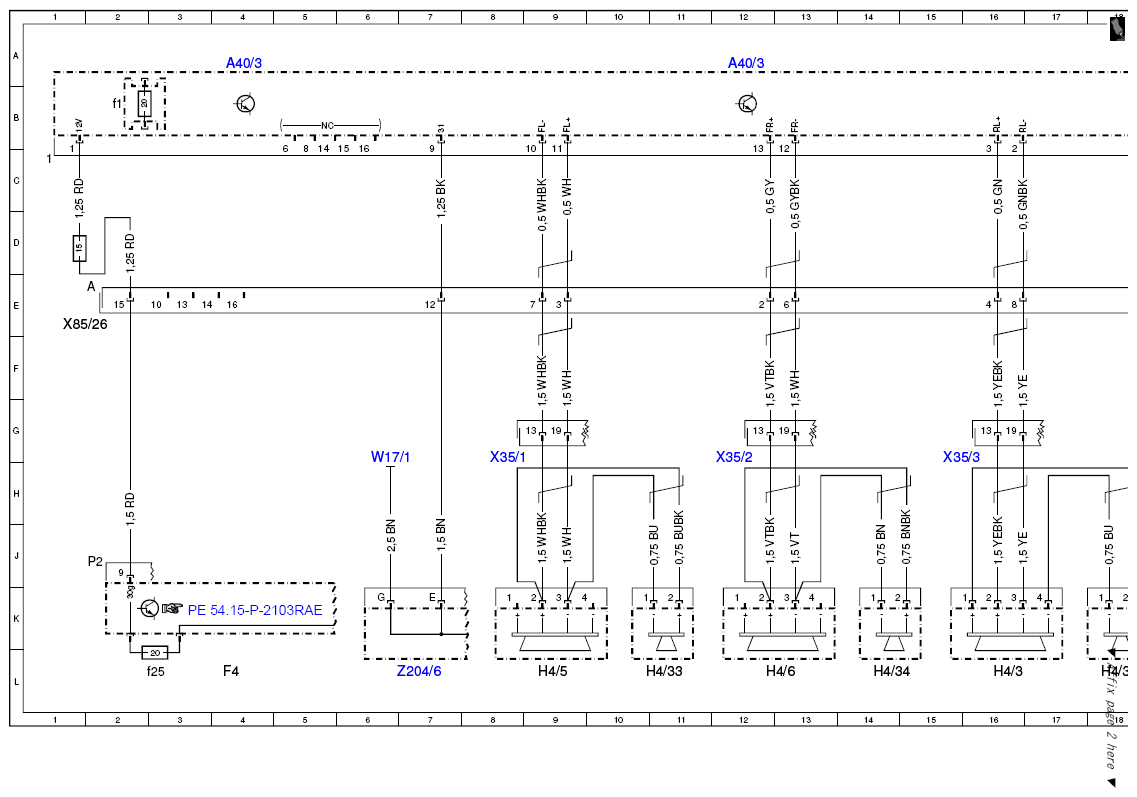

| A0 |
Color code key |
56L |

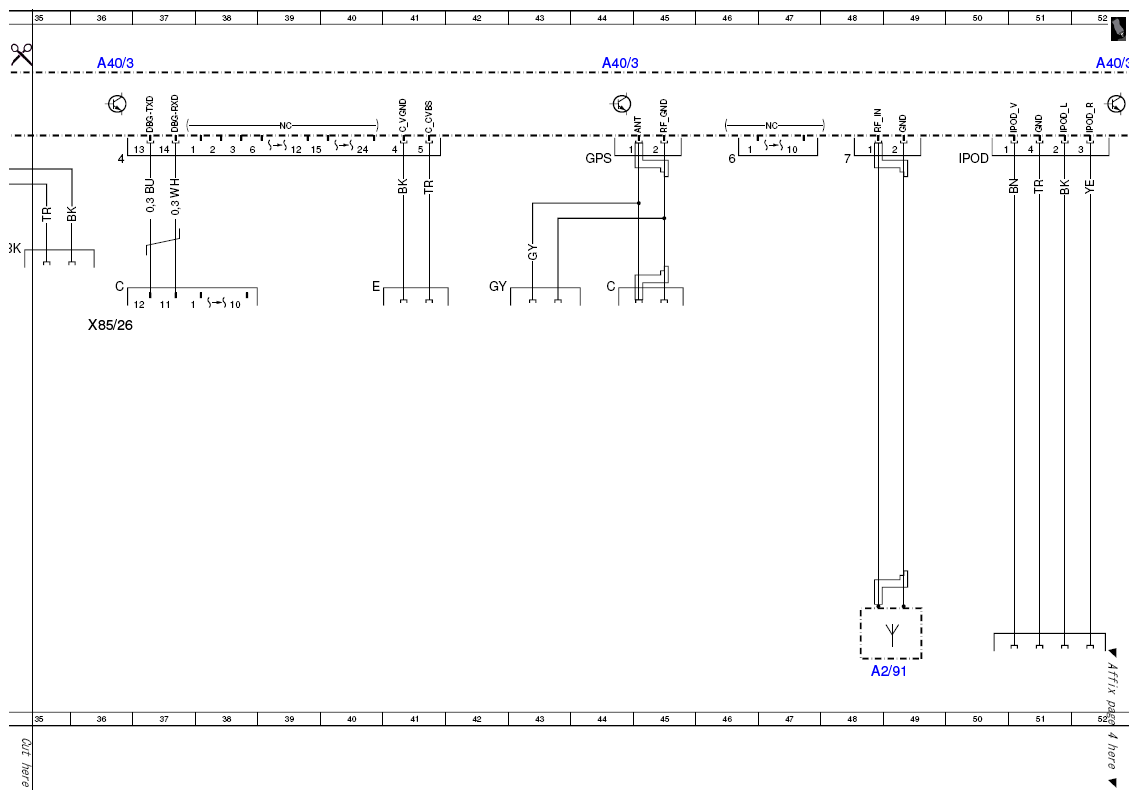

| A2/91 |
Bluetooth antenna |
48L |
| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
12A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
52A |
| A40/3f1 |
COMAND electrical fuse |
2B |

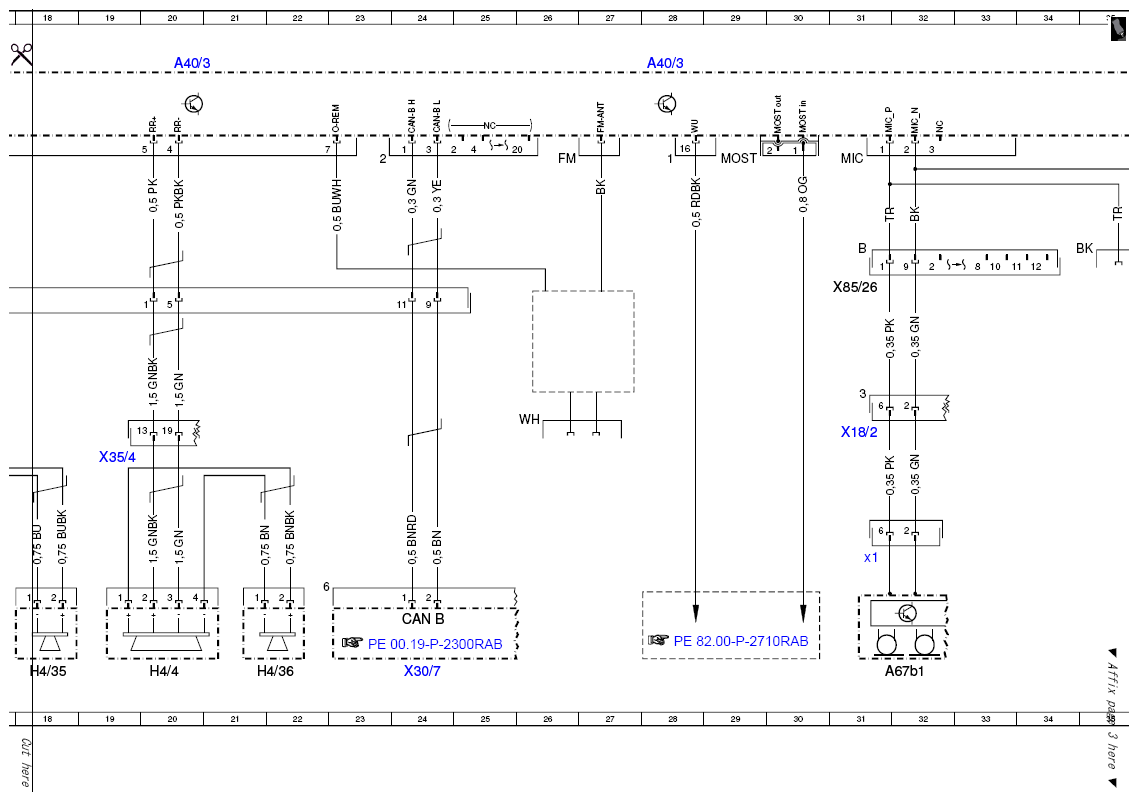

| A67b1 |
Hands-free system microphone group |
32L |
| A67b1x1 |
Hands-free system microphone group connector |
31J |
| CAN B |
Interior CAN |
24K |
| F4 |
Load compartment fuse and relay box |
4L |
| F4f25 |
Fuse 25 |
3L |
| H4/3 |
Left rear door speaker |
16L |
| H4/33 |
Left front door tweeter |
11L |
| H4/34 |
Right front door tweeter |
14L |
| H4/35 |
Left rear door tweeter |
18L |
| H4/36 |
Right rear door tweeter |
22L |
| H4/4 |
Right rear door speaker |
20L |
| H4/5 |
Left front door speaker |
9L |
| H4/6 |
Right front door speaker |
12L |
| W17/1 |
Ground (left rear seat) |
6H |
| X18/2 |
Interior/roof connector |
31G |
| X30/7 |
Voltage distributor (CAN) connector |
24L |
| X35/1 |
Left front door separation point |
8H |
| X35/2 |
Right front door separation point |
12H |
| X35/3 |
Left rear door separation point |
16H |
| X35/4 |
Right rear door separation point |
19H |
| X85/26 |
Radio adapter wiring harness electrical connector |
2E |
| X85/26 |
Radio adapter wiring harness electrical connector |
36E |
| X85/26 |
Radio adapter wiring harness electrical connector |
31E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
7L |
