| A0 |
Color code key |
64A |
| A2/19 |
FM rear window antenna amplifier |
53L |
| A2/5 |
GPS antenna splitter |
42L |

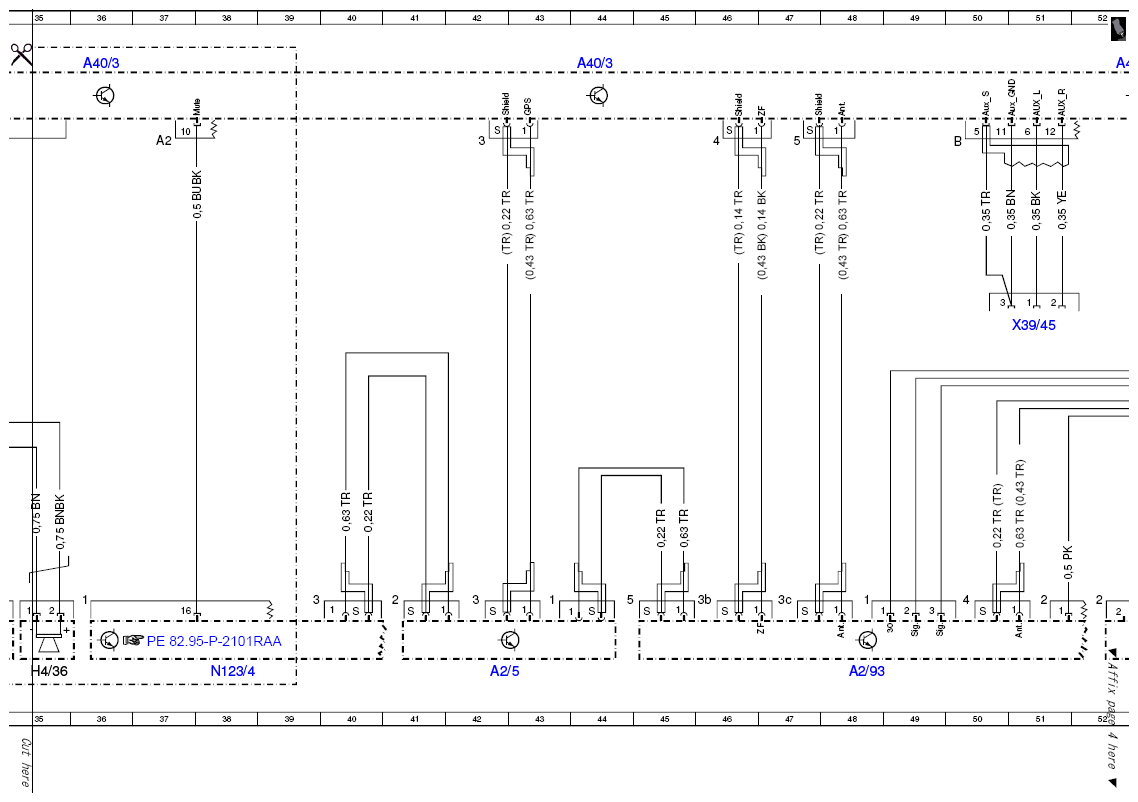

| A2/93 |
Roof antenna module |
48L |
| A40/3 |
COMAND operating, display and control unit |
12A |
| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
52A |
| A40/3f1 |
COMAND electrical fuse |
56B |
| A40/4 |
DVD player |
18L |

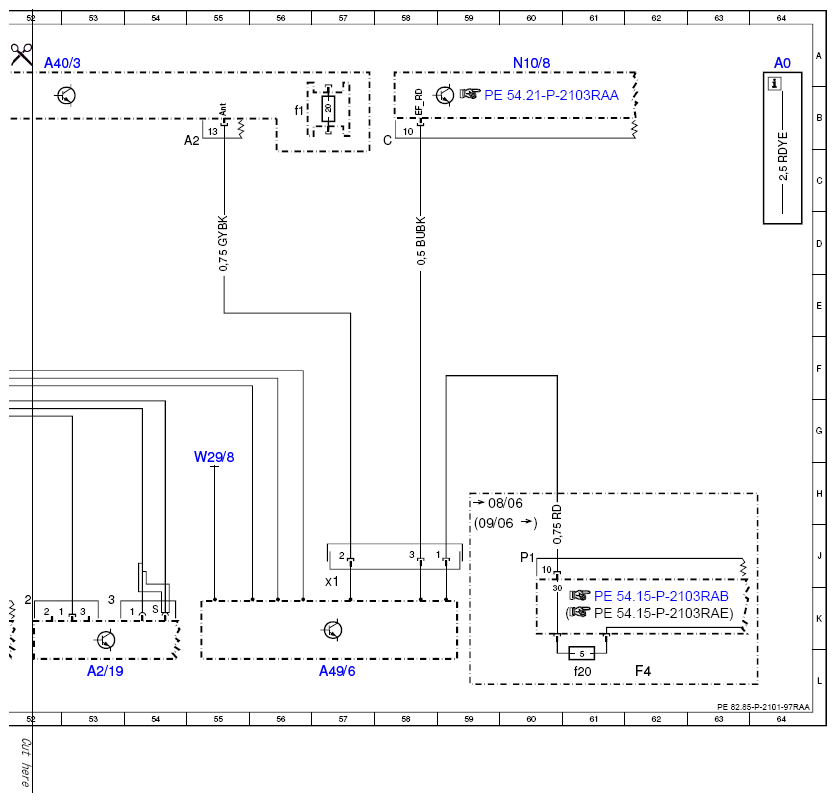

| A49/6 |
Radio antenna interference filter |
57L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
57J |

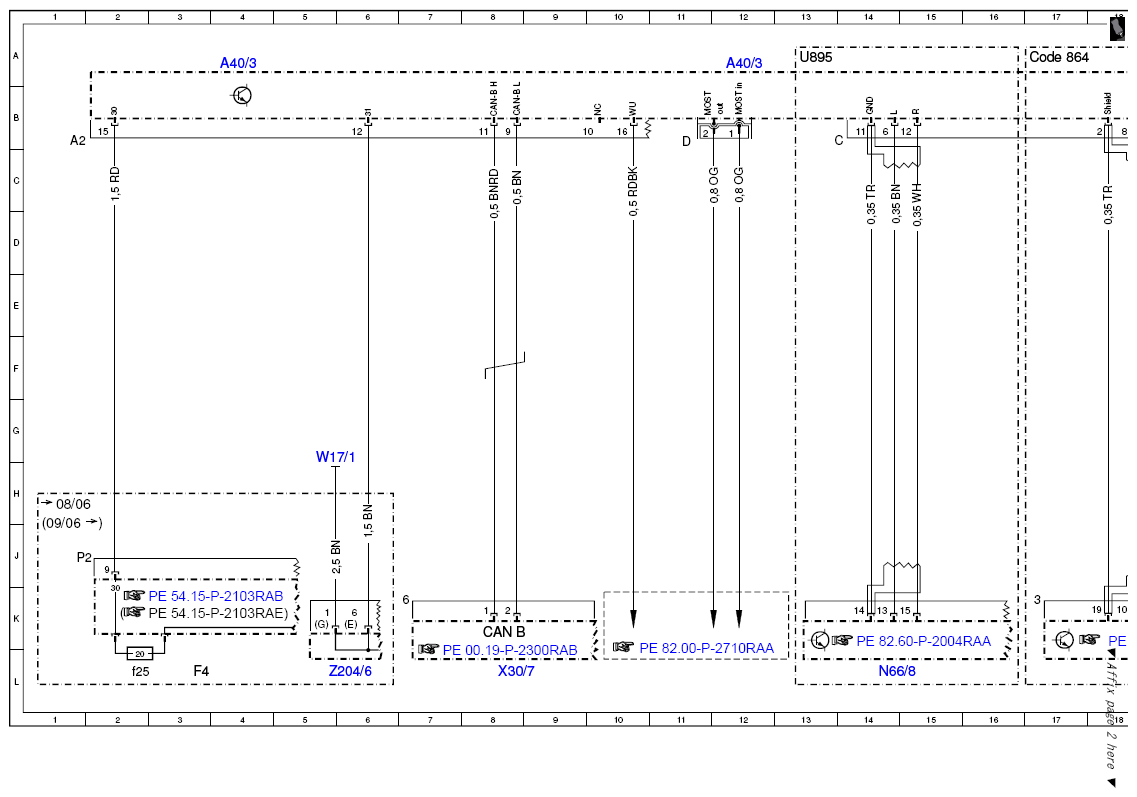

| CAN B |
Interior CAN |
8K |
| Code 218 |
Backup camera |
21A |
| Code 864 |
Rear entertainment system |
17A |
| F4 |
Load compartment fuse and relay box |
3L |
| F4 |
Load compartment fuse and relay box |
62L |
| F4f20 |
Fuse 20 |
61L |
| F4f25 |
Fuse 25 |
2L |

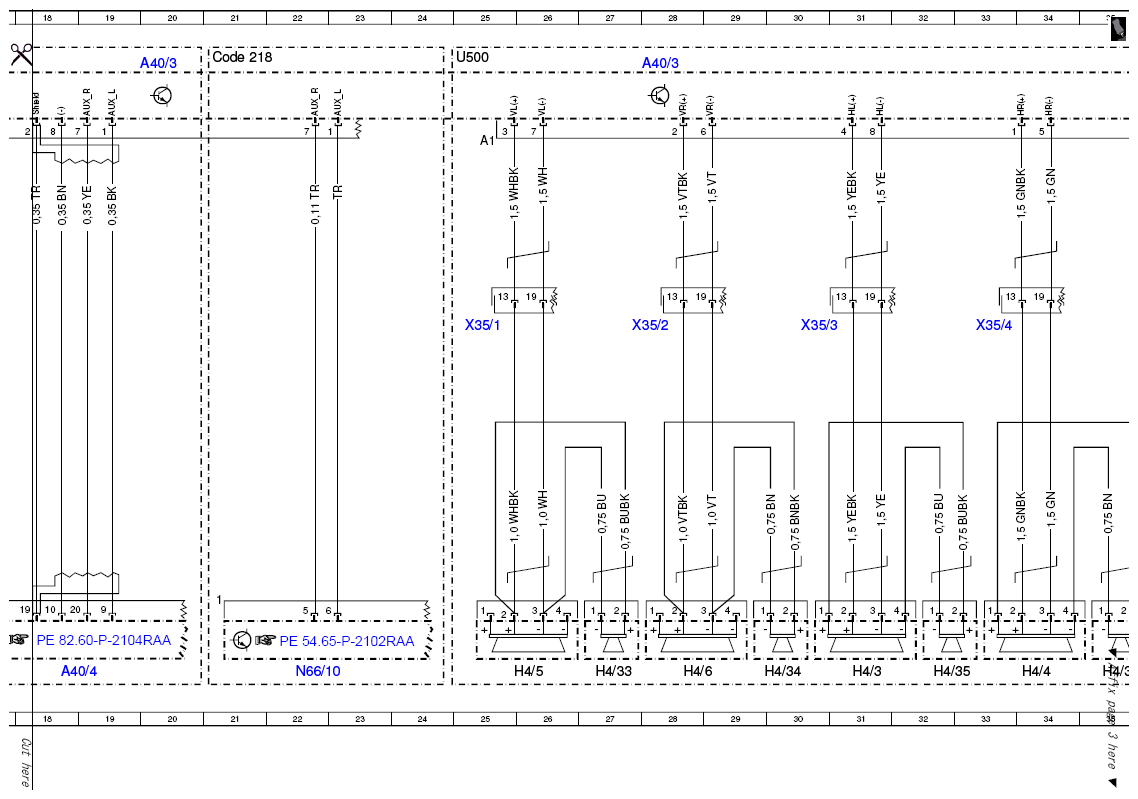

| H4/3 |
Left rear door speaker |
31L |
| H4/33 |
Left front door tweeter |
27L |
| H4/34 |
Right front door tweeter |
30L |
| H4/35 |
Left rear door tweeter |
32L |
| H4/36 |
Right rear door tweeter |
35L |
| H4/4 |
Right rear door speaker |
34L |
| H4/5 |
Left front door speaker |
26L |
| H4/6 |
Right front door speaker |
28L |
| N10/8 |
Rear SAM control unit |
60A |
| N123/4 |
Emergency call system control unit |
38L |
| N66/10 |
Backup camera voltage supply module |
22L |
| N66/8 |
Rear audio control unit |
14L |
| U500 |
Not valid for Sound System |
25A |
| U895 |
Valid for rear audio |
13A |
| W17/1 |
Ground (left rear seat) |
5H |
| W29/8 |
Ground (left D-pillar) |
55H |
| X30/7 |
Voltage distributor (CAN) connector |
8L |
| X35/1 |
Left front door separation point |
25E |
| X35/2 |
Right front door separation point |
28E |
| X35/3 |
Left rear door separation point |
30E |
| X35/4 |
Right rear door separation point |
33E |
| X39/45 |
Walkman separation point |
51E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
6L |
