| B25/6 |
Sound amplifier microphone |
33 L |
| B25/6x1 |
Sound amplifier microphone connector |
32 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f35 |
Fuse 35 |
2 L |
| H4/27 |
Center cockpit speaker (centerfill) |
23 L |
| H4/29 |
Subwoofer |
28 L |
| H4/29x1 |
Subwoofer connector |
27 H |
| H4/3 |
Left rear door speaker |
17 L |
| H4/33 |
Left front door tweeter |
12 L |
| H4/34 |
Right front door tweeter |
15 L |
| H4/35 |
Left rear door tweeter |
18 L |
| H4/36 |
Right rear door tweeter |
21 L |
| H4/4 |
Right rear door speaker |
20 L |
| H4/5 |
Left front door speaker |
11 L |
| H4/54 |
Left rear surround speaker |
25 L |
| H4/57 |
Right rear surround speaker |
26 L |
| H4/6 |
Right front door speaker |
14 L |
| N123/4 |
Emergency call system control unit |
7 L |

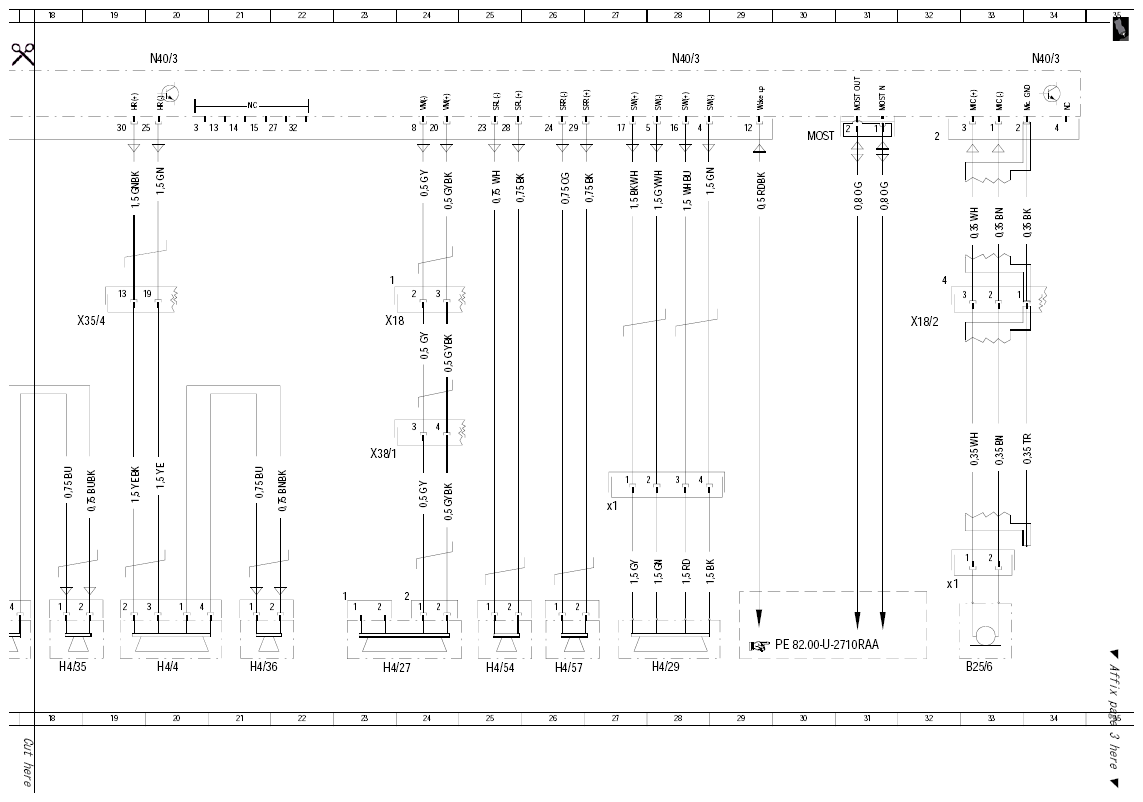

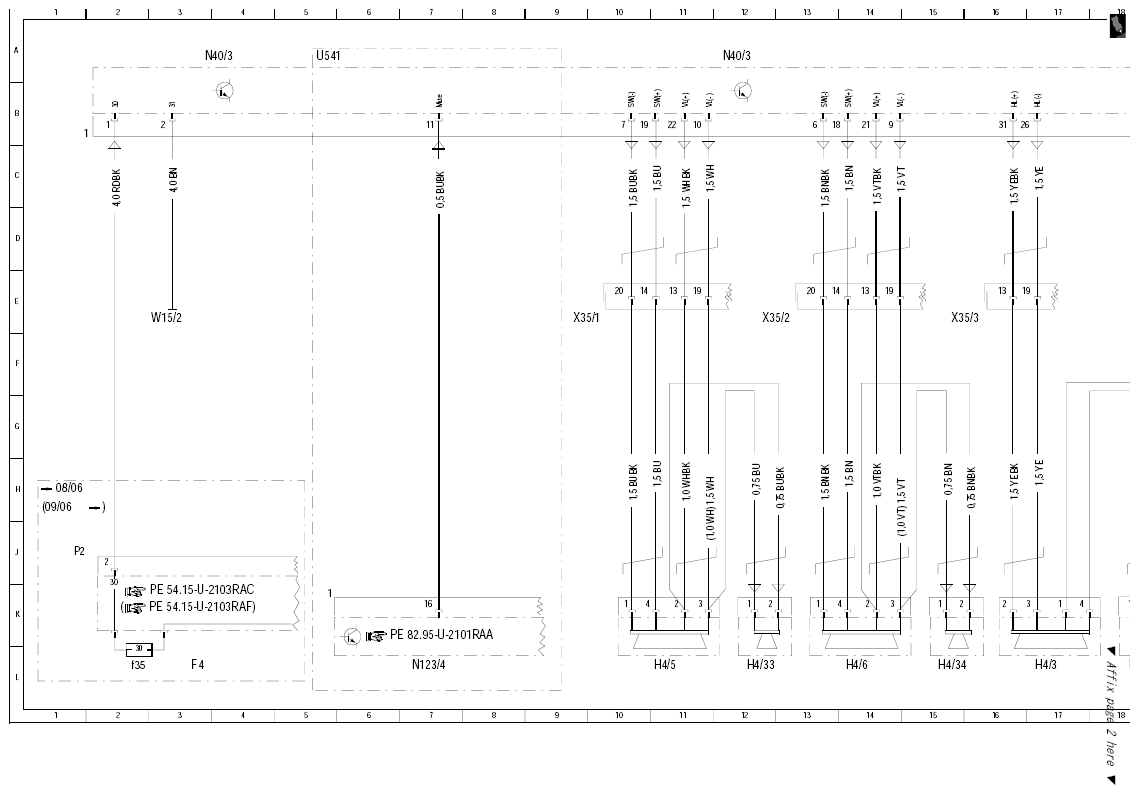

| N40/3 |
Amplifier for sound system |
3 A |
| N40/3 |
Amplifier for sound system |
12 A |
| N40/3 |
Amplifier for sound system |
20 A |
| N40/3 |
Amplifier for sound system |
28 A |
| N40/3 |
Amplifier for sound system |
34 A |
| U541 |
Valid for TELE AID emergency call system |
5 A |
| W15/2 |
Ground (left footwell) |
3 E |
| X18 |
Interior/cockpit connector |
23 E |
| X18/2 |
Interior/roof connector |
32 E |
| X35/1 |
Left front door separation point |
9 E |
| X35/2 |
Right front door separation point |
12 E |
| X35/3 |
Left rear door separation point |
15 E |
| X35/4 |
Right rear door separation point |
18 E |
| X38/1 |
Centerfill speaker intermediate connector |
23 H |
