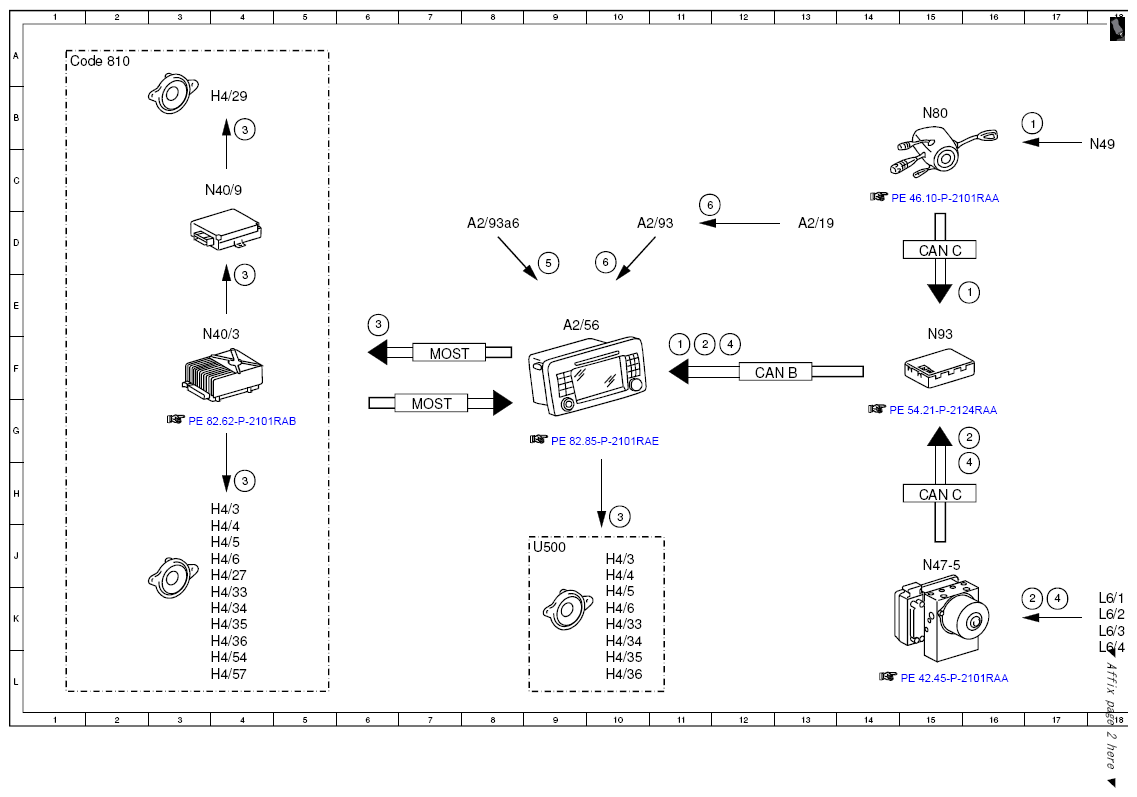

| 1 |
Steering angle sensor, signal |
17B |
| 1 |
Steering angle sensor, signal |
11F |
| 1 |
Steering angle sensor, signal |
16E |
| 2 |
Wheel speed, signal |
12F |
| 2 |
Wheel speed, signal |
16G |
| 2 |
Wheel speed, signal |
17K |
| 3 |
Audio, signal |
4H |
| 3 |
Audio, signal |
10H |
| 3 |
Audio, signal |
4E |
| 3 |
Audio, signal |
4B |
| 3 |
Audio, signal |
6E |
| 4 |
Wheel rotation direction, signal |
13F |
| 4 |
Wheel rotation direction, signal |
16H |
| 4 |
Wheel rotation direction, signal |
17K |
| 5 |
GPS, signal |
9D |
| 6 |
AM/FM antenna, signal |
10D |
| 6 |
AM/FM antenna, signal |
11C |
| A2/19 |
FM rear window antenna amplifier |
13D |
| A2/56 |
Radio and navigation unit |
9E |
| A2/93 |
Roof antenna module |
10D |
| A2/93a6 |
GPS antenna |
8D |
| CAN B |
Interior CAN |
13F |
| CAN C |
Engine compartment CAN |
15D |
| CAN C |
Engine compartment CAN |
15H |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
10J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
10K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
10K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
10L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
10L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
10J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
10K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
10K |
| L6/1 |
Left front RPM sensor |
18K |
| L6/2 |
Right front RPM sensor |
18K |
| L6/3 |
Left rear RPM sensor |
18K |
| L6/4 |
right rear RPM sensor |
18L |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N47-5 |
ESP control unit |
15J |
| N49 |
Steering angle sensor |
18B |
| N80 |
Steering column module |
15B |
| N93 |
Central gateway control unit |
15F |
| U500 |
Not valid for Sound System |
9J |
