Electrical function diagram for navigation mode (COMAND), function - PE82.85-P-2063-97RAB

Code	Designation	Position
1	VCS ON button, signal	5F
1	VCS ON button, signal	9E
1	VCS ON button, signal	10B
2	VCS OFF button, signal	5F
2	VCS OFF button, signal	9D
2	VCS OFF button, signal	11B
3	Instrument cluster, message	7F
4	Hands-free system microphone group, signal	4E
A1	Instrument cluster	8E
A40/3	COMAND operating, display and control unit	3E
A67b1	Hands-free system microphone group	3C
CAN B	Interior CAN	6F
CAN C	Engine compartment CAN	8D
LIN E1	Steering LIN	11B
N80	Steering column module	8B
S110s4	VCS [SBS] off button	12A
S111s4	VCS [SBS] on button	14A

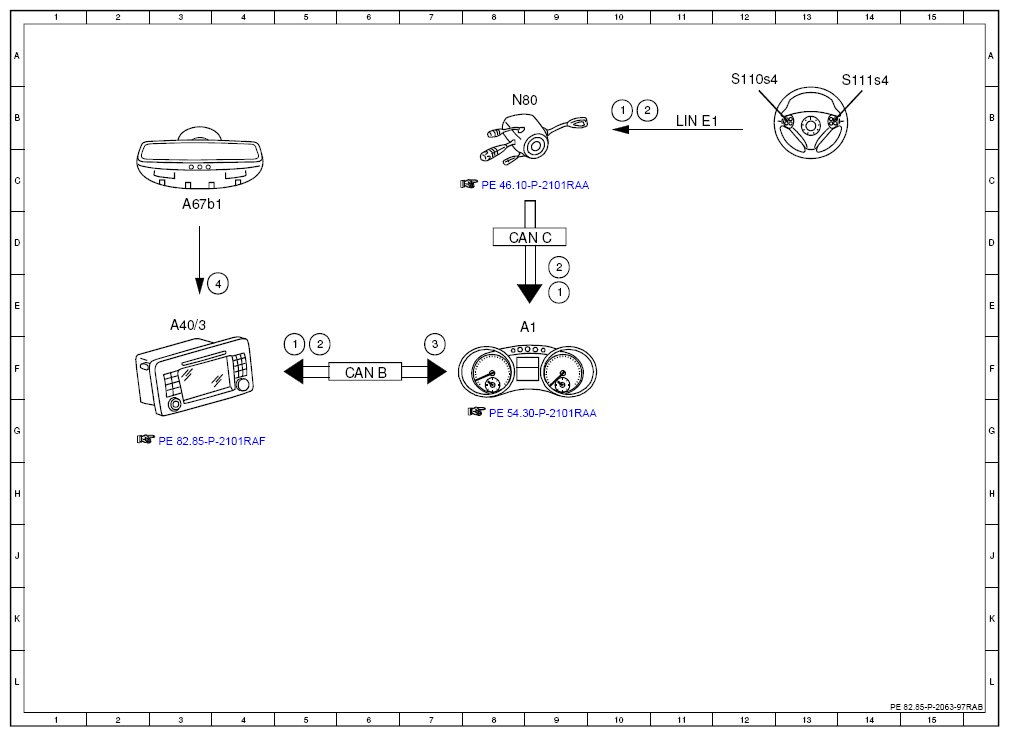

Fig 1: Navigation Mode (COMAND) - Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
