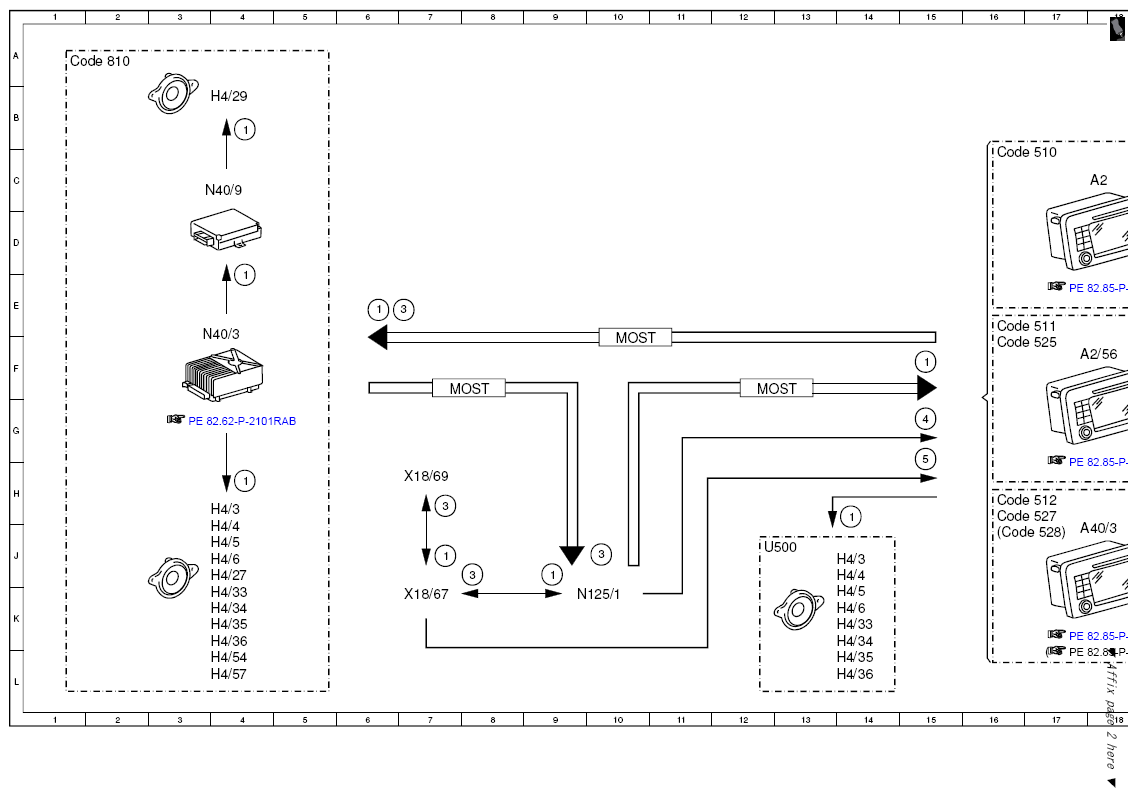

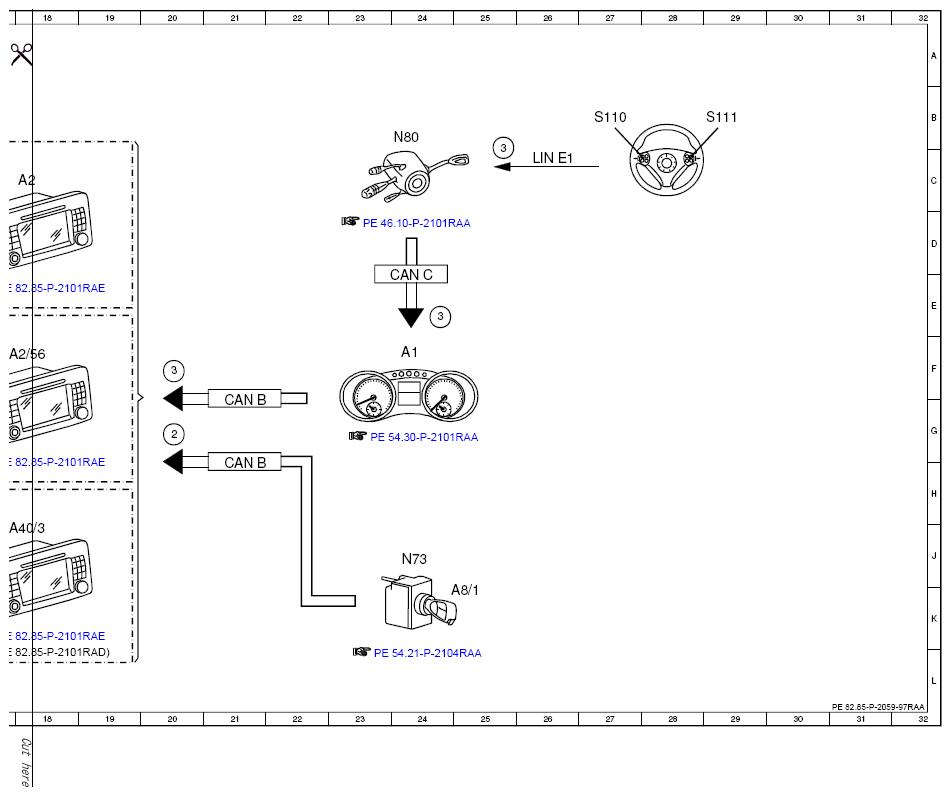

| 1 |
Audio, signal |
4H |
| 1 |
Audio, signal |
7J |
| 1 |
Audio, signal |
9J |
| 1 |
Audio, signal |
14H |
| 1 |
Audio, signal |
4E |
| 1 |
Audio, signal |
4B |
| 1 |
Audio, signal |
15F |
| 1 |
Audio, signal |
7E |
| 2 |
Circuit 15R, status |
20G |
| 3 |
Multifunction steering wheel button group, signal |
8J |
| 3 |
Multifunction steering wheel button group, signal |
7H |
| 3 |
Multifunction steering wheel button group, signal |
25C |
| 3 |
Multifunction steering wheel button group, signal |
7E |
| 3 |
Multifunction steering wheel button group, signal |
20F |
| 3 |
Multifunction steering wheel button group, signal |
24E |
| 3 |
Multifunction steering wheel button group, signal |
25C |
| 4 |
Wake-up, signal |
15G |
| 5 |
Video, signal |
15H |
| A1 |
Instrument cluster |
24F |
| A2 |
Radio |
18C |
| A2/56 |
Radio and navigation unit |
18F |
| A40/3 |
COMAND operating, display and control unit |
18J |
| A8/1 |
Transmitter key |
25K |
| CAN B |
Interior CAN |
21F |
| CAN B |
Interior CAN |
21G |
| CAN C |
Engine compartment CAN |
24D |
| Code 510 |
Audio 20 with CD changer |
16C |
| Code 511 |
Audio 50 APS incl. DVD changer |
16E |
| Code 512 |
COMAND APS with DVD changer |
16H |
| Code 525 |
Audio 50 APS radio (CD) |
16E |
| Code 527 |
COMAND APS (with navigation) |
16H |
| Code 528 |
HIGH Class USA |
16J |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
13J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
13K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
13K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
13L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
13L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
13J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
13K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
13K |
| LIN E1 |
Steering LIN |
26C |
| MOST |
Media Oriented System Transport |
10E |
| MOST |
Media Oriented System Transport |
8F |
| MOST |
Media Oriented System Transport |
13F |
| N125/1 |
Media interface control unit |
10K |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N73 |
EIS [EZS] control unit |
24J |
| N80 |
Steering column module |
24B |
| S110 |
Left multifunction steering wheel button group |
27B |
| S111 |
Right multifunction steering wheel button group |
29B |
| U500 |
Not valid for Sound System |
12J |
| X18/67 |
Media interface connector 1 |
7K |
| X18/69 |
Media interface connector 2 |
7H |
