Remove/install xenon headlamp control unit - AR82.10-P-4632RT
MODEL 251 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination up to model year 2011
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard due to highly flammable substances in the area of damaged xenon bulbs Risk of injury due to UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| 1 | Switch off ignition and remove the transmitter key from the EZS control unit | Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|

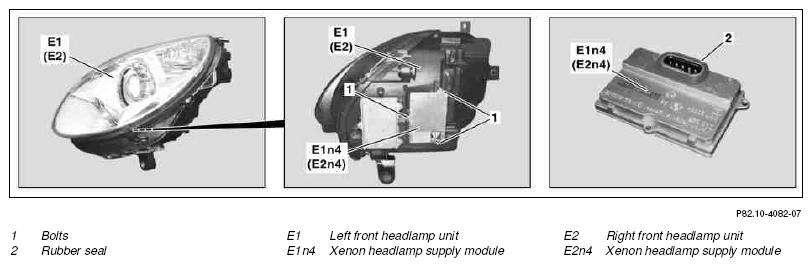

| 2 | Remove left front lamp unit (E1) or right front lamp unit (E2) | AR82.10-P-4730RT | |
| 3 | Remove bolt (1) | ||
| 4 | Pry off xenon headlamp supply module (E1n4, E2n4) | ||
| 5 | Install in the reverse order | ||
| Checking | |||
| 6 | Adjust the zero position of the xenon headlamps | STAR DIAGNOSIS system | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 7 | Check the setting of the xenon headlamps and adjust if necessary |
