Remove/install stowage tray for mobile phone - AR82.70-P-8931RT

MODEL 190

MODEL 251 Center console, front

Shown on model 251

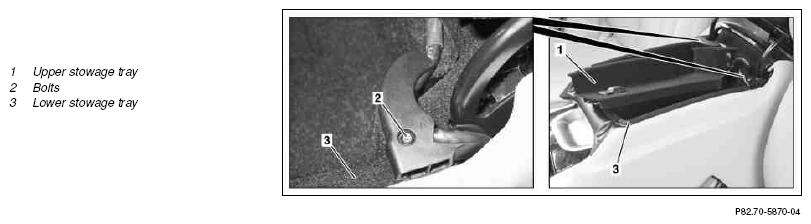

Fig 1: Identifying Mobile Phone Stowage Tray Remove/Install Components - Shown On Model 251

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bracket for mobile phone	MODEL 251 with CODE 386 (Comfort telephony) MODEL 251 with CODE 388 (Telephone "Handy", UPCI system)	AR82.70-P-8918RT
2	Remove stowage tray at top (1)	Do not disconnect electrical connector.
3	Remove screws/bolts (2)
4	Remove lower stowage tray (3)
5	Install in the reverse order
